2-3
DSR-2000A/2000AP
Inner member
Inner member
Screws (B4 x 6)
Screws (B4 x 6)

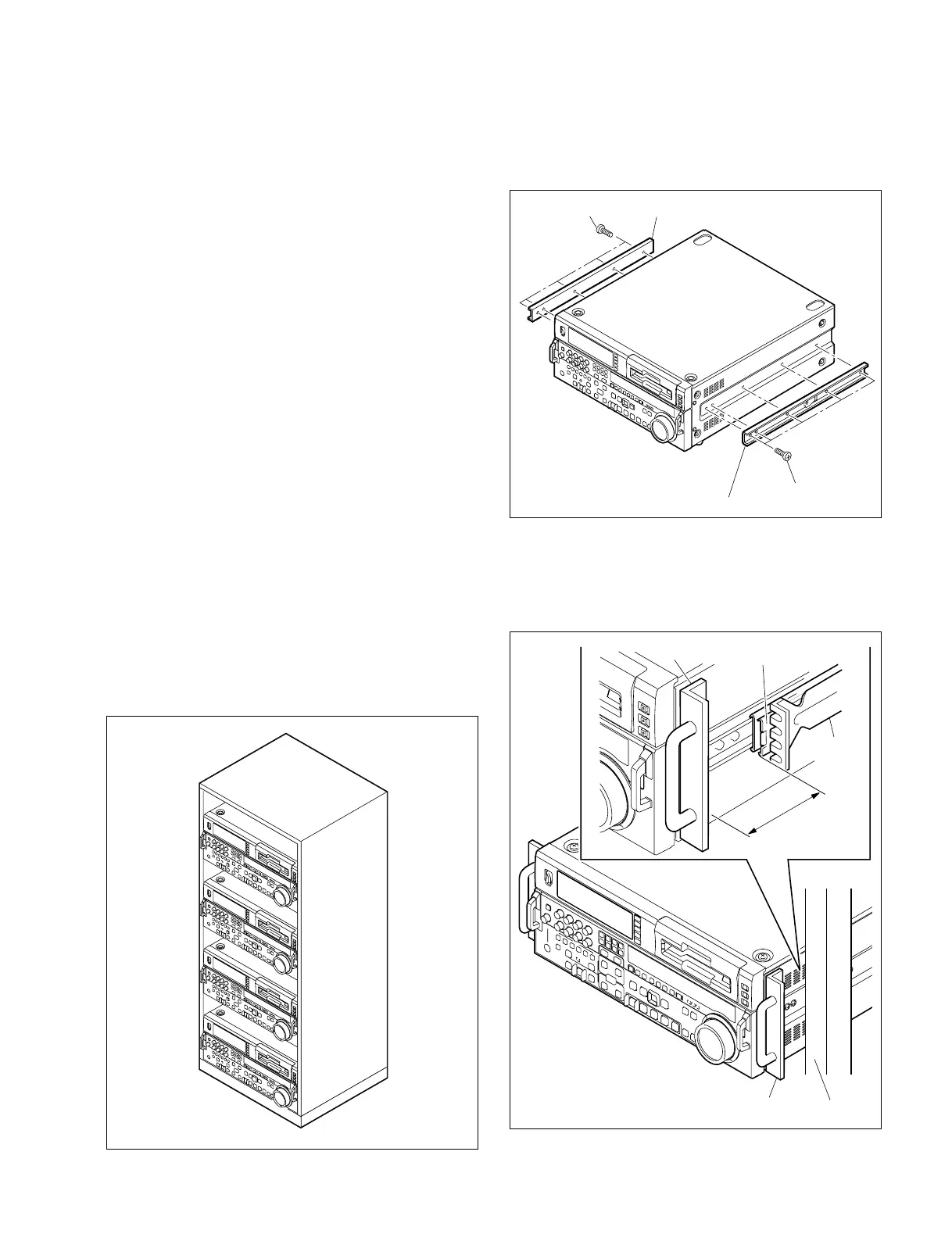

2-7. Rack Mounting
The unit can be mounted in a 19-inch standard rack.
It is recommended to use the following kit.
Rack Mount Kit : RMM-130
(optional accessory)
or
RACK-MOUNT SLIDES : MODEL 305 slide length 22
inch (ACCURIDE)
Note for rack mounting :
. When several VTRs are mounted in a rack, it is recom-
mended to install a fan for ventilation. Good air circula-
tion is essential to prevent internal heat build-up in a
rack.
. The unit must be kept in an operating temperature range
from +5 d to +40 dC.
. Never remove an upper panel and lower panel during
rack mounting.
. Be sure to secure the rack to the floor to avoid accidents
when a unit is pulled out.
. Connect long enough cables on the connector panel,
considering that the unit is pulled out.
. Maximum two units can be mounted in a stack. For three
units of more, keep a space for one unit between the
mounted units, using a rack. The space should be 44 mm
or more in height.
L-angle
Rack
L-angle
Outer member
Bracket
50 mm
+5
_0
1. Remove the four screws on right and left side panels.
And install the Inner Members of the rails to the right
and left side panels with the screws removed.
2. Install the Outer Member Brackets of the slide rails to
the rack. Adjust the distance from the edge of the slide
rail to the outside of the rack so that it meets the
required specification.
To Next Page
