10-8
DSR-2000A/2000AP
Specification

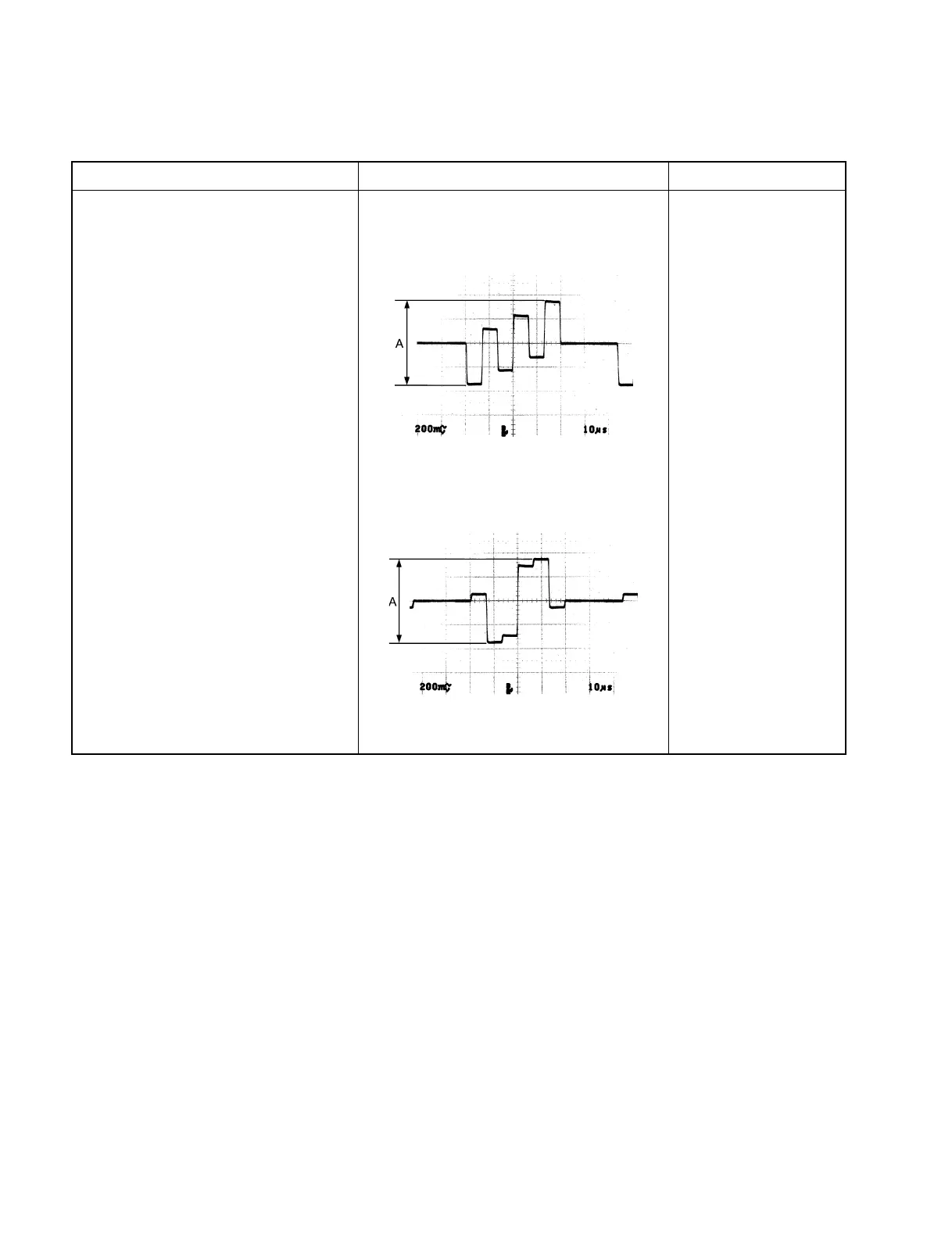

COMPONENT B-Y OUT (75 Z terminated)
TRIG : REF. VIDEO
COMPONENT R-Y OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec. A = 0.700 ±0.007 V (98 ±1 IRE)
Conditions for adjustment
[For NTSC]
WFM or Oscilloscope
.
MENU ITEM 713-2, OUTPUT LEVEL ; 7.5 %
. PB mode
75 % Color bars/XH5-1A2
[For PAL]
WFM or Oscilloscope
. PB mode
100 % Color bars/XH5-1AP2
Connection 1
Adjustment
1RV805/VPR-62A (L-3)
10-3-5. PB COMPONENT B-Y/R-Y OUT Level Adjustment
To Next Page
