4-16
DSR-2000A/2000AP
4-3. Countermeasure in an Emergency
4-3-1. How to Take Out the Cassette Whose
Tape is Slacked (MANUAL EJECT)
(1) Turn the power off.
(2) Remove the top panel. (Refer to Section 3-3.)
(3) Remove the front panel. (Refer to Section 3-3.)

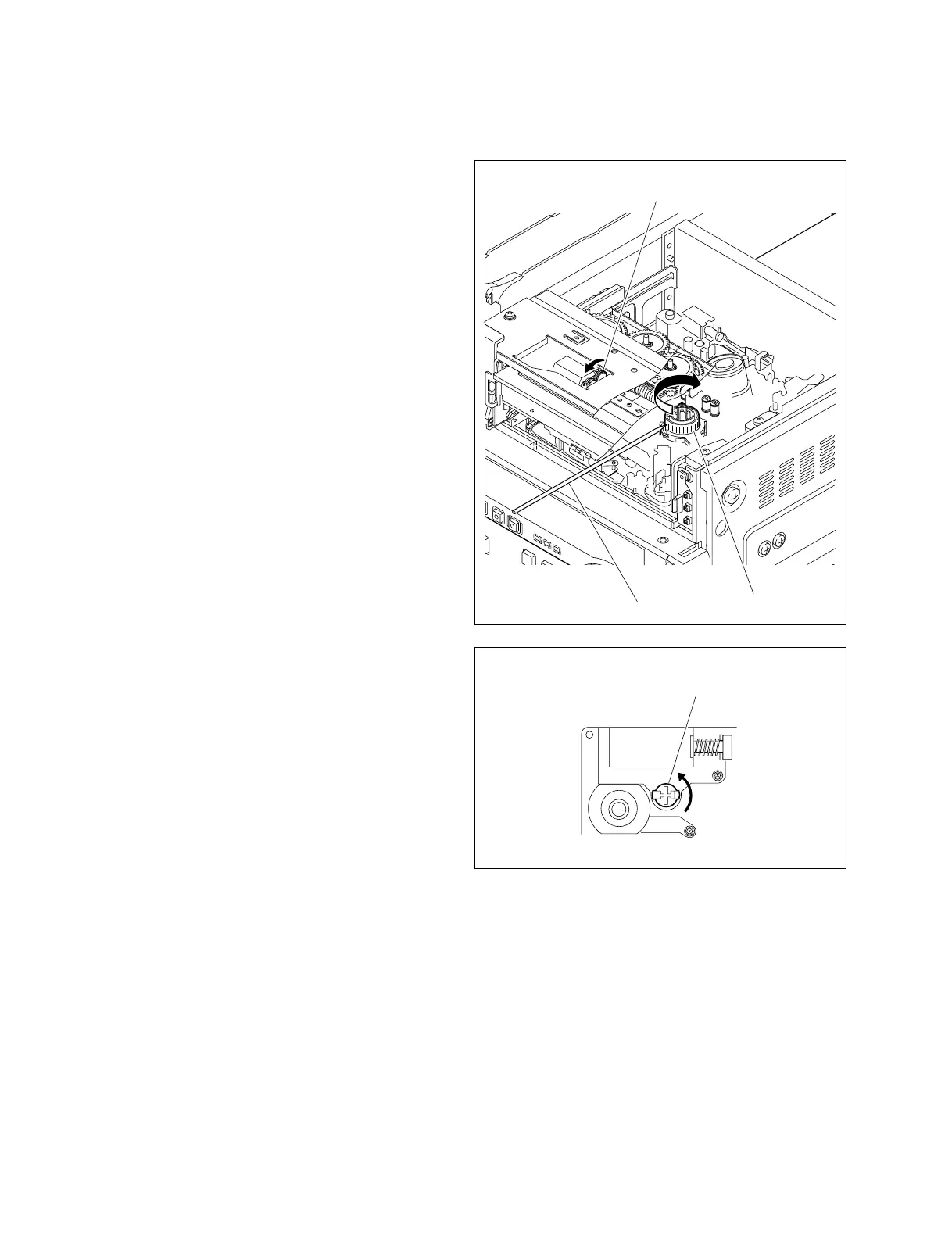

(4) Turn the manual eject gear A (red) in the arrow
direction with a phillips screwdriver while pressing the
gear. When the tape comes to slack, turn the reel table
from the front side utilizing a skewer and wind the
tape.
m
. In a case of standard cassette and M cassette :
Turn the reel table (T)
. In a case of mini cassette :
Turn the reel table (S)
(5) Repeat step (4) until each guide comes to the unthread-
ing end position and furthermore the tape completely
returns into the cassette.
(6) Turn the manual eject gear B (red) in the arrow
direction until the cassette compartment completely
comes into cassette out state.
Manual eject gear A (red)
Skewer
Reel table (T)
Manual eject gear B (red)
To Next Page
