3-11
DSR-2000A/2000AP
Reattaching
(1) Insert the cassette compartment in the reverse direction
of arrow B and align the three holes and the notch of
the cassette compartment with the four positioning
pins of the chassis.
n
Use care not to involve a lead wire of the reel shift
motor when reattaching the cassette compartment.
(2) Insert the cassette compartment holding assembly in
the reverse direction of arrow A.
Fit the hole and notch of the assembly on the shafts a
and b of the cassette compartment respectively and fix
it using the three screws while drawing the cassette
compartment holding assembly in the C direction.
(3) Reconnect the flexible card wire to the connector
(CN1) of the CC-83 board.
(4) Reattach the top panel. (Refer to Section 3-3.)
3-4. Removal/Reattachment of the
Cassette Compartment
Removing
(1) Remove the top panel. (Refer to Section 3-3.)
(2) Disconnect the flexible card wire from the connector
(CN1) of the CC-83 board.
[Reference][Reference]
[Reference][Reference]
[Reference]
Hanging the flexible card wire disconnected at the
hook on the top of the PC guide B provides an easy
performance to the succeeding steps.
(3)
Unscrew the three screws and lift off the cassette
compartment holding assembly in the arrow A direction.
n
The screws do not come off the cassette compartment
holding assembly, because of a stopper attached to the
screw.
Do not forcibly remove the screws from the top panel
(4) Remove the cassette compartment in the arrow B
direction.

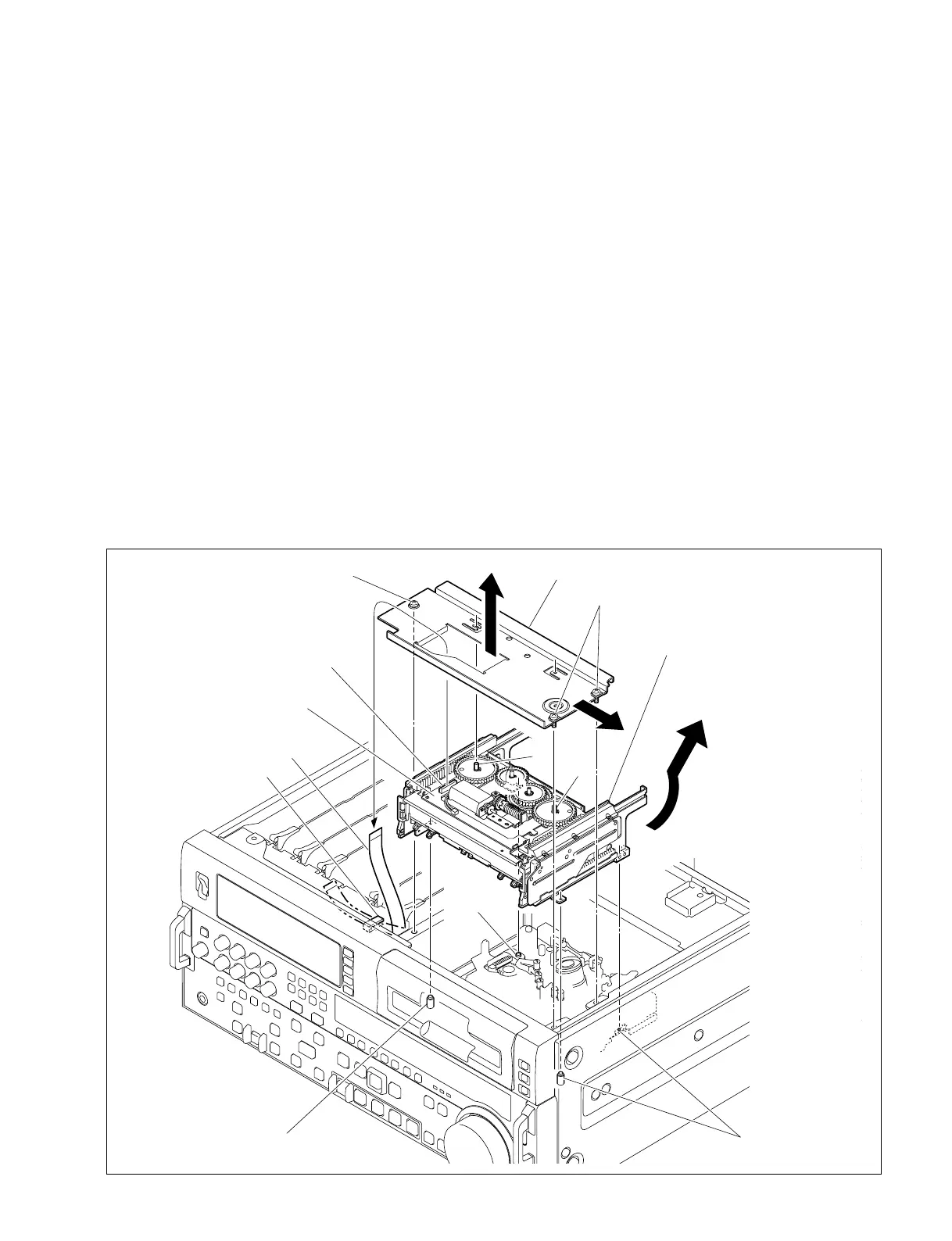

Cassette compartment retainer assembly
Cassette compartment
Fixing screws (with stopper)
Fixing screw
(with stopper)
CC-83 board
Connector
(CN1)
Flexible card wire
Hook
B
C
A
b
a
Positioning pins
Positioning pin
Positioning
pin
To Next Page
