Sony DSR-2000AP Service Manual

10-9
DSR-2000A/2000AP
Specification
VIDEO OUT 1 (75 Z terminated)
TRIG : REF. VIDEO
Spec. A = 1.00 ±0.01 V (140.0 ±1.5 IRE)
A

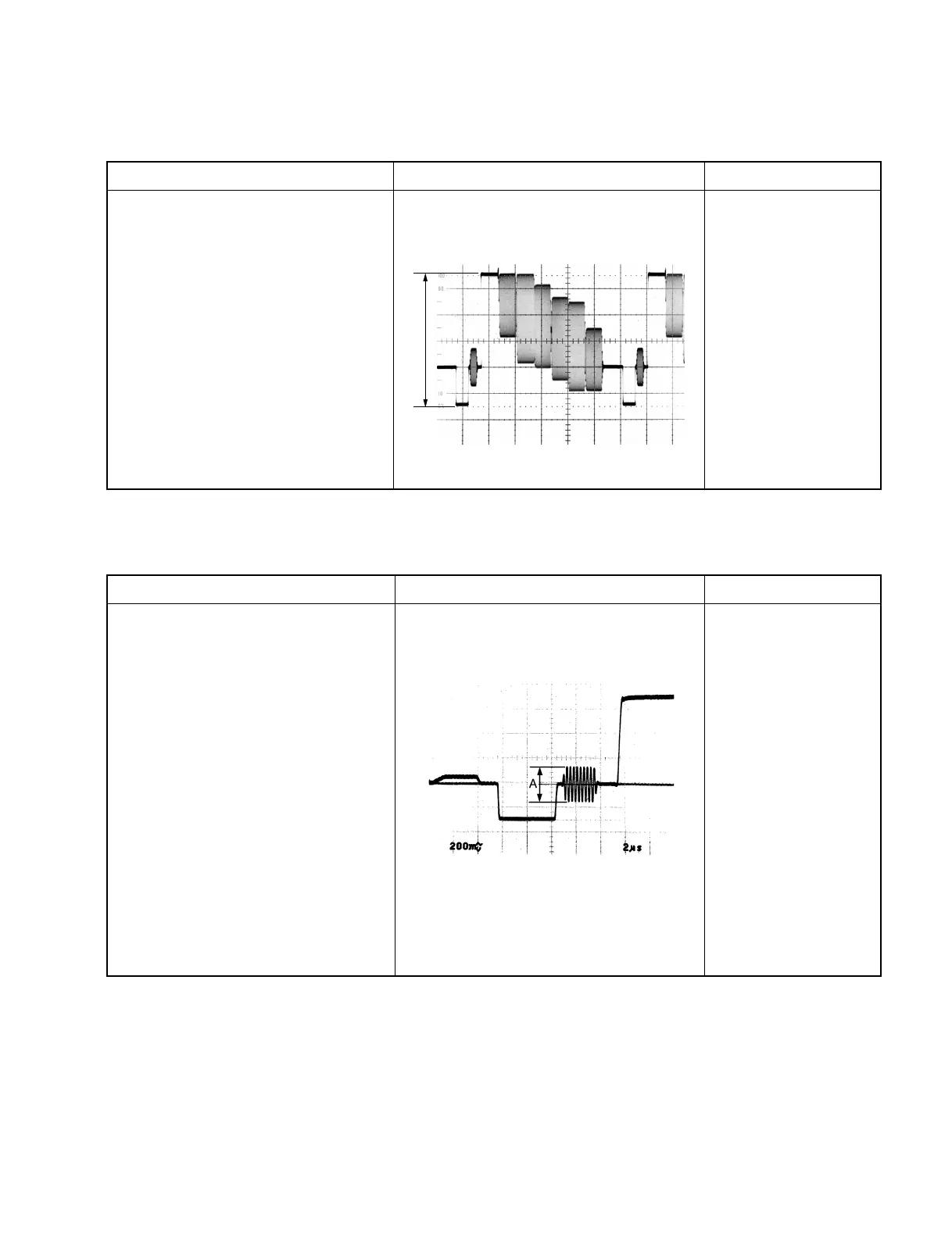

10-3-6. PB VIDEO OUT 1 Video/Sync Level Adjustment
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Adjustment
1RV804/VPR-62A (M-4)
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Specification
VIDEO OUT 1 (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A = 0.300 ±0.003 V
Adjustment
1RV809/VPR-62A (M-4)
10-3-7. PB VIDEO OUT 1 Burst Level Adjustment
