ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-89
DTC P0400 Exhaust Gas Recirculation Flow Malfunction

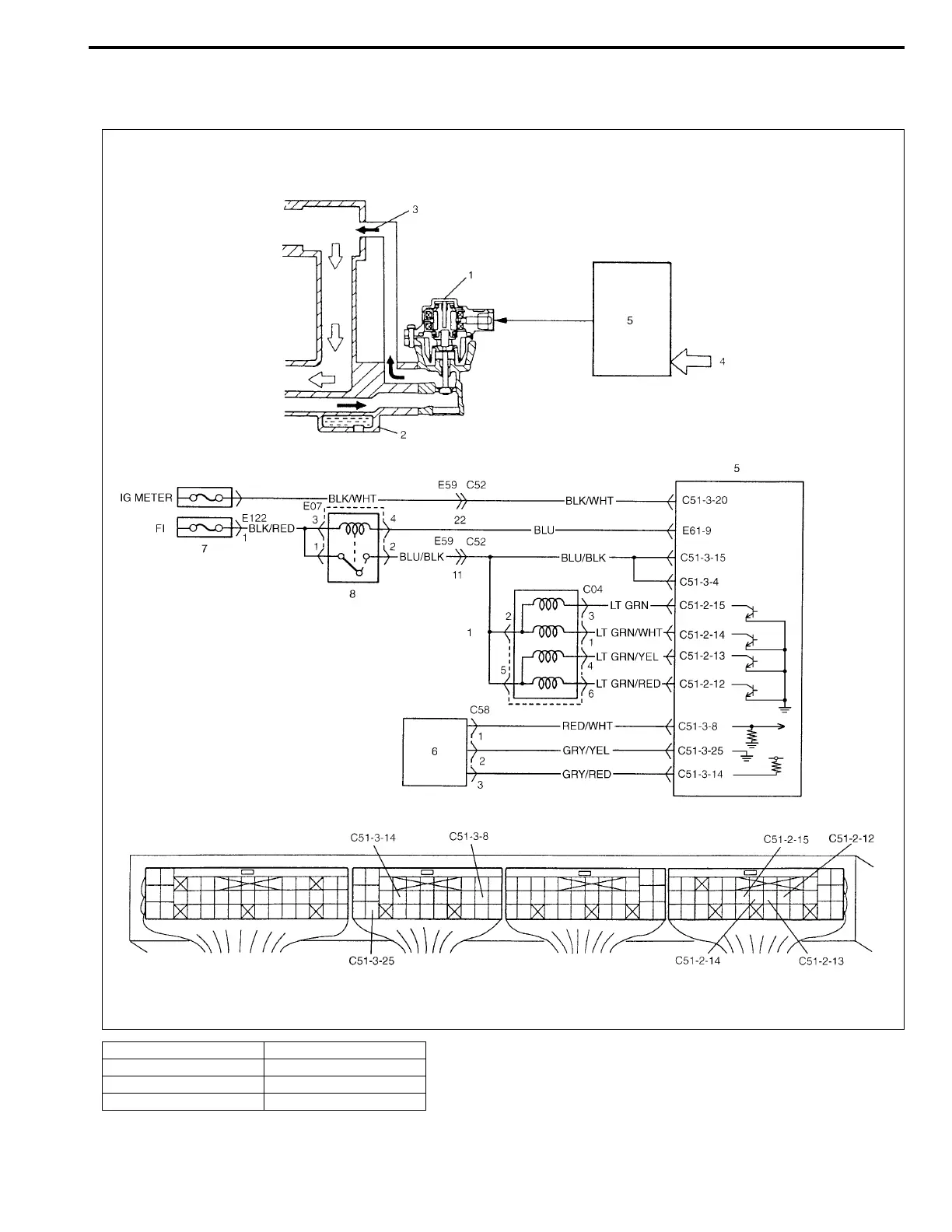

SYSTEM/WIRING DIAGRAM
1. EGR valve 5. ECM (PC)
2. Intake manifold 6. MAP sensor
3. Exhaust gas 7. Main fuse
4. Sensed information 8. Main relay
