REAR SUSPENSION 3E-5

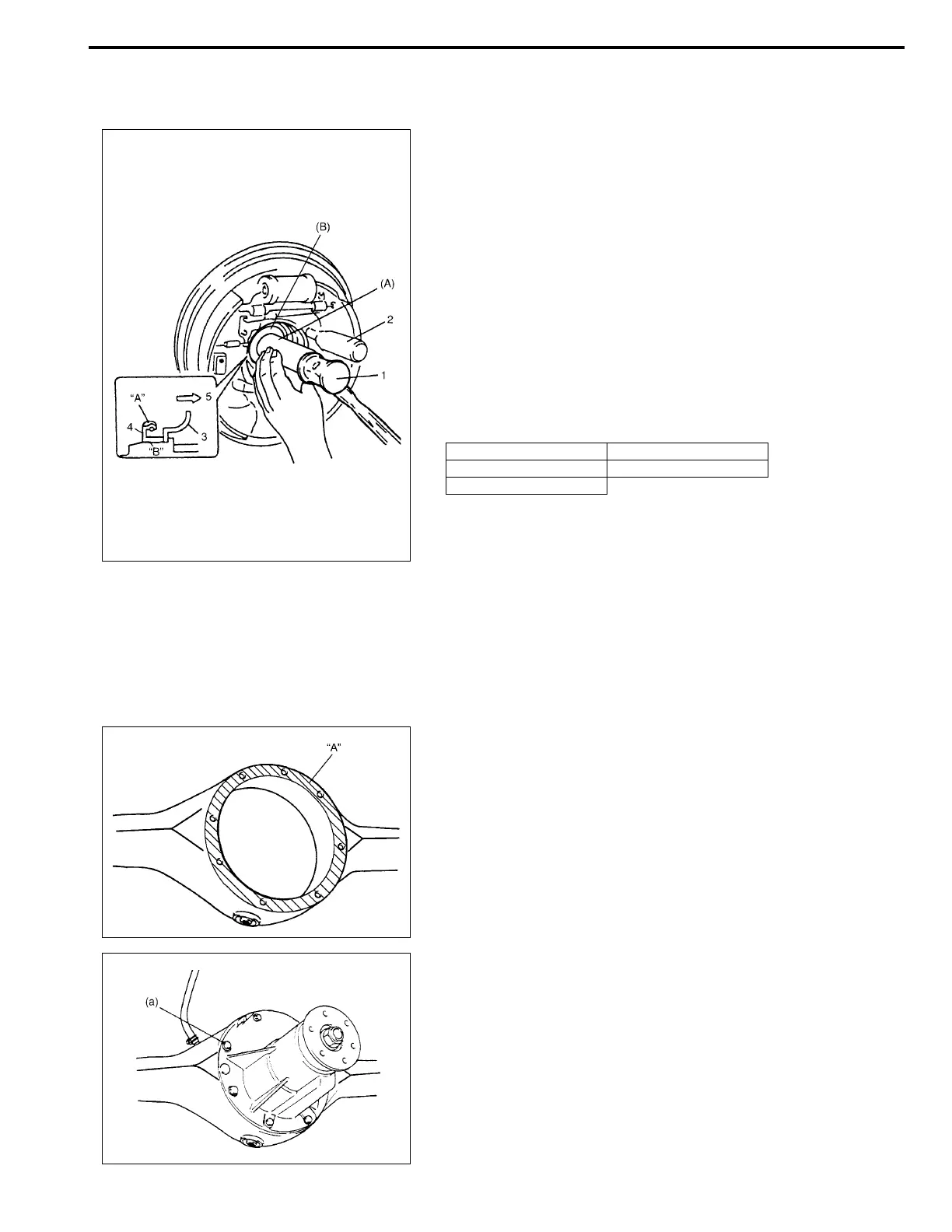

Rear Axle Shaft Inner Oil Seal
INSTALLATION
1) Using special tool drive in oil seal until it contacts oil seal pro-
tector in axle housing.
Special tool
(A) : 09924-74510
(B) : 09944-88210
“A” : Grease 99000-25010
“B” : Sealant 99000-31110
2) For procedure hereafter, refer to steps 6) to 11) of “INSTAL-
LATION” under “REAR AXLE SHAFT” in the service manual
mentioned in the FOREWORD of this manual.
Rear Axle Housing
INSTALLATION
For Step 1) to 4), 7) and 9) to 30), refer to the same section in the
Service Manual mentioned in the FOREWORD of this manual.
3) Clean mating surfaces of axle housing (1) and differential
carrier and apply sealant “A” to housing side.
“A” : Sealant 99000-31110
4) Install differential carrier assembly to axle housing and
tighten carrier bolts to specified torque.
Tightening torque
Differential carrier bolt (a) :
55 N·m (5.5 kg-m, 40.0 lb-ft)
NOTE:
• Make sure that oil seal is free from inclination as it is
installed.
• Refer to the figure so that oil seal is installed in proper
direction.
1. Hammer 4. Oil seal
2. Rod 5. Body center
3. Oil seal protector
