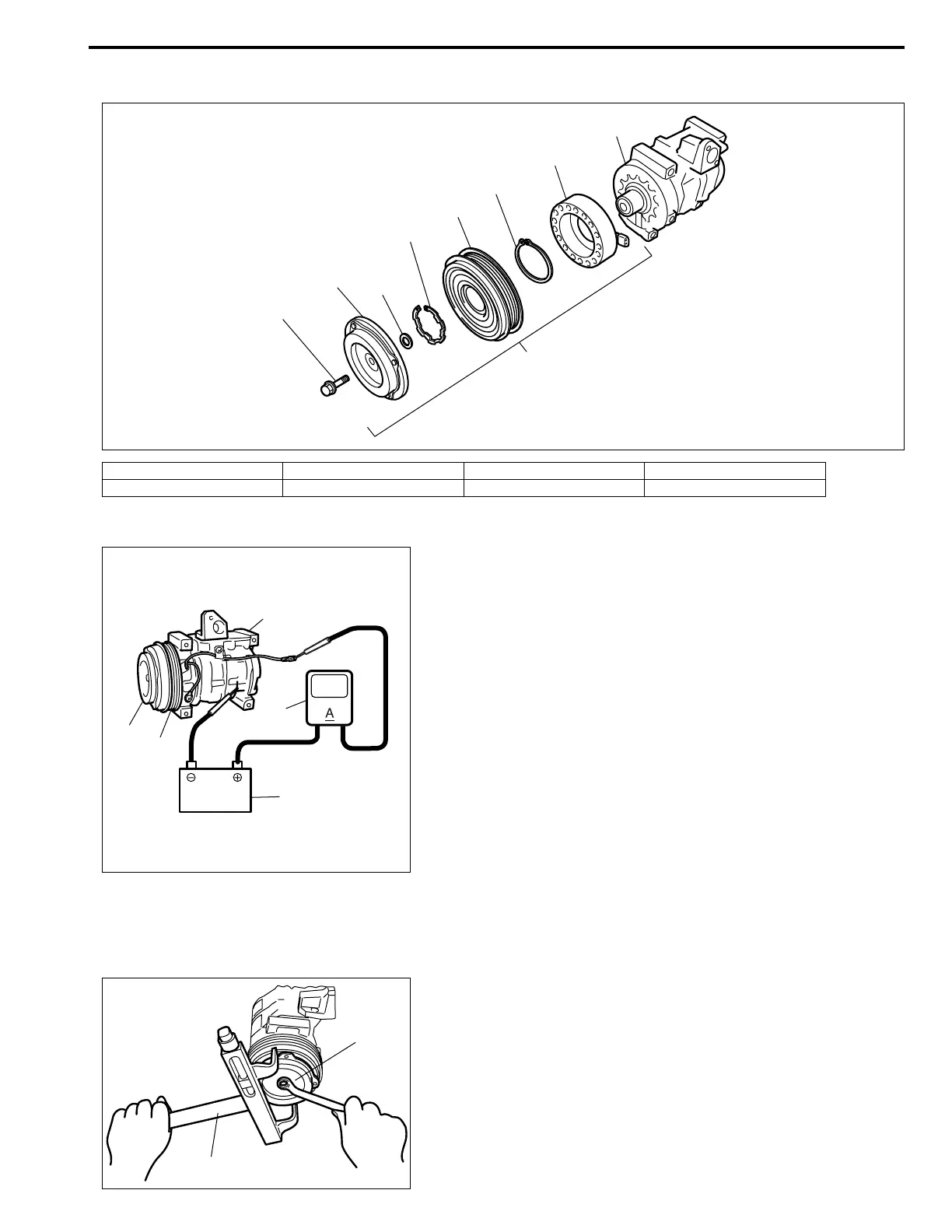

AIR CONDITIONING (OPTIONAL) 1B-41
Magnet Clutch
INSPECTION
Check the following items.
Check no sigh of compressor oil leakage
Check magnet clutch pulley bearing for noise and grease
leakage.
Check magnet clutch operation as follows :
a) Connect battery (1) and ammeter (2) to compressor (3) as
shown.
b) Check that steadily locks between armature plate (4) and
magnet clutch pulley (5).
c) Check that ammeter (2) indicates specified current.
Specified current of magnet clutch :
4A MAX at 12V
If any detects are found, repair or replace magnet clutch assem-
bly.
REMOVAL
1) Remove compressor from vehicle. Refer to COMPRESSOR
ASSEMBLY in this section.
2) Fix armature plate (1) with special tool and remove armature
plate bolt.
Special tool
(A) : 09920-53740
3) Remove armature plate (1).
4) Remove shims from shaft.
1. Armature plate bolt 3. Circlip 5. Shim (s) 7. Compressor body assembly
2. Armature plate 4. Magnet clutch 6. Magnet clutch coil 8. Magnet clutch assembly
1
2
3
4
3
6
7
5
8
3
2
1
5
4
NOTE:
Do not reuse armature plate bolt.
(A)
1
