CRUISE CONTROL SYSTEM 8E-21
Clutch Pedal Position (CPP) Switch
REMOVAL
1) Disconnect CPP switch connector with ignition switch OFF.
2) Remove CPP switch from pedal bracket.
INSPECTION
Check for resistance between terminals under each condition
below.
If check result is not satisfactory, replace.
CPP switch resistance
When switch shaft is free : Continuity
When switch shaft is pushed : No continuity
INSTALLATION
1) Install CPP switch to pedal bracket.
2) With clutch pedal released, adjust switch position so that
clearance between end of thread and clutch pedal bracket is
within specification.
Clearance “a” between end of thread and clutch pedal
bracket :
1.5 – 2.0 mm (0.06 – 0.08 in)
3) Tighten lock nut to specified torque.
Tightening torque
CPP switch lock nut (a) : 7.5 N·m (0.75 kg-m, 5.5 lb-ft)
4) Connect connector to CPP switch securely.

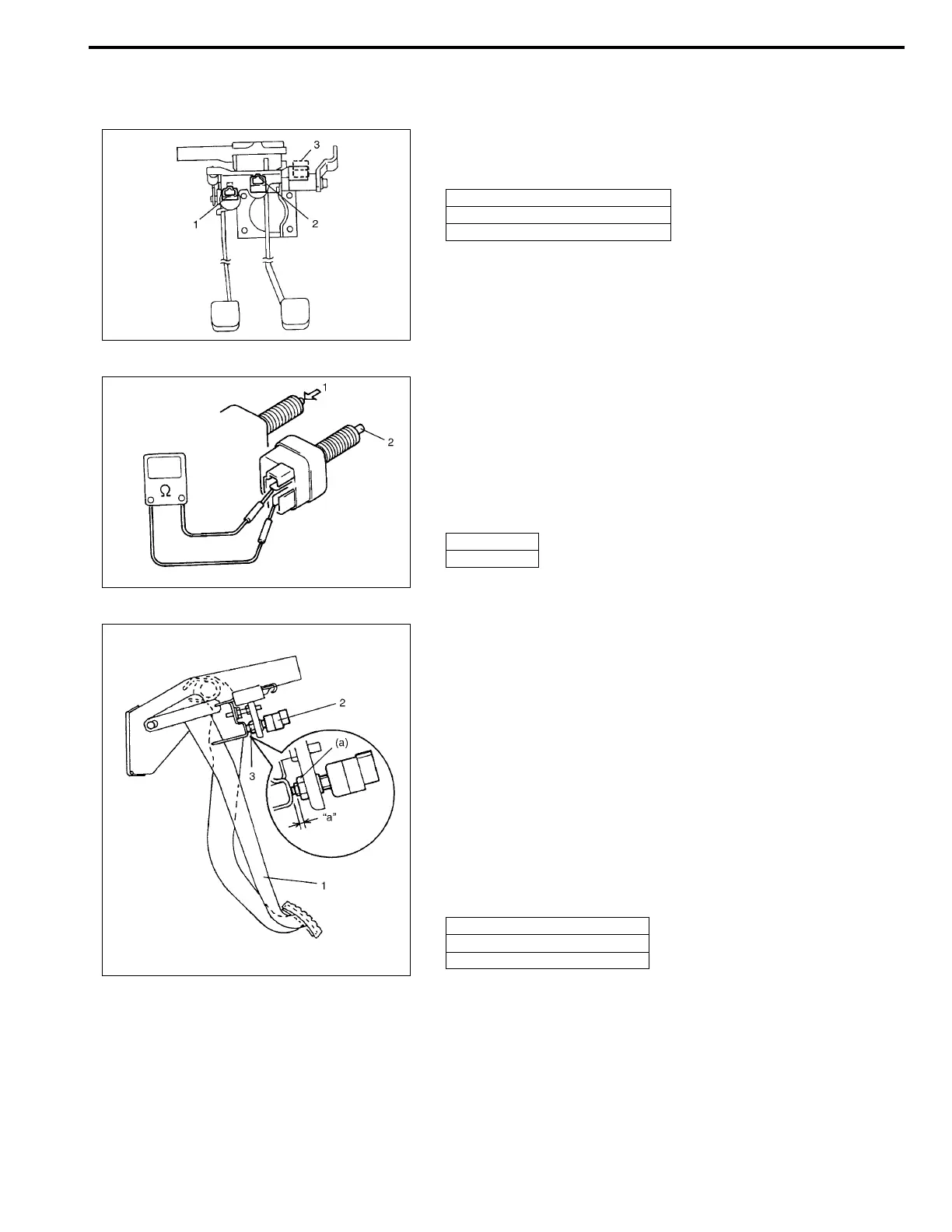

1. CPP switch for cruise control
2. Stop lamp switch
3. CPP switch for starter (if equipped)
1. Push
2. Free
1. Clutch pedal
2. CPP switch for cruise control
3. Lock nut
