ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-119
Table B-3 Fuel Pressure Inspection

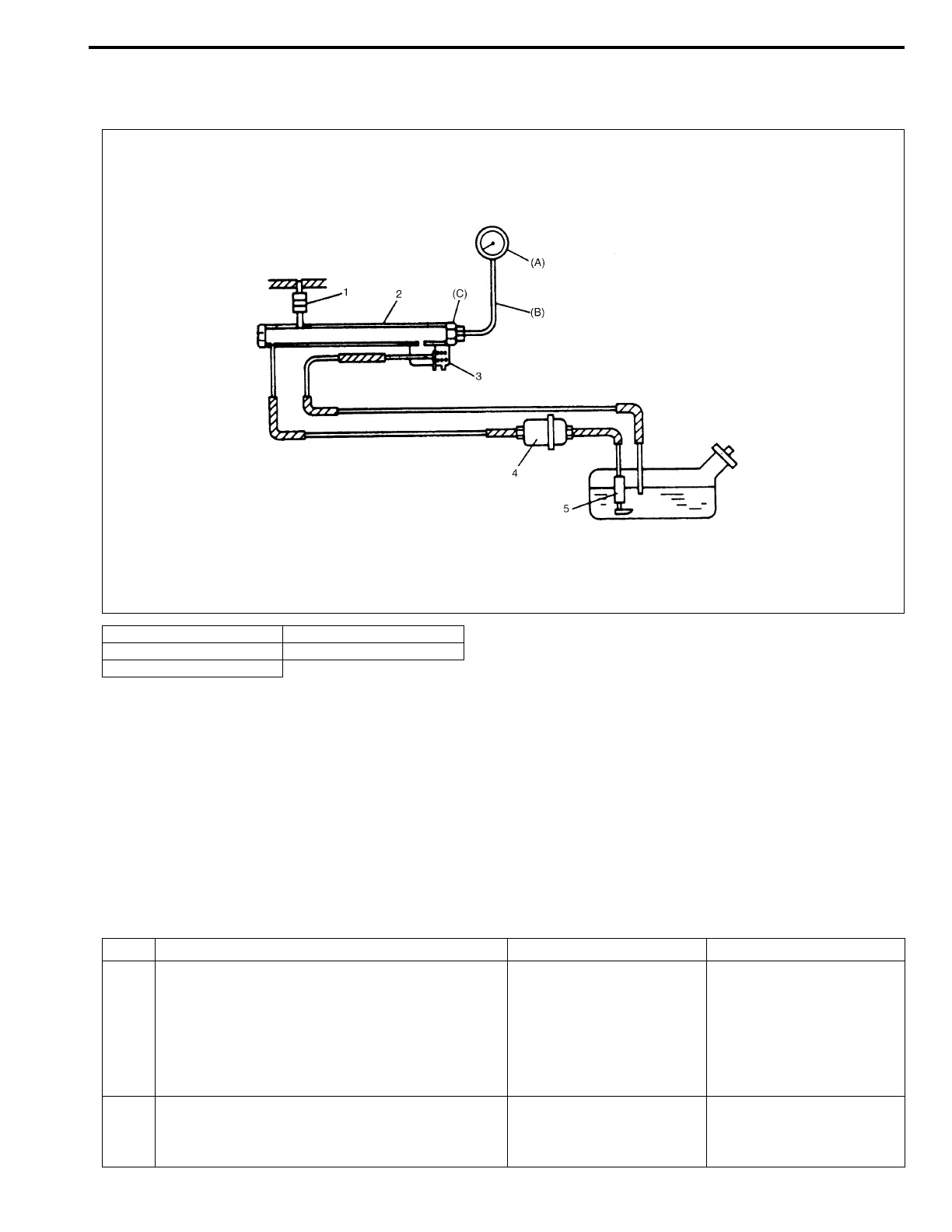

SYSTEM DIAGRAM
Special tool
(A) : 09912-58441
(B) : 09912-58431
(C) : 09919-58421
INSPECTION
1. Injector 4. Fuel filter
2. Delivery pipe 5. Fuel pump
3. Fuel pressure regulator
NOTE:
Before using the following flow table, check to make sure that battery voltage is higher than 11 V. If
battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in
good condition.
Step Action Yes No
1 1) Install fuel pressure gauge, referring to
“FUEL PRESSURE INSPECTION” in Sec-
tion 6E2.
2) Operate fuel pump.
Is fuel pressure then 270 – 310 kPa
(2.7 – 3.1 kg/cm
2
, 38.4 – 44.0 psi)?
Go to Step 2. Go to Step 5.
2
Is 200 kPa (2.0 kg/cm
2
, 28.4 psi) or higher fuel
pressure retained for 1 minute after fuel pump
is stopped at Step 1?
Go to Step 3. Go to Step 4.
To Next Page
