DIFFERENTIAL (REAR) 7F-11

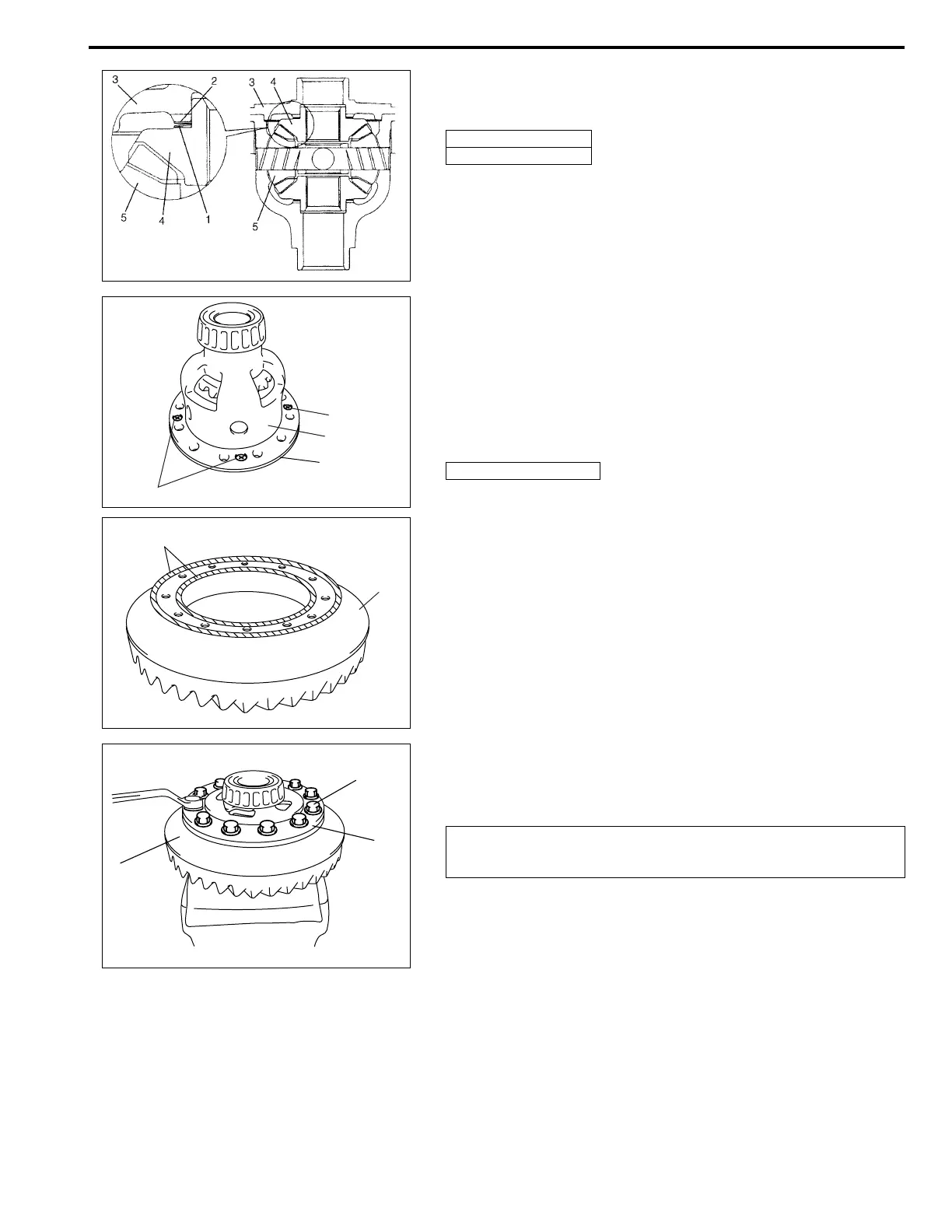

4) In the same manner as described in Step 1), install thrust
washer (2), spring washer (1) and differential gear (4).
5) Install differential left case (1) and then tighten screws to
specified torque.
“A” : Cement 99000-32110
Tightening torque
Differential case screw (a) :
9 N·m (0.9 kg-m, 6.5 lb-ft)
6) Clean and degrease mating surface of drive bevel gear
(hypoid gear) (1).
7) Apply thread lock cement to hatched part of drive bevel gear
(1) as shown in the figure.
“A” : Cement 99000-32110
8) Put drive bevel gear (3) on differential case (1) and fasten
them with bolts (2) by tightening them to specified torque.
Use thread lock cement for bolts (2).
“A” : Cement 99000-32110
Tightening torque
Bevel gear bolts (a) : 105 N·m (10.5 kg-m, 76.0 lb-ft)
3. Differential left case
5. Differential pinion
3 Differential right case
1
2, (a), “A”
3
2, (a), “A”
“
A”
1
CAUTION:
Use of any other bolts than that specified is prohibited.
1
2, (a), “A”
3
To Next Page
