8E-14 CRUISE CONTROL SYSTEM
Clutch Pedal Position Switch Circuit Check

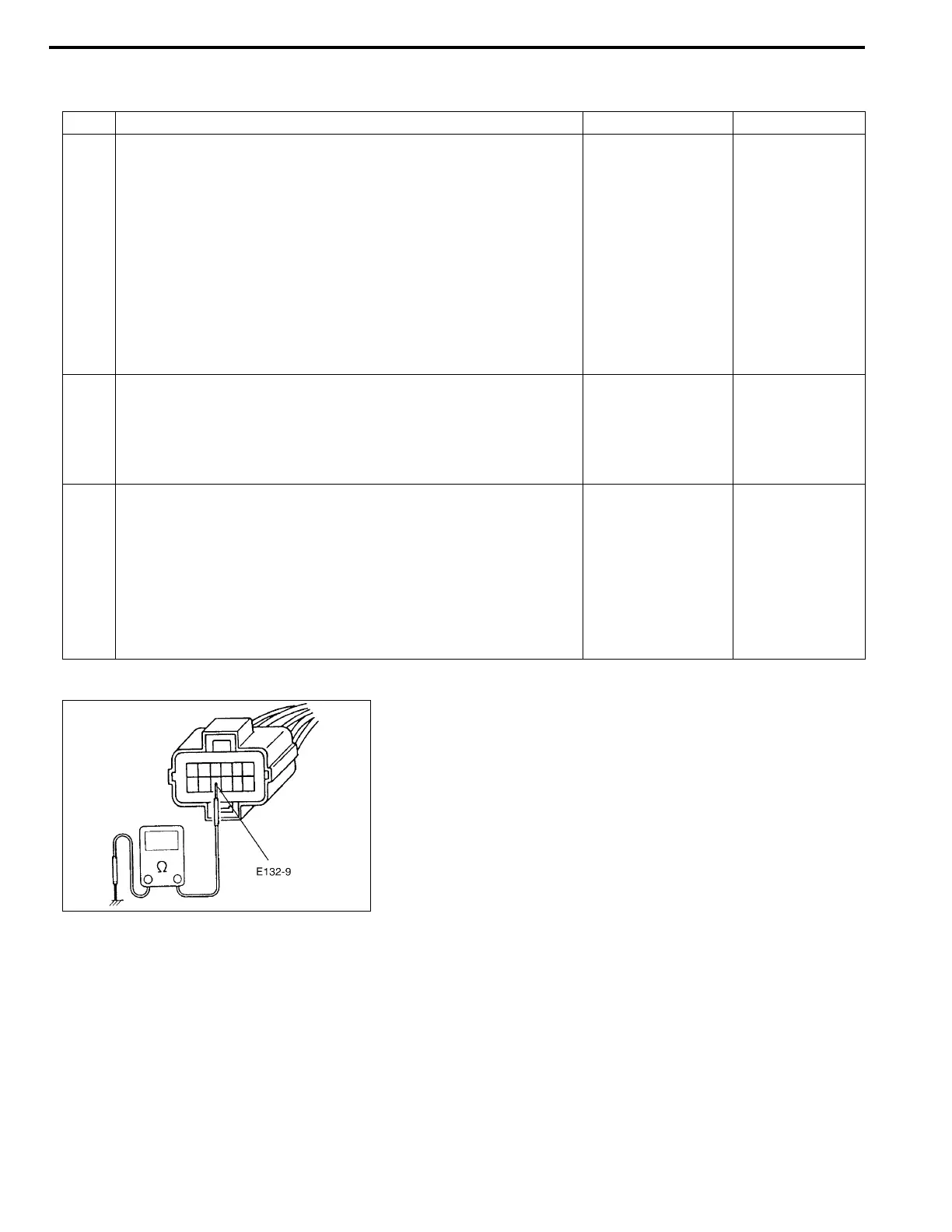

Fig. for Step 1
Step Action Yes No
1 Clutch Pedal Position Switch Circuit Check
1) Disconnect connector from cruise control module with
ignition switch OFF.
2) Check for proper connection to cruise control module at
terminal E132-9.
3) If OK, check for resistance between terminal E132-9 and
ground under each condition below.
Clutch pedal position switch circuit specification
Clutch pedal released : Infinity
Clutch pedal depressed : Continuity
Is check result satisfactory?
Clutch pedal posi-
tion switch circuit is
OK.
Go to Step 2.
2 Clutch Pedal Position Switch Position Check
1) Check clutch pedal position switch for installation position
referring to “CLUTCH PEDAL POSITION SWITCH” in this
section.
Is check result satisfactory?
Go to Step 3. Adjust.
3 Clutch Pedal Position Switch Check
1) Disconnect connector from clutch pedal position switch.
2) Check for proper connection to clutch pedal position
switch at all terminals.
3) If OK, check clutch pedal position switch for operation
referring to “CLUTCH PEDAL POSITION SWITCH” in this
section.
Is this switch in good condition?
“BLU” or “BLK” cir-
cuit is open or
short.
Replace.
To Next Page
