BODY SERVICE 9-7

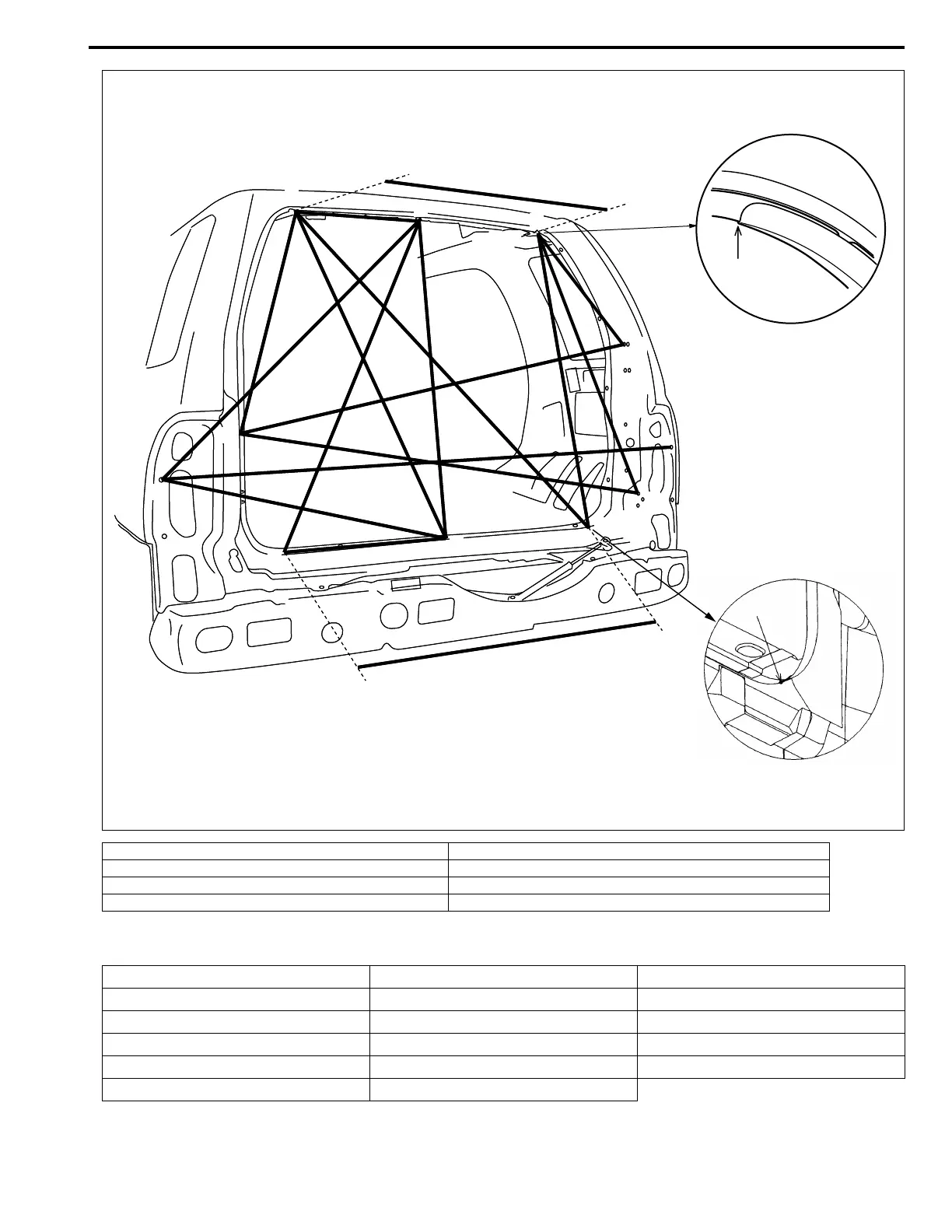

Hole to hole distance :
a. Clip hole in the center of head lining rear installation section e. Installation hole in uppermost part of lower hinge
b (b’). Innermost end of roof panel installation section f (f’). Innermost end of rear floor tail member installation section
c. Installation hole in upper part of back door striker g (g’). Installation hole in outer upper section of rear combination right lamp
d. Installation hole in uppermost part of upper hinge h. Nut hole
b
b
a
b’
b’
c
g’
f’
f’
h
f
f
e
g
d
f
b
a – b’ : 448 mm (17.64 in.) b – e : 837 mm (32.95 in.) c – e : 1293 mm (50.90 in.)
a – f’ : 1054 mm (41.50 in.) b – f : 892 mm (35.12 in.) f – f’ : 1030 mm (40.55 in.)
a – g’ : 1050 mm (41.34 in.) b’ – c : 650 mm (25.59 in.) f’ – h : 512 mm (20.16 in.)
a – h : 921 mm (36.25 in.) b’ – f : 1314 mm (51.73 in.) g – g’ : 1544 mm (60.79 in.)
b – b’ : 888 mm (34.96 in.) b’ – h : 996 mm (39.21 in.) g’ – h : 806 mm (31.73 in.)
b – d : 400 mm (15.75 in.) c – d : 1245 mm (49.02 in.)
