10B-24 AIR BAG SYSTEM
DIAGNOSTIC FLOW TABLE
DTC B1015 :

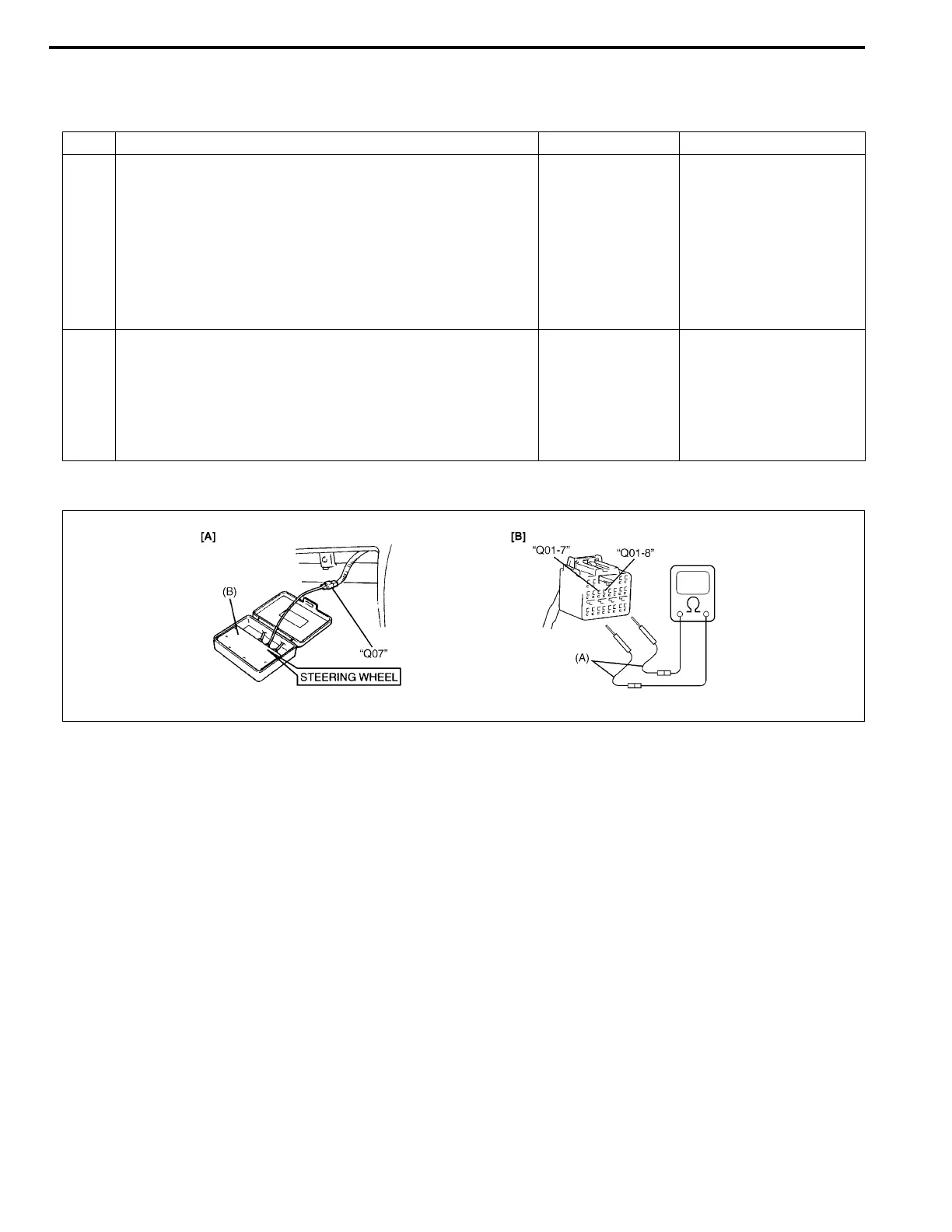

[A] Fig. for STEP 1 and 2/[B] Fig. for STEP 2
Special tool
(A) : 09932-75020
(B) : 09932-75010
Step Action Yes No
1 1) With ignition switch OFF, disconnect passenger air
bag (inflator) module connector behind the glove box.
2) Check proper connection to passenger air bag (infla-
tor) module at terminals in “Q07” connector.
3) If OK then connect Special Tool (B) to passenger air
bag (inflator) module connector disconnected at the
step 1).
With ignition switch ON, is DTC B1015 current?
Go to step 2. Ignition switch OFF.
Replace passenger air
bag (inflator) module
(Refer to PASSENGER
AIR BAG (INFLATOR)
MODULE in this sec-
tion).
2 1) With ignition switch OFF, disconnect SDM connector.
2) Check proper connection to SDM at terminals “Q01-7”
and “Q01-8”.
3) If OK then measure resistance between “Q01-7” and
“Q01-8” terminals with connected Special Tool (B).
Is resistance 4.5 Ω or less?
Substitute a
known-good SDM
and recheck.
Repair high resistance
or open in “YEL/RED” or
“YEL” wire circuit.
NOTE:
Upon completion of inspection and repair work, perform following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
To Next Page
