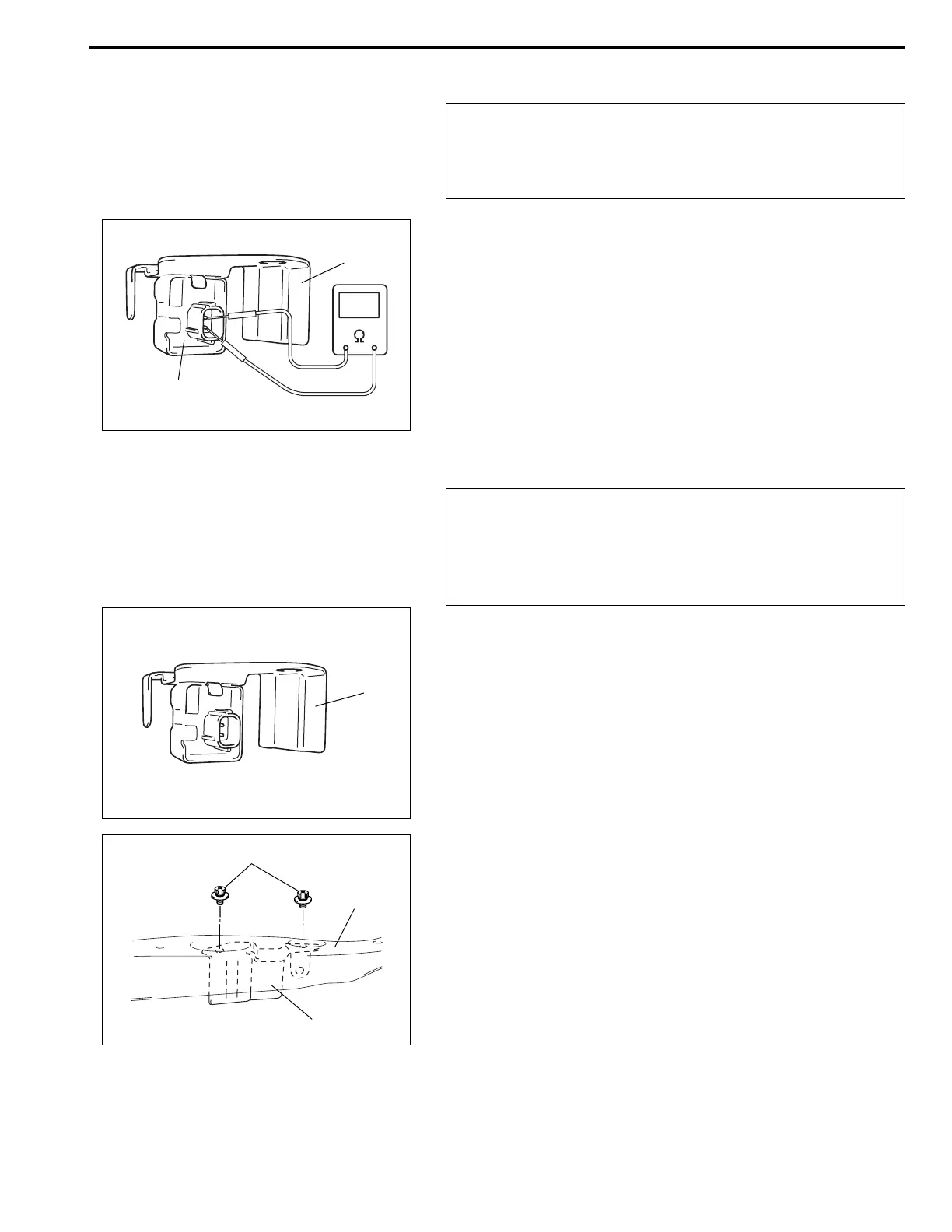

AIR BAG SYSTEM 10B-63
INSPECTION
• Check sensor (1) and its bracket (2) for dents, cracks, defor-
mation or rust.
• Check sensor connector (sensor side and harness side) or
lock mechanism for damage or crack.
• Check connector terminals for bent, corrosion or rust.
• Check sensor for resistance.
Sensor resistance : 738 - 905 Ω
ΩΩ
Ω
INSTALLATION
1) Check that none of following faulty conditions exists.
• Bend or deformity of sensor bracket (1) and front panel.
• Foreign matter on mating surface of sensor bracket (1) with
sensor or excessive rust.
2) Apply thread lock cement to mounting bolts thread. Install
forward sensor (1) on front panel (2) and tighten mounting
bolts (3) to specified torque.
“A” : Thread lock cement “1332B” 99000-32100
Tightening torque
(a) : 10 N·m (1.0 kg-m, 7.2 lb-ft)
CAUTION:
• Never disassemble forward sensor.
• Sensor should be replaced when it was dropped from a
height of 90 cm (3 ft) or more.
2
1
CAUTION:
Proper operation of forward sensor requires sensor be
rigidly attached to vehicle structure and that the arrow on
sensor bracket be pointing toward the front of the vehi-
cle.
1
3
2
1
