AIR BAG SYSTEM 10B-71

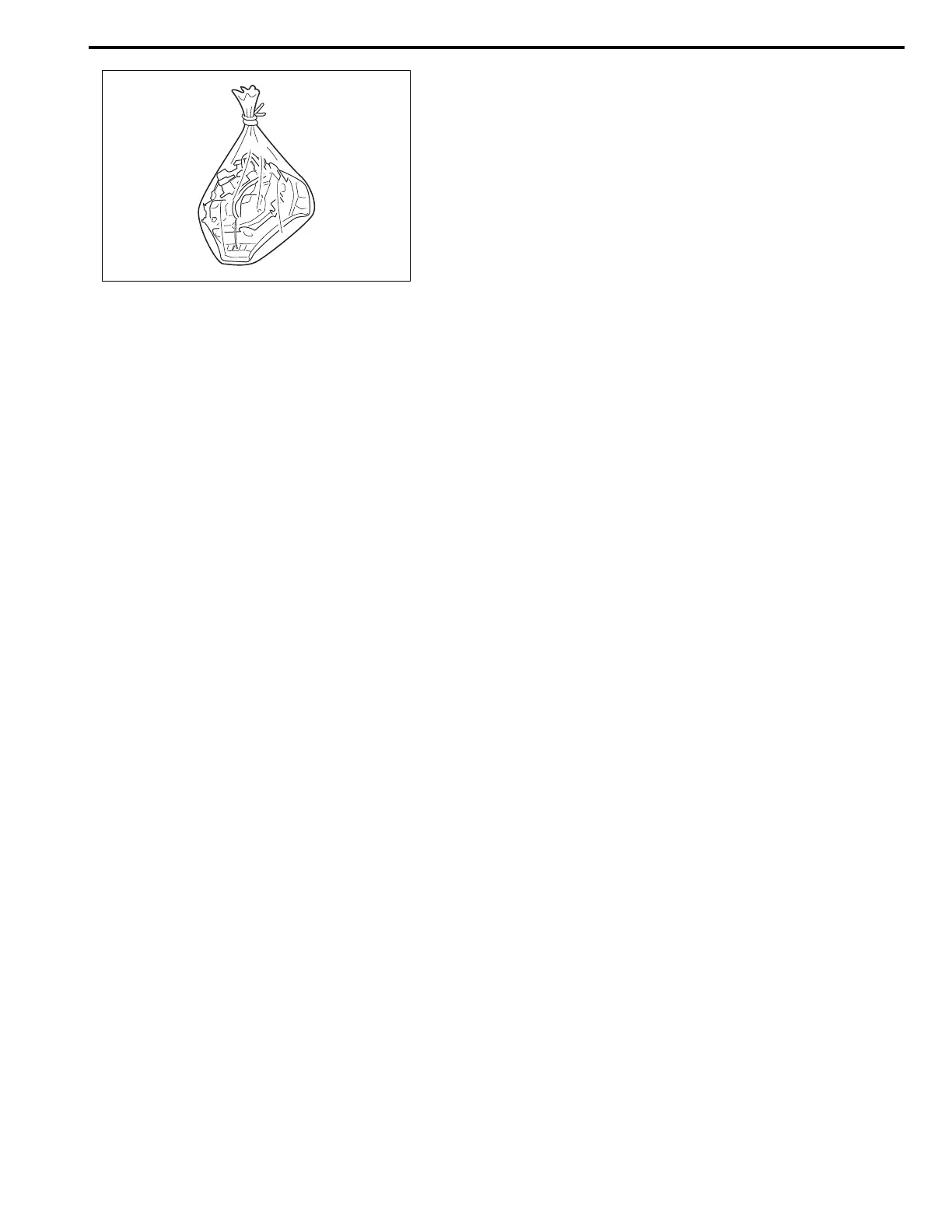

18) Dispose of the deployed air bag (inflator) module and the
activated seat belt pretensioner through normal refuse chan-
nels after it has cooled for at least 10 minutes and tightly seal
the air bag (inflator) module and the seat belt pretensioner in
a strong vinyl bag. (Refer to “DEPLOYED AIR BAG (INFLA-
TOR) MODULE AND ACTIVATED SEAT BELT PRETEN-
SIONER DISPOSAL” in detail.)
19) Wash your hands with mild soap and water afterward.
20) Ensure that the deployment harness has been disconnected
from the power source and that its two banana plugs have
been shorted together by fully seating one banana plug into
the other.
21) Disconnect the deployment harness from the air bag (infla-
tor) module and the seat belt pretensioner.
22) Temporarily store air bag (inflator) module or seat belt pre-
tensioner.
[For driver air bag (inflator) module]
Temporarily store the air bag (inflator) module with its vinyl
trim cover facing up, away from the surface upon which it
rests. Refer to “SERVICE PRECAUTIONS” for details.
[For seat belt pretensioner]
When temporarily strong the seat belt pretensioner, be sure
NOT to face its exhaust hole provided side down. It must
face up. Refer to “SERVICE PRECAUTIONS” for details.
23) Contact your local distributor for further assistance.
NOTE:
The remaining steps are to be followed in the unlikely
event that the air bag (inflator) module did not deploy or
the seat belt pretensioner did not activate after following
these procedures.
