AIR BAG SYSTEM 10B-73
5) Check that there is no open, short or damage in special tool
(deployment harness). If any faulty condition is found, do not
use it and be sure to use new deployment harness.
Special tool
(A) : 09932-75030
6) Short (1) the two deployment harness leads together by fully
seating one banana plug into the other.
7) Connect deployment harness connector to air bag (inflator)
module (driver or passenger) or seat belt pretensioner
(driver or passenger) and lock connector with lock lever.
a) Connect connector.
b) Lock connector with lock lever.
WARNING:
Deployment harness shall remain shorted and not be
connected to a power source until the air bag is to be
deployed and seat belt pretensioner is to be activated.

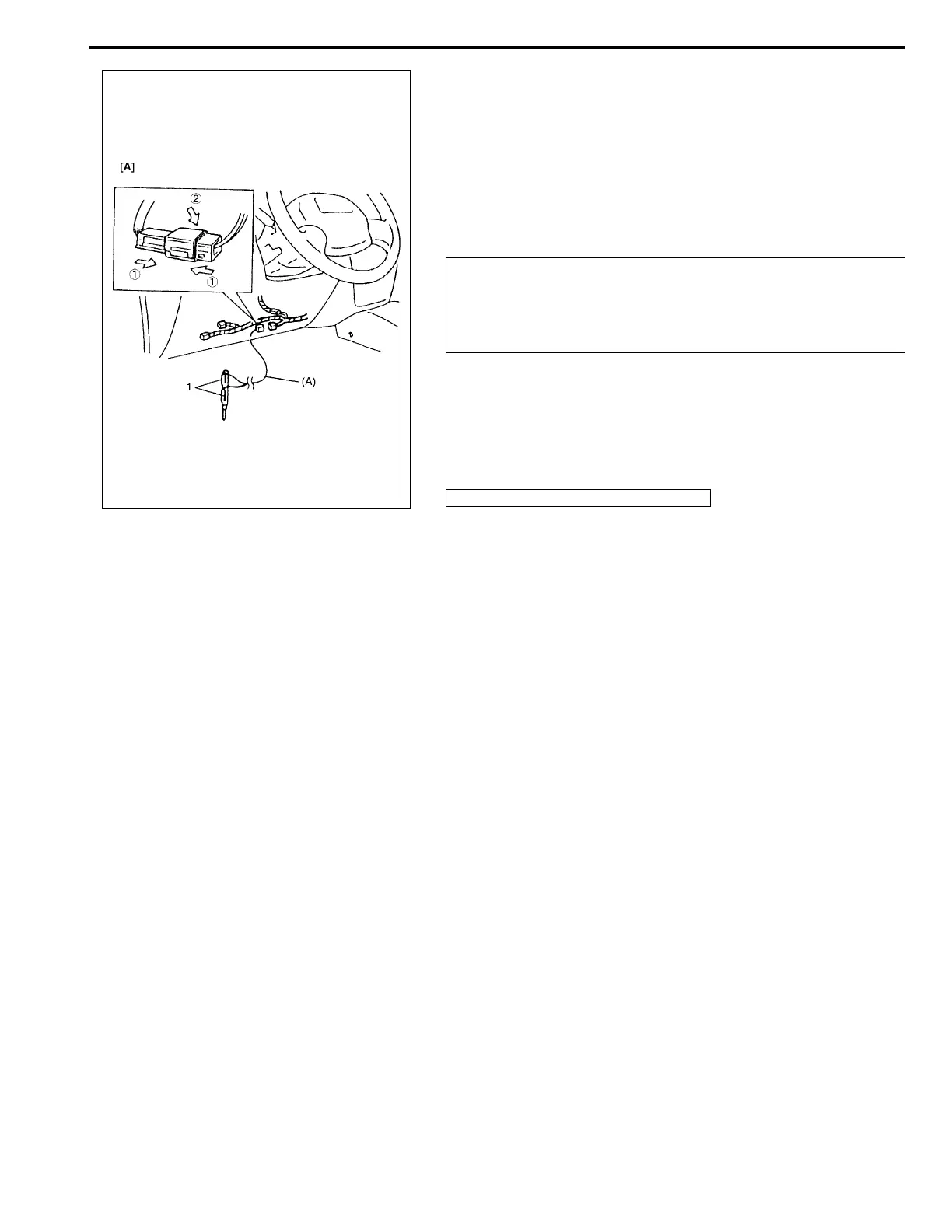

[A] : For Driver Air Bag (Inflator) Module
