3E-2 REAR SUSPENSION
2) Remove circlip from axle shaft.

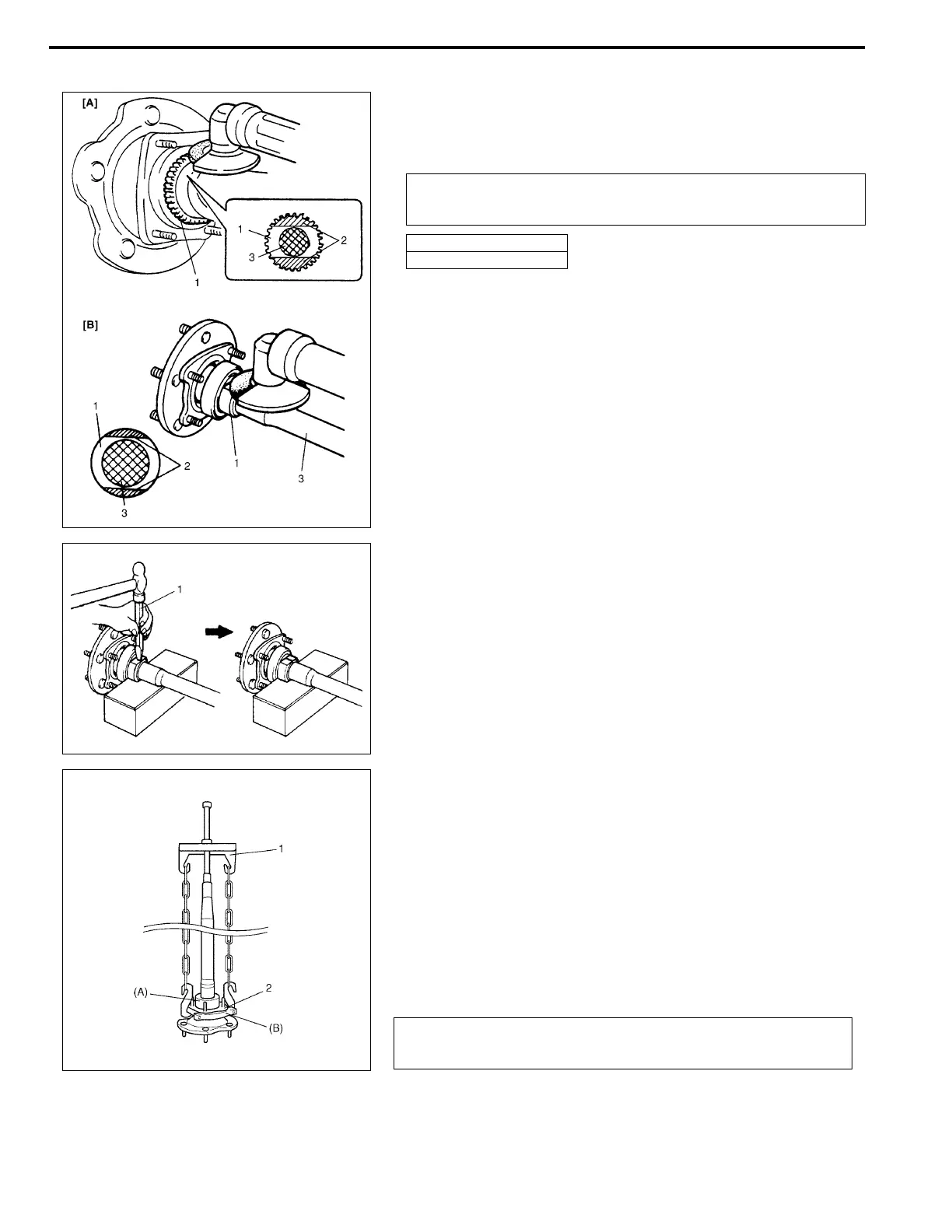

3) In order to remove retainer ring (1) from axle shaft (3), grind
with a grinder two portion (2) of bearing retainer ring as illus-
trated till it becomes thin.
4) Break with a chisel (1) the thin ground sensor rotor and
retainer ring, and it can be removed.
5) Remove wheel bearing (1) and bearing retainer (2) using
special tools as shown in figure.
Special tool
(A) : 09927-18411
(B) : 09921-57810
CAUTION:
Be careful not to grind axle shaft.
[A]: Vehicle with ABS
[B]: Vehicle without ABS
NOTE:
If inner race of wheel bearing is left in axle shaft, remove
it from axle shaft with the same procedure as above-
mentioned.
CAUTION:
Do not reuse wheel bearing.
