Power Assisted Steering System: 6C-50
• Connect the EPS motor coupler (3) and clamp (4).
• Connect the other EPS control unit couplers.
• Install the front fender. Refer to “Front Side Exterior
Parts Removal and Installation in Section 9D in
related manual”.
EPS Body Assembly Components (LT-A750XP/
ZK9)
B931G36306003
Refer to “Steering / Handlebars Components (LT-
A750XP/ZK9) in Section 6B (Page 6B-1)”.
EPS Body Assembly Removal and Installation
(LT-A750XP/ZK9)
B931G36306004
Refer to “Steering / Handlebars Components (LT-
A750XP/ZK9) in Section 6B (Page 6B-1)”.
Refer to “Steering / Handlebars Assembly Construction
(LT-A750XP/ZK9) in Section 6B (Page 6B-2)”.

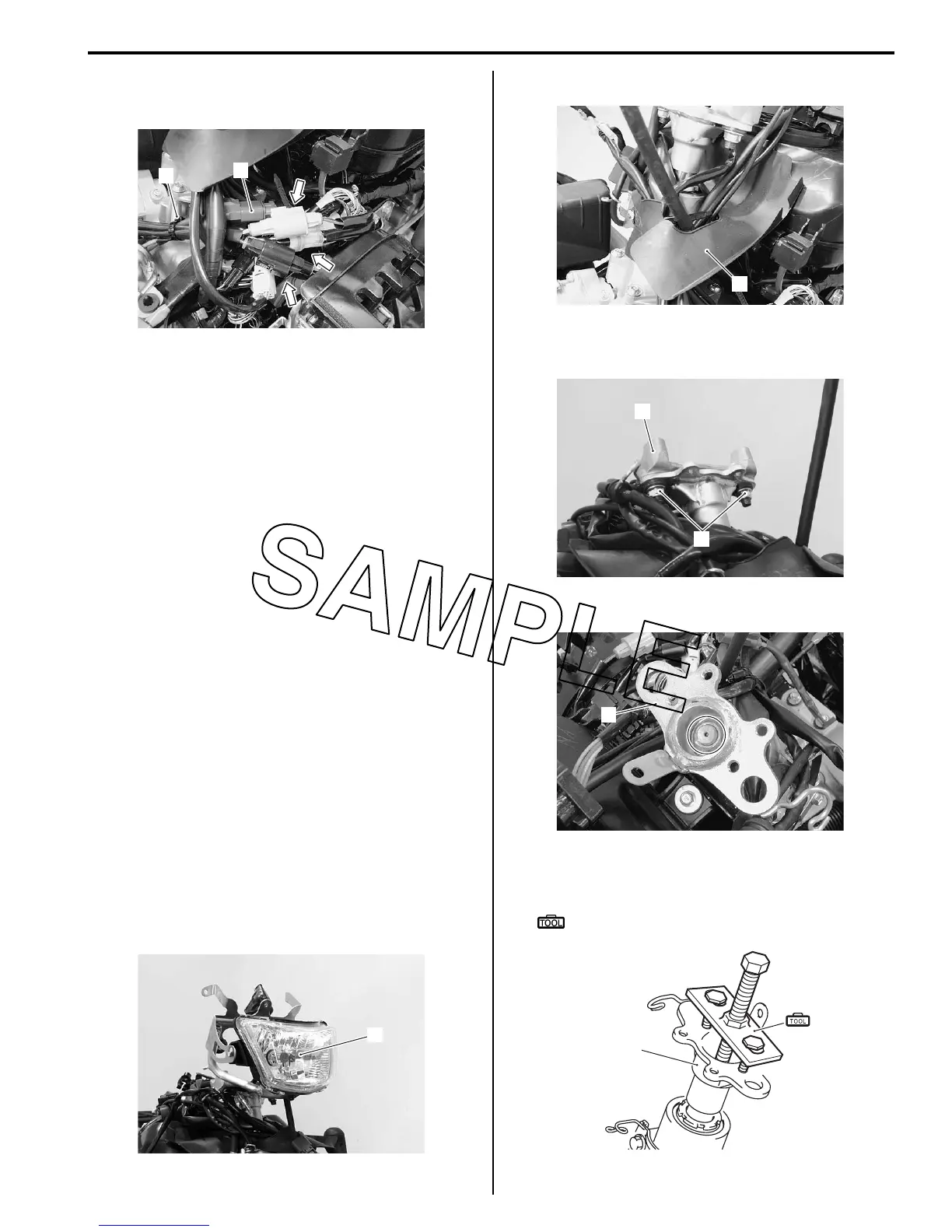

Removal
1) Remove the handlebars. Refer to “Handlebars
Removal and Installation (LT-A750XP/ZK9) in
Section 6B (Page 6B-3)”.
2) Remove the combination meter. Refer to
“Combination Meter Removal and Installation in
Section 9C in related manual”.
3) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D in related manual”.
4) Remove the auxiliary headlight (1). Refer to
“Auxiliary Headlight Removal and Installation in
Section 9B in related manual”.
5) Remove the center cover (2).
6) Remove the handlebar holder (3) by removing the
nuts (4).
7) Remove the steering shaft upper nut (5).
8) Remove the steering shaft plate (6) with the special
tool.
Special tool
(A): 09944–36011 (Steering wheel remover)
3
4
I931G3630048-01
1
I931G3630049-01
2
I931G3630050-01
4
3
I931G3630051-01
5
I931G3630068-01
(A)
6
I931G3630052-01
