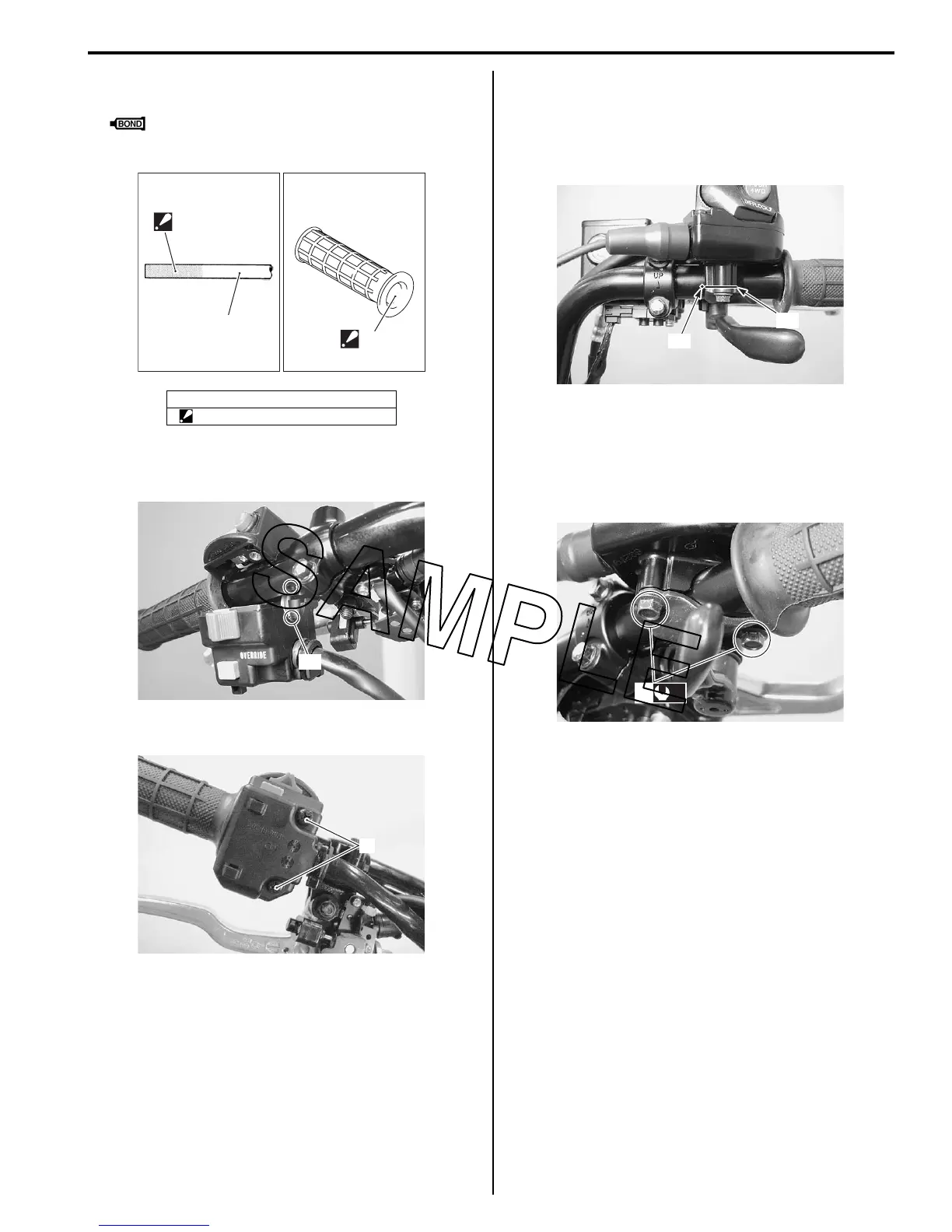

Steering / Handlebar: 6B-5
• Apply adhesive agent to the handlebar right and left
end and right and left grip inner wall.
: Handle grip bond (Handle Grip Bond
(commercially available))
• Insert the projection “D” of the left handlebar switch
assembly into the hole of the handlebars.
• Tighten the left handlebar switch screws (6).
• Install the master cylinder. Refer to “Front Brake
Master Cylinder Assembly Removal and Installation in
Section 4A in related manual”.
• Align the punch mark “E” on the handlebars with the
mating surface “F” of the throttle lever case.
• Tighten the throttle lever case bolts (7) to the specified
torque.
Tightening torque
Throttle lever case bolt (c): 4 N·m (0.4 kgf-m, 3.0
lbf-ft)
Handlebars Inspection (LT-A750XP/ZK9)
B931G36206011
Refer to “Handlebars Inspection in related manual”.
5. Handlebar
“C”: Apply handle grip bond.
“C”
“C”
5
I831G1620014-02
“D”
I931G3620005-01
6
I931G3620006-01
“E”
“F”
I931G3620007-01
(c)
7
I931G3620008-01
