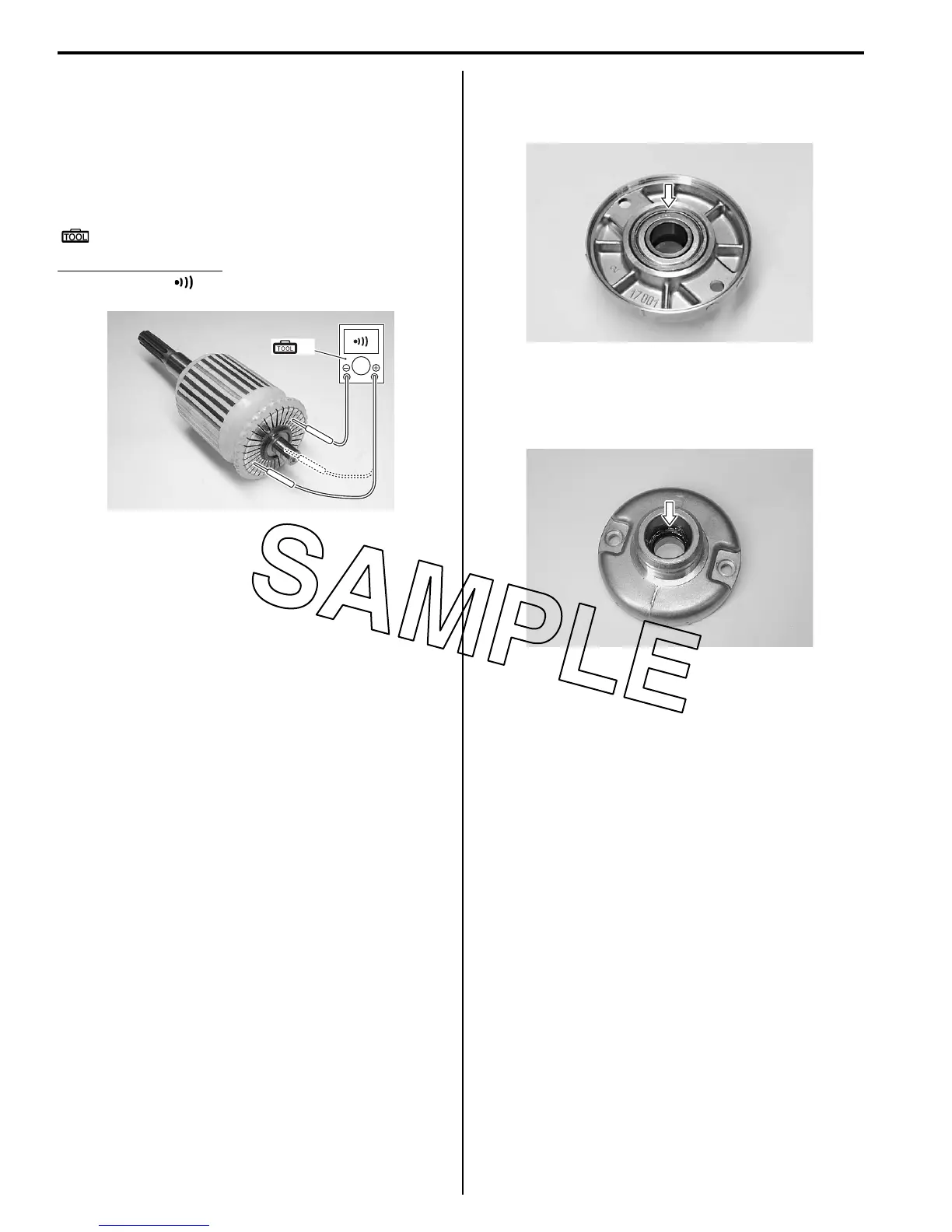

1I-4 Starting System:
Armature Coil
Measure for continuity between each segment. Measure
for continuity between each segment and the armature
shaft.
If there is no continuity between the segments or there is
continuity between the segments and shaft, replace the
armature with a new one.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity set ( )
Bearing
Check the bearing of housing end for damage.
If any damage is found, replace the housing end.
Oil Seal
Check the seal lip for damage. If any damage is found,
replace the housing end (Inside).
(A)
I931G3190009-02
I931G3190010-02
I931G3190011-02
