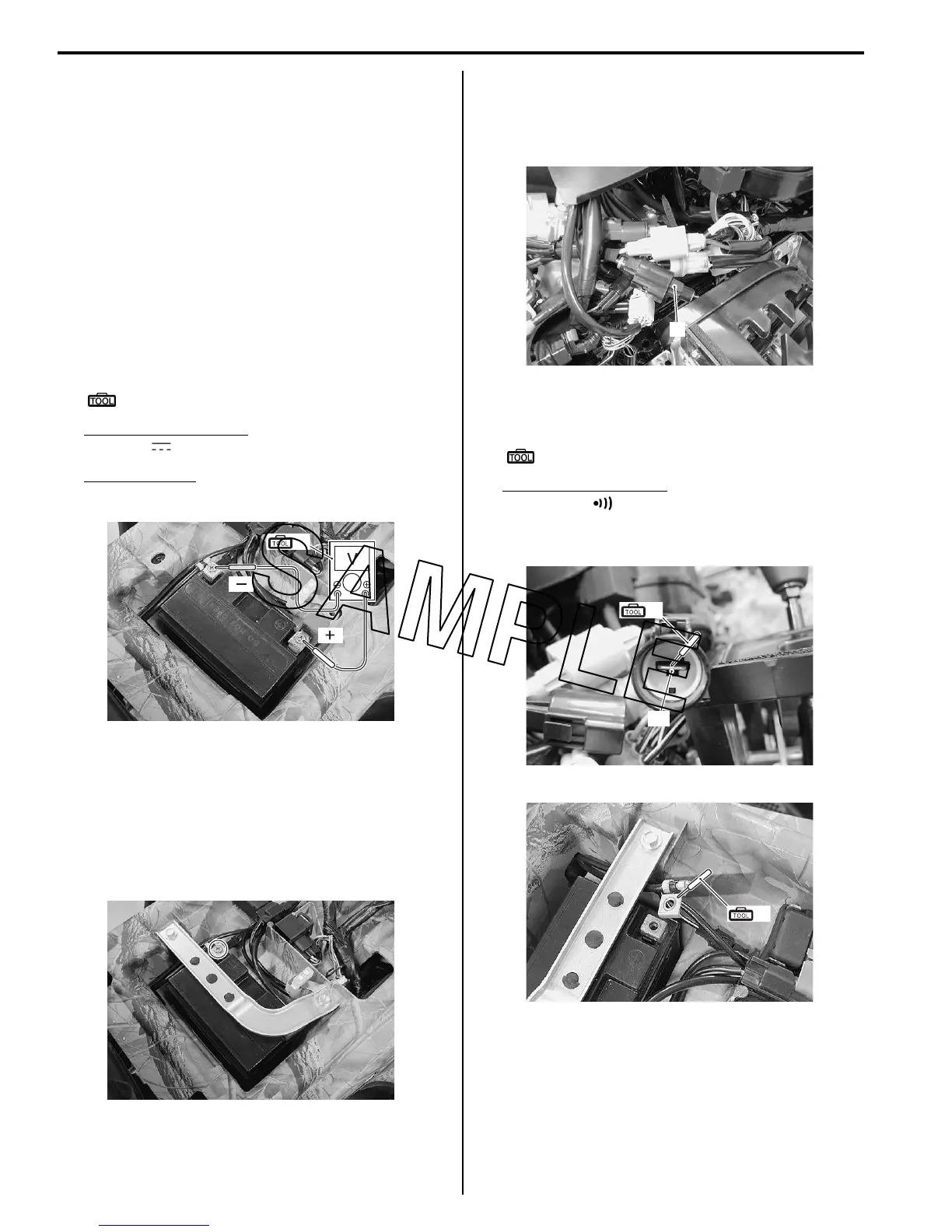

6C-11 Power Assisted Steering System:
Steering Related Parts
Refer to “Steering Parts Inspection in Section 6B in
related manual”.
Battery
Battery voltage inspection
1) Turn the ignition switch OFF.
2) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D in related manual”.
3) Measure the voltage between the (+) and (–) battery
terminals using the multi circuit tester.
If the voltage is less than 12.0 V, charge or replace
the battery and inspect the charging system. Refer to
“Battery Runs Down Quickly in Section 1J in related
manual”.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Voltage ( )
Battery voltage
12.0 V and more
4) Reinstall the seat.
EPS control unit ground wire inspection
1) Turn the ignition switch OFF.
2) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D in related manual”.
3) Disconnect the battery (–) lead wire.
4) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D in related manual”.
5) Disconnect the EPS control unit coupler (1).
6) Check for continuity between terminal “A” at the
coupler and the battery (–) terminal.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
EPS control unit coupler (Vehicle harness end)
(ޓ)
(ޓ)
(A)
I931G3630003-01
I931G3630004-01
1
I931G3630005-01
“A”
(A)
I931G3630006-01
(A)
I931G3630007-01
