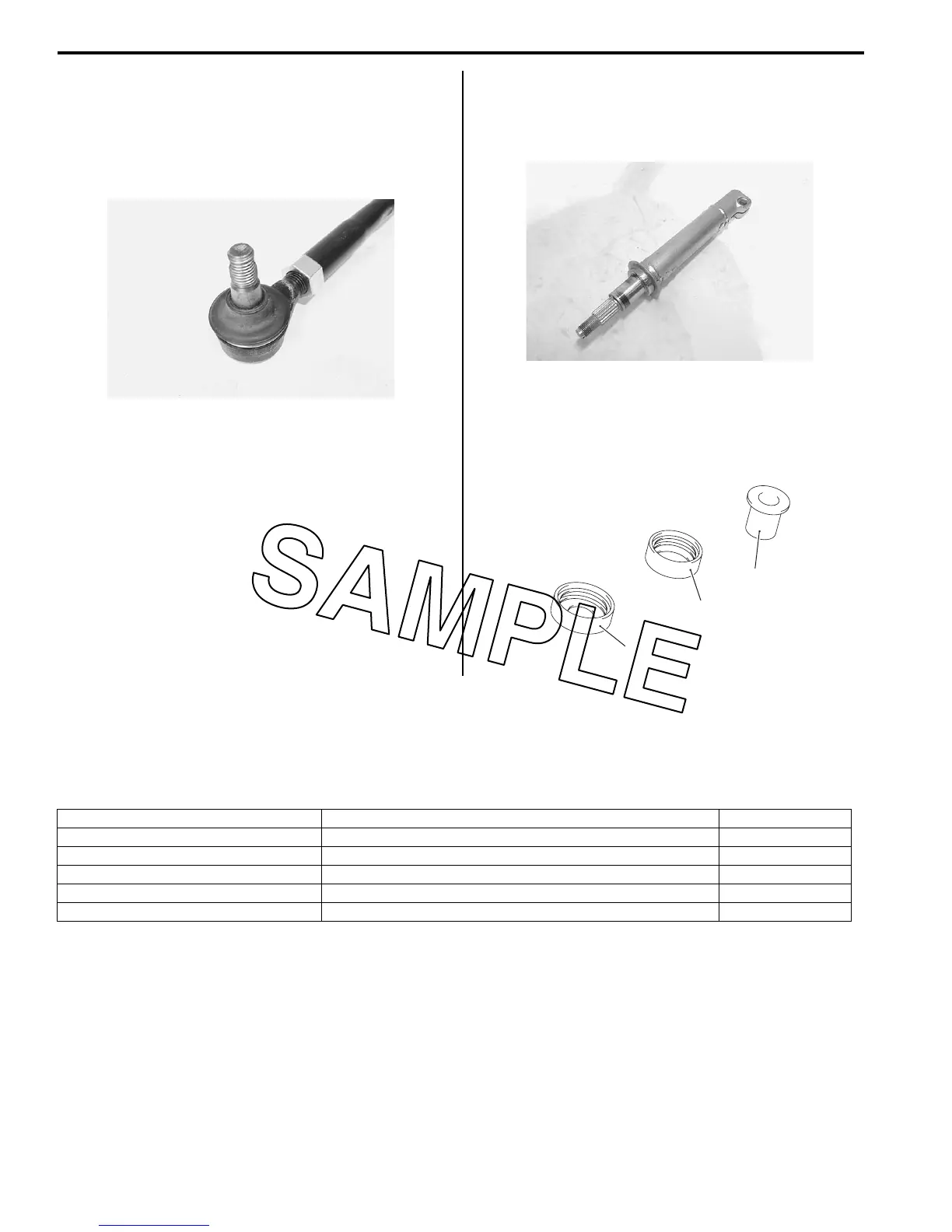

6B-10 Steering / Handlebar:
Tie-rod End
Inspect the tie-rod ends for smooth movement. If there
are any abnormalities, replace the tie-rod ends with new
ones. Inspect the tie-rod end boots for wear or damage.
If any defects are found, replace the tie-rod ends with
new ones.
Steering Shaft
Inspect the steering shaft for distortion or bend. If any
defects are found, replace the steering shaft with a new
one.
Steering Shaft Bushing and Dust Seal
Inspect the steering shaft bushing (1), dust seal (2) and
lower dust seal (3) for wear or damage. If any defects
are found, replace them with new ones.
Specifications
Service Data (LT-A750XP/ZK9)
B931G36207003
Wheel
I931G3620025-01
I931H1620034-01
3
2
1
I931H1620035-01
Item Standard Limit
Steering angle 46° (right & left) —
Turning radius 3.1 m (10.2 ft) —
Toe-out (with 75 kg, 165 lbs) 5 ± 4 mm (0.20 ± 0.16 in) —
Camber –1.3° —
Caster 3.3° —
