6B-2 Steering / Handlebar:

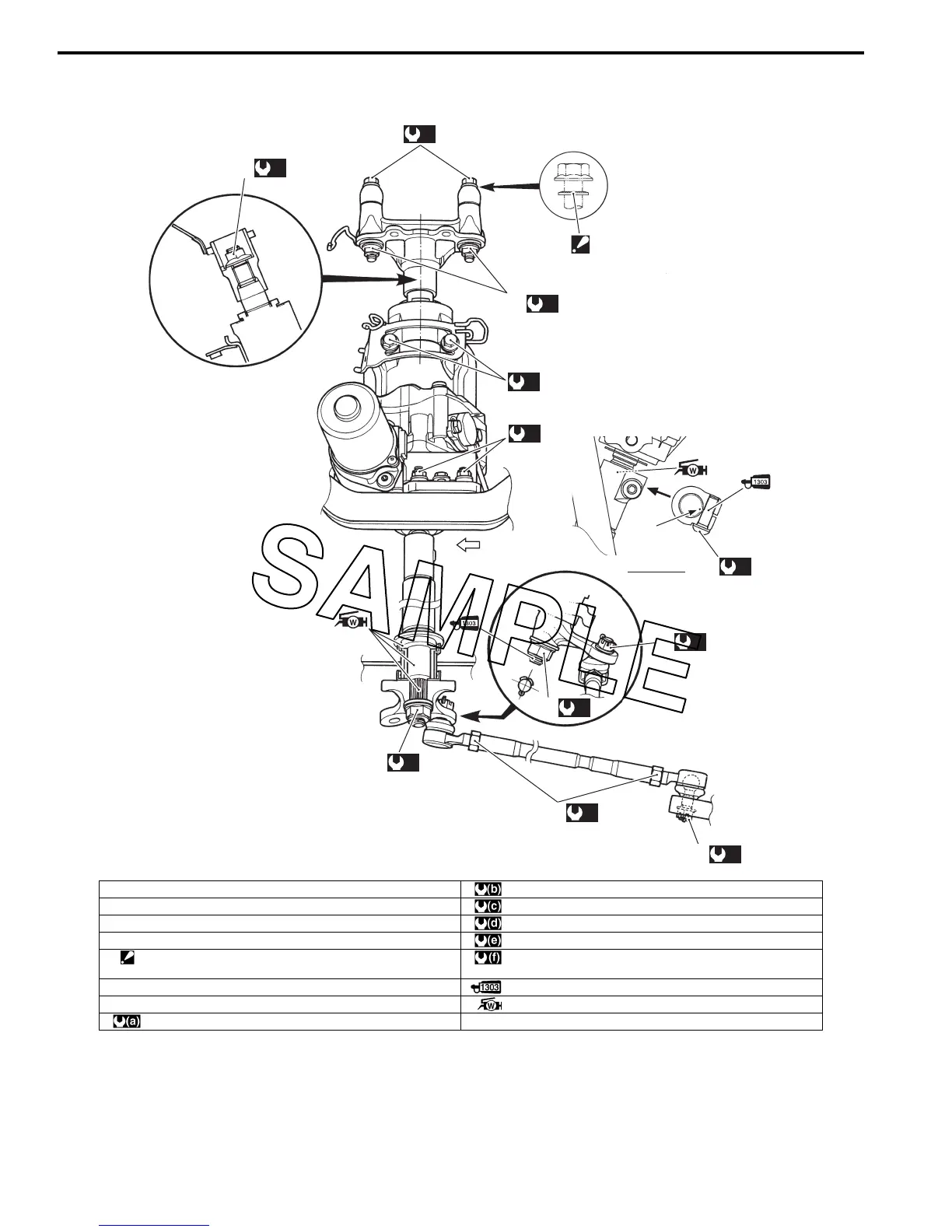

Steering / Handlebars Assembly Construction (LT-A750XP/ZK9)
B931G36206009
(a)
(a)
(f)
(e)
6
(d)
3
(c)
4
(c)
2
(d)
3
(c)
2
(a)
“B”
VIEW A
A
5
(a)
(b)
1
I931H1620037-06
1. Handlebar holder nut : 60 N⋅m (6.0 kgf-m, 43.5 lbf-ft)
2. Tie-rod end nut : 29 N⋅m (2.9 kgf-m, 21.0 lbf-ft)
3. Steering shaft lower nut : 162 N⋅m (16.2 kgf-m, 117.0 lbf-ft)
4. Tie-rod nut : 120 N⋅m (12.0 kgf-m, 87.0 lbf-ft)
5. Washer
: The conical side of washer faces outside.
:28 N⋅m (2.8 kgf-m, 20.0 lbf-ft)
6. Steering shaft upper nut : Apply thread lock to the thread part.
“B”: Red mark : Apply water resistance grease.
:26 N⋅m (2.6 kgf-m, 19.0 lbf-ft)
