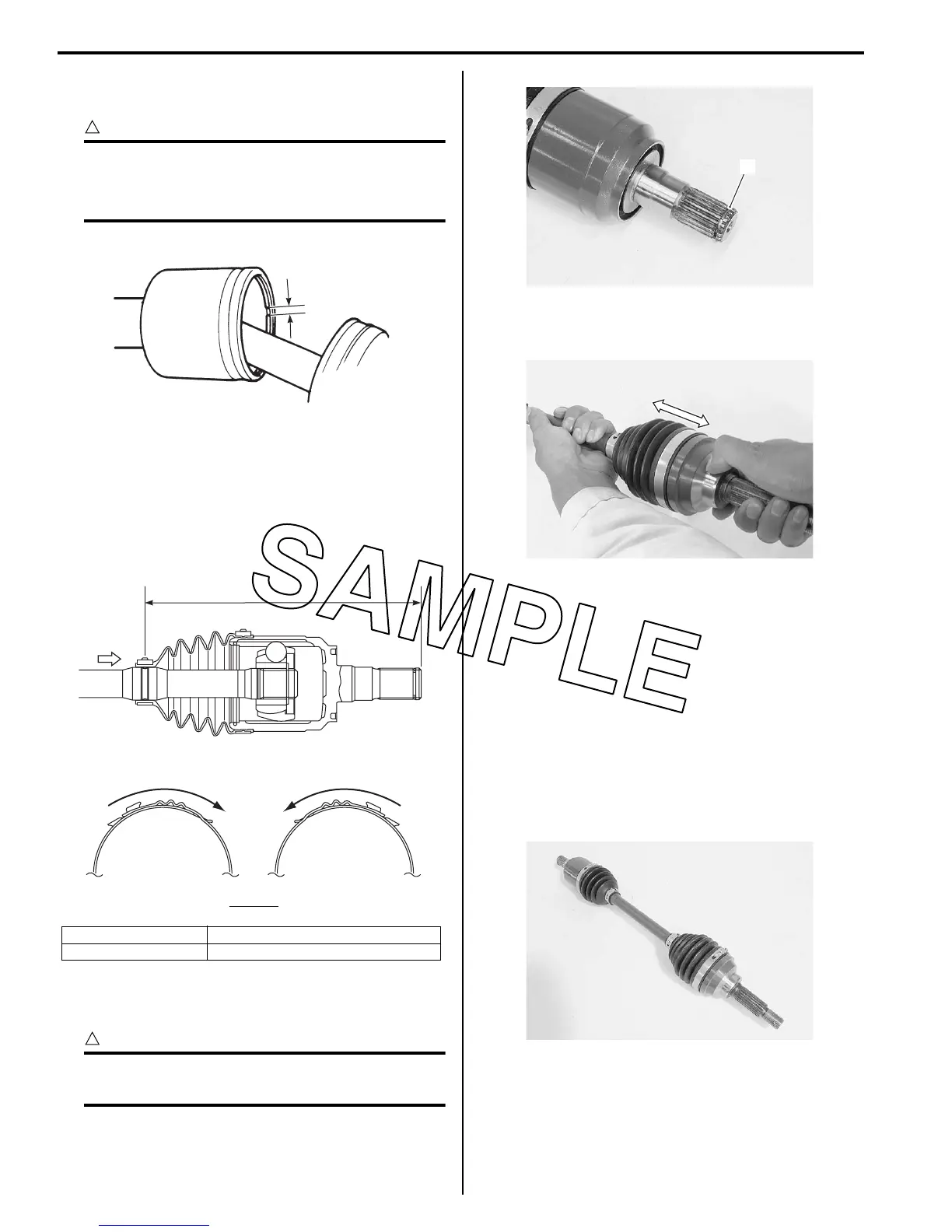

3A-4 Drive Chain / Drive Train / Drive Shaft:
5) Insert the cage into the outer race and install the new
stopper ring to the groove of the outer race.
CAUTION
!
• Replace the stopper ring with a new one.
• Position the opening of stopper ring “C”
so that it will not be lined up with a ball.
6) After installing the boot on the outer race, insert a
screw driver into the boot on the outer race side and
allow air to enter the boot so that the air pressure in
the boot becomes the same as the atmospheric
pressure at the positions indicated in the figure.
7) Fix the boot on the outer race with a new boot band,
taking care not to distort the boot.
8) Install the circlip (2) into the groove of front drive
shaft spline.
CAUTION
!
The removed circlip must be replaced with a
new one.
9) Inspect the axle play by using a push-and-pull
motion given to the axle shaft and wheel spindle.
Front Drive Shaft Inspection (LT-A750XP/ZK9)
B931G33106012
Inspect the front drive shaft in the following procedures:
1) Remove the front drive shaft assembly. Refer to
“Front Drive Shaft Assembly Removal and
Installation in related manual”.
2) Check the drive shaft boots for twist and grease leak.
If any defects are found, replace the defective parts
with new ones.
3) Inspect the boots, circlip and boot bands for wear or
damage. If any damages are found, replace them
with new ones.
4) Install the front drive shaft assembly. Refer to “Front
Drive Shaft Assembly Removal and Installation in
related manual”.
“D”: Right side “F”: Rotation direction
“E”: Left side “a”: 182.1 mm (7.2 in)
“C”
I831G1310015-01
A
VIEW A
“F”
“D”
“E”
“F”
“a”
I931H1310006-03
2
I931H1310007-01
I931H1310008-01
I931H1310009-01
To Next Page
