4A-2 Brake Control System and Diagnosis:
Repair Instructions

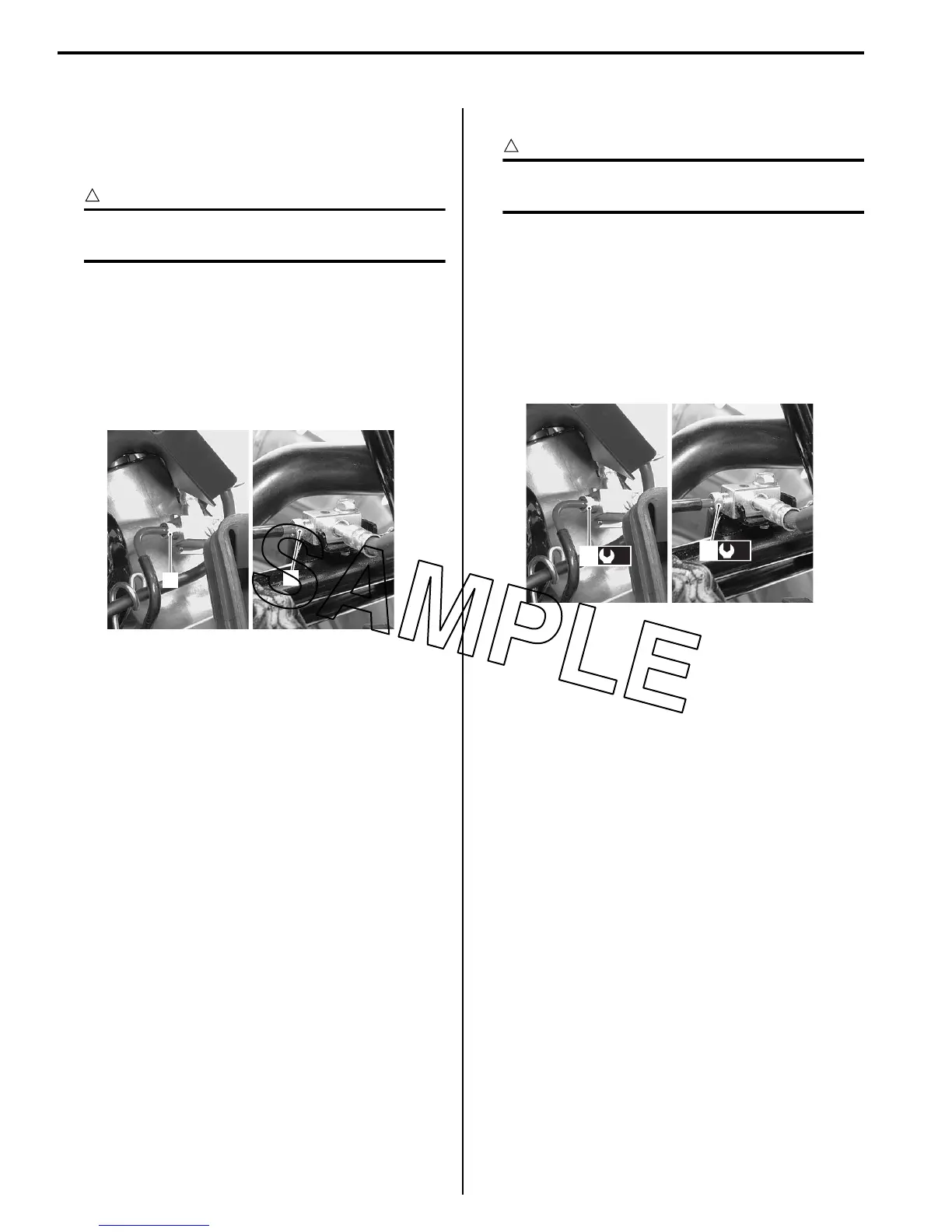

Front Brake Hose Removal and Installation (LT-
A750XP/ZK9)
B931G34106019
Removal
CAUTION
!
Make sure that the vehicle is supported
securely.
1) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D in related manual”.
2) Drain brake fluid. Refer to “Brake Fluid Replacement
in related manual”.
3) Loosen the flare nuts (1) and disconnect the brake
pipe.
4) Remove the front brake hoses as shown in the front
brake hose routing diagram. Refer to “Front Brake
Hose Routing Diagram (LT-A750XP/ZK9) (Page 4A-
1)”.
Installation
CAUTION
!
The seal washers should be replaced with the
new ones to prevent fluid leakage.
1) Install the front brake hose as shown in the front
brake hose routing diagram. Refer to “Front Brake
Hose Routing Diagram in related manual”.
2) Tighten the brake flare nut (1) to the specified
torque.
Tightening torque
Brake pipe flare nut (a): 16 N·m (1.6 kgf-m, 11.5
lbf-ft)
3) Bleed air from the front brake system. Refer to “Air
Bleeding from Front Brake Fluid Circuit in related
manual”.
4) Install the front fender. Refer to “Front Side Exterior
Parts Removal and Installation in Section 9D in
related manual”.
