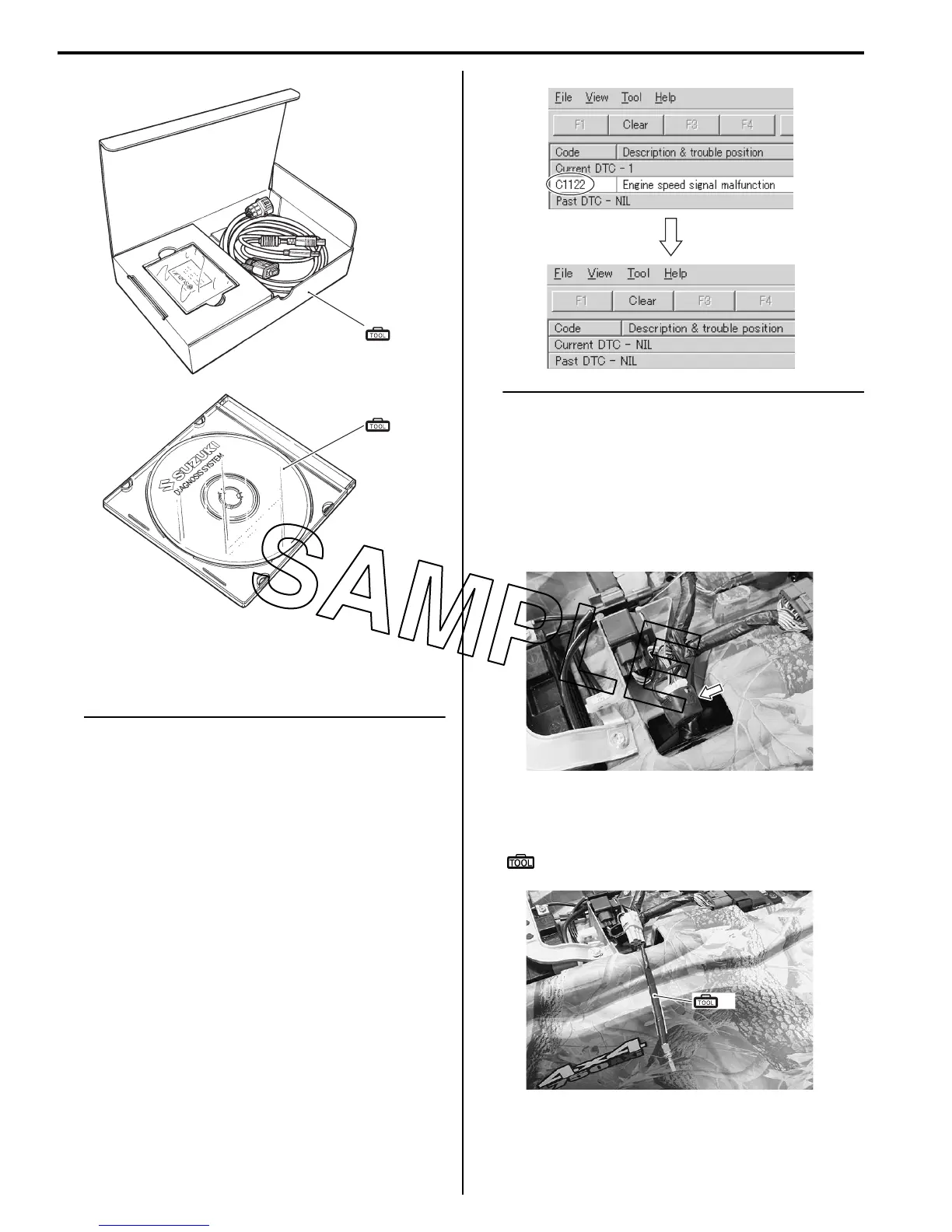

6C-21 Power Assisted Steering System:
3) Read the DTC (Diagnostic Trouble Code) and show
data when trouble (displaying data at the time of
DTC) according to instructions displayed on SDS.
NOTE
• Not only is SDS used for detecting
Diagnostic Trouble Codes but also for
reproducing and checking on screen the
failure condition as described by
customers using the trigger.
• How to use trigger. (Refer to the SDS
operation manual for further details.)
• When DTC is checked, DTC “C1122” is
displayed with ignition switch turned ON.
However, if the engine is started and the
display disappears, it is not a trouble.
4) Close the SDS tool and turn the ignition switch OFF.
DTC (Diagnostic Trouble Code) Deleting (LT-
A750XP/ZK9)
B931G36304005
Use of Mode Select Switch
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D in related manual”.
2) Connect the special tool to the mode select coupler
and output the DTCs.
Special tool
(A): 09930–82720 (Mode selection switch)
(A)
(B)
I705H1110116-03
I931H1630032-01
I931G3630020-01
(A)
I931G3630021-01
To Next Page
