Maintenance and Lubrication: 0B-3

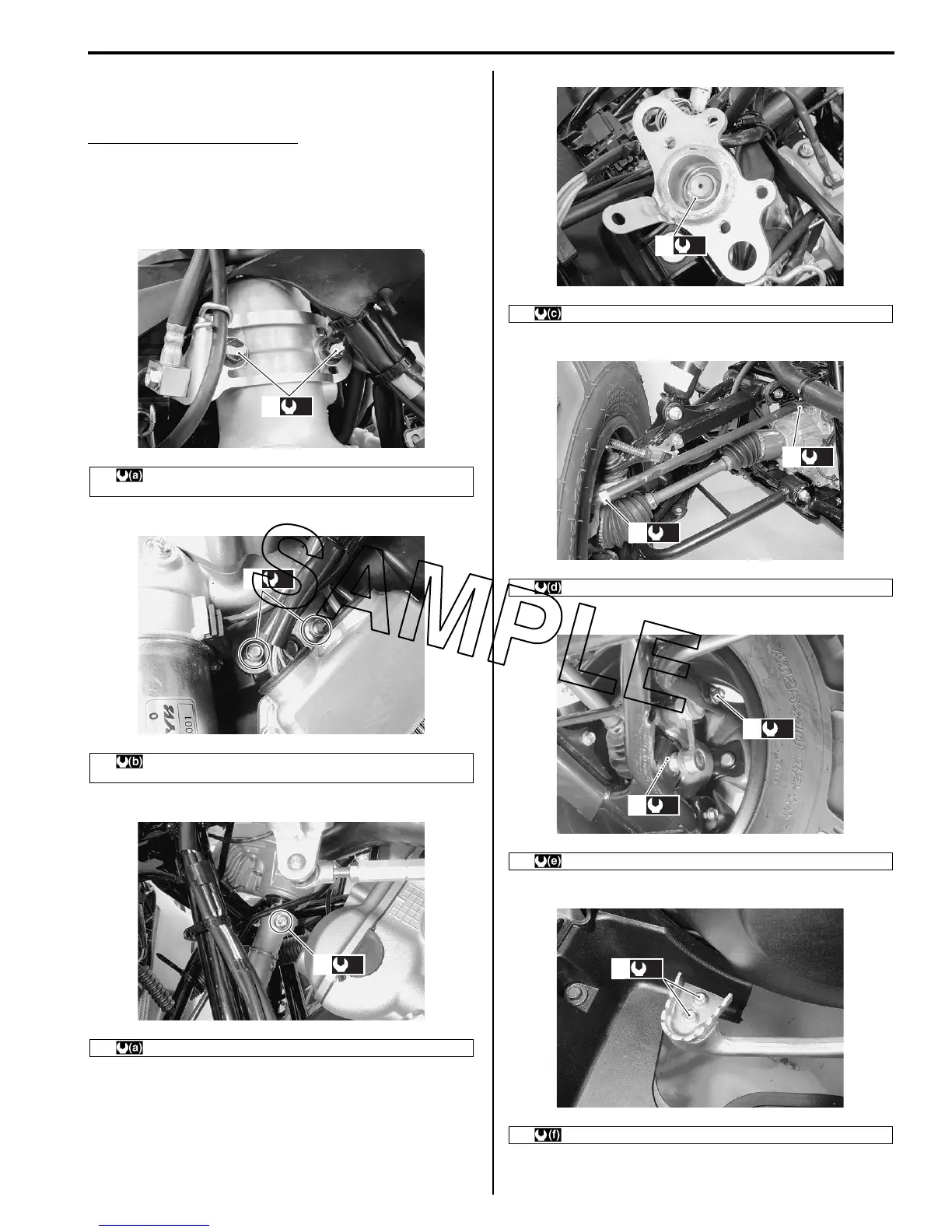

Chassis Bolt and Nut Inspection (LT-A750XP/
ZK9)
B931G30206032
Tighten chassis bolt and nut
Initially at 200 km (100 miles, 1 month) and every 1
000 km (600 miles, 3 months) thereafter
Check that all chassis bolts and nuts are tightened to
their specified torque.
1 EPS body assembly mounting bolt (Upper) 26 N⋅m (2.6 kgf-m,
19.0 lbf-ft)
2 EPS body assembly mounting nut (Lower) 28 N⋅m (2.8 kgf-m,
20.0 lbf-ft)
3 Steering shaft bolt 26 N⋅m (2.6 kgf-m, 19.0 lbf-ft)
(a)
1
I931G3020001-01
(b)
2
I931G3020002-01
(a)
3
I931G3020003-01
4 Steering shaft upper nut 120 N⋅m (12.0 kgf-m, 87.0 lbf-ft)
5 Tie-rod lock-nut 29 N⋅m (2.9 kgf-m, 21.0 lbf-ft)
6 Rear stabilizer joint nut 60 N⋅m (6.0 kgf-m, 43.5 lbf-ft)
7 Rear brake pedal screw 4.5 N⋅m (0.45 kgf-m, 3.0 lbf-ft)
(c)
4
I931G3020004-02
(d)
5
(d)
5
I931G3020005-02
(e)
6
(e)
6
I931G3020007-02
(f)
7
I931G3020008-01
