Suzuki LT-A750XP/Z User Manual

Steering / Handlebar: 6B-7

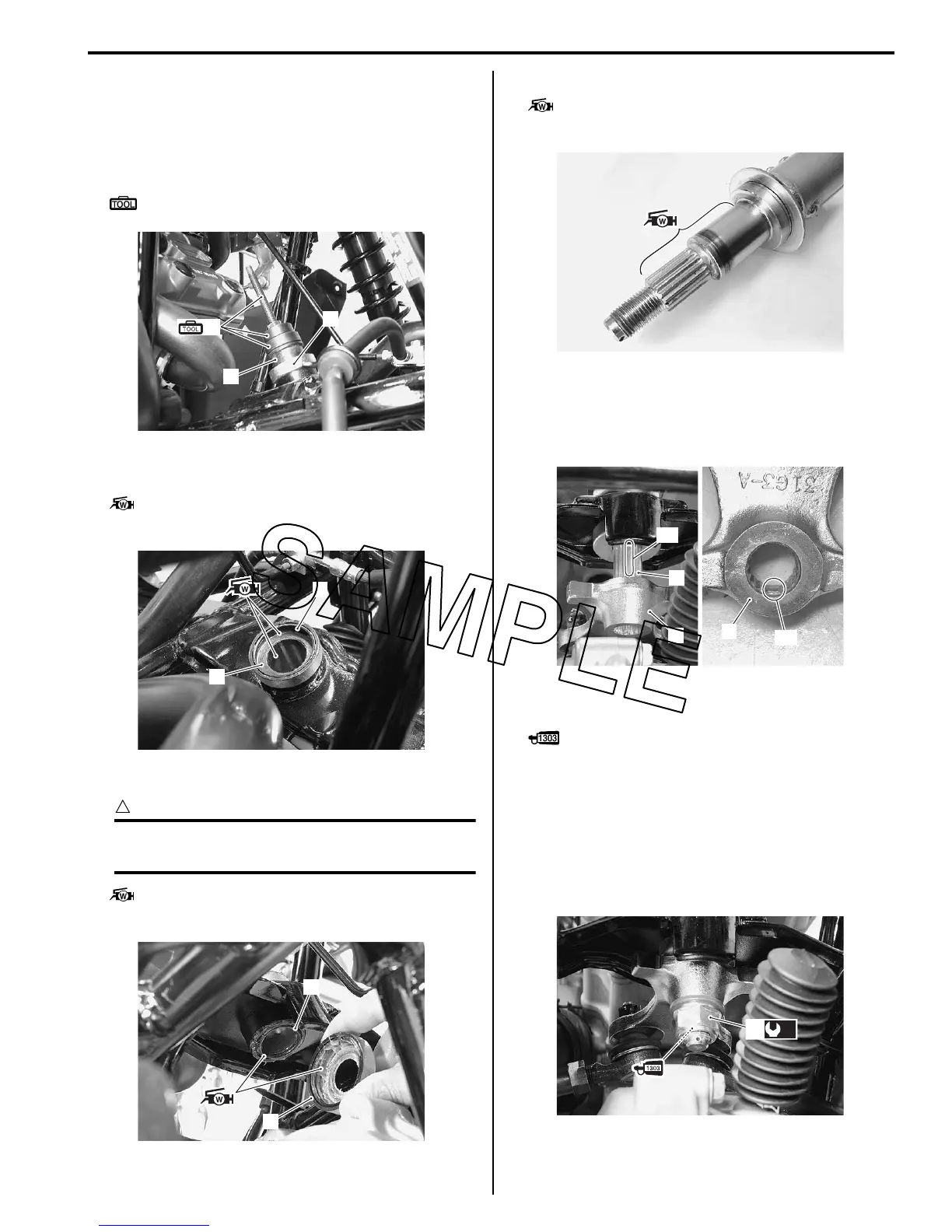

Installation
Install the steering shaft in the reverse order of removal.
Pay attention to the following points:
• Install the steering shaft bushing (1) along with dust
seal (2) with the special tool.
Special tool
(A): 09924–84521 (Bearing installer set)
• Apply grease to the steering shaft bushing (1) and
dust seal (2) and install them.
: Grease 99000–25160 (Water resistance
grease or equivalent)
• Apply grease to the lower dust seal (3) and O-ring (4).
CAUTION
!
The removed O-ring must be replaced with a
new one.
: Grease 99000–25160 (Water resistance
grease or equivalent)
• Apply grease to the steering shaft.
: Grease 99000–25160 (Water resistance
grease or equivalent)
• Install the steering shaft.
• When installing the steering arm plate (5), align the
wide spline “A” of steering shaft (6) with the wide
spline “B” of steering arm plate (5).
• Apply a small quality thread lock to the thread part of
steering shaft.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER “1303” or
equivalent)
• Tighten the steering shaft lower nut (7) to the specified
torque.
Tightening torque
Steering shaft lower nut (a): 162 N·m (16.2 kgf-m,
117.0 lbf-ft)
(A)
2
1
I931G3620014-01
2
1
I931G3620015-01
4
3
I931G3620016-01
I931G3620017-01
6
5
“A”
“B”
6
I931G3620018-01
(a)
7
I931G3620019-01
