Operating Basics
1-12 AFG3000 Series Arbitrary/Function Generators Reference Manual
Level Meter. Amplitude level is displayed. To protect your DUT (device under test),
use the Output Menu to set the limit values for high level and low level. Figure 1-9
shows Level Meter.

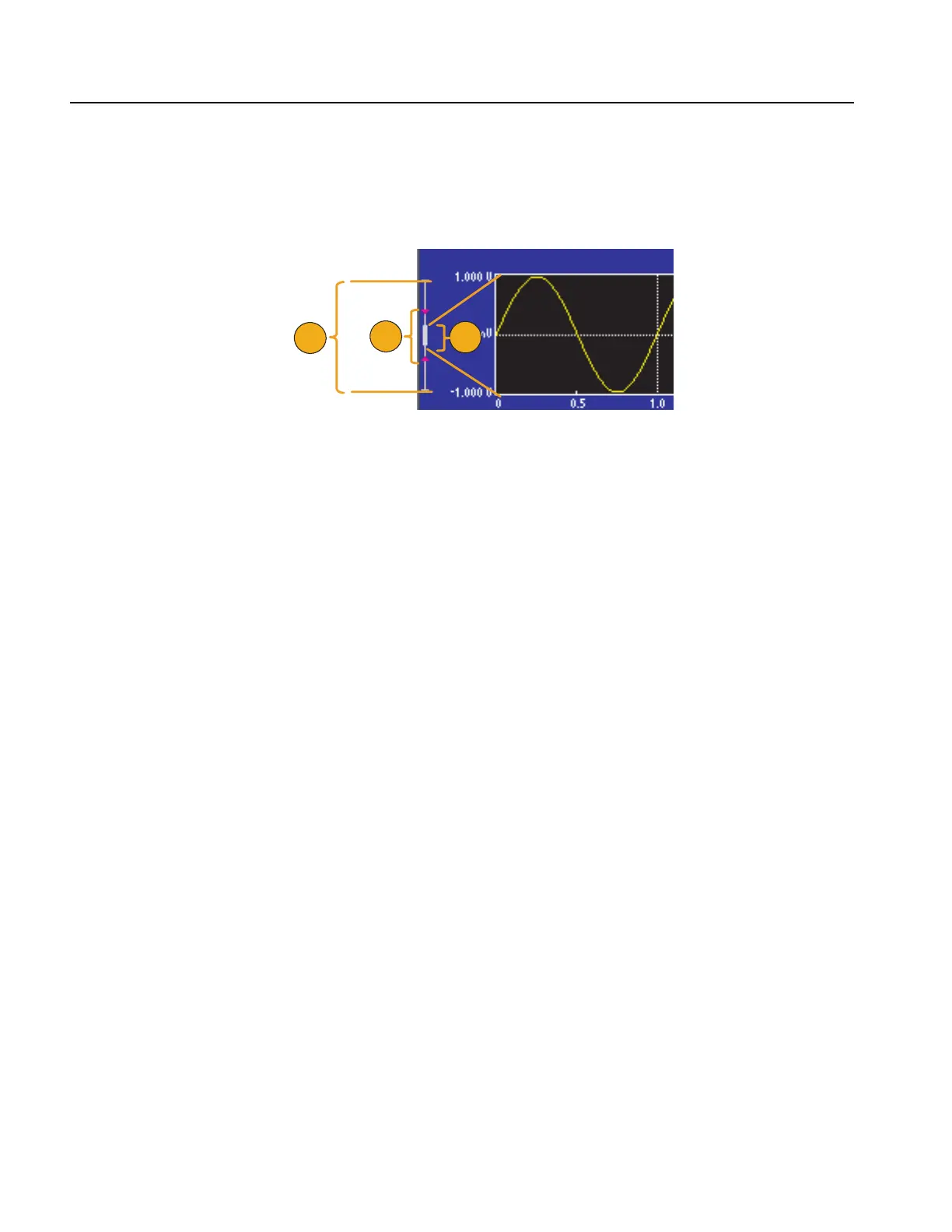

Figure 1-9: Level meter
1. Shows maximum amplitude level of your instrument.
2. Shows the range of high limit and low limit that you have set.
3. Shows the amplitude level that is currently selected.
Message Display Area
A message that monitors hardware status such as clock or trigger is displayed in
this area.
The arbitrary/function generator displays a message at the top of the screen, which
conveys the following types of information about hardware status:
îš„ External Reference out of range
îš„ Waiting for Trigger
You can also display a text message in this area by using the following remote
command. See page 3-20.
DISPlay[:WINDow]:TEXT[:DATA]
