2-22 AFG3000 Series Arbitrary/Function Generators Reference Manual
Paste at End. The Paste at End appends the contents of the user waveform
memory (User1, User2, User3, or User4), USB memory, or the current contents of
edit memory at the end of the waveform currently being edited. When this opera-
tion is executed, the Number of Points setting is automatically modified. If this
operation would cause the waveform to exceed 65,536 (AFG3021 or AFG3022) or
131,072 (AFG3101/AFG3102 and AFG3251/AFG3252) points, the waveform
append will not be executed.

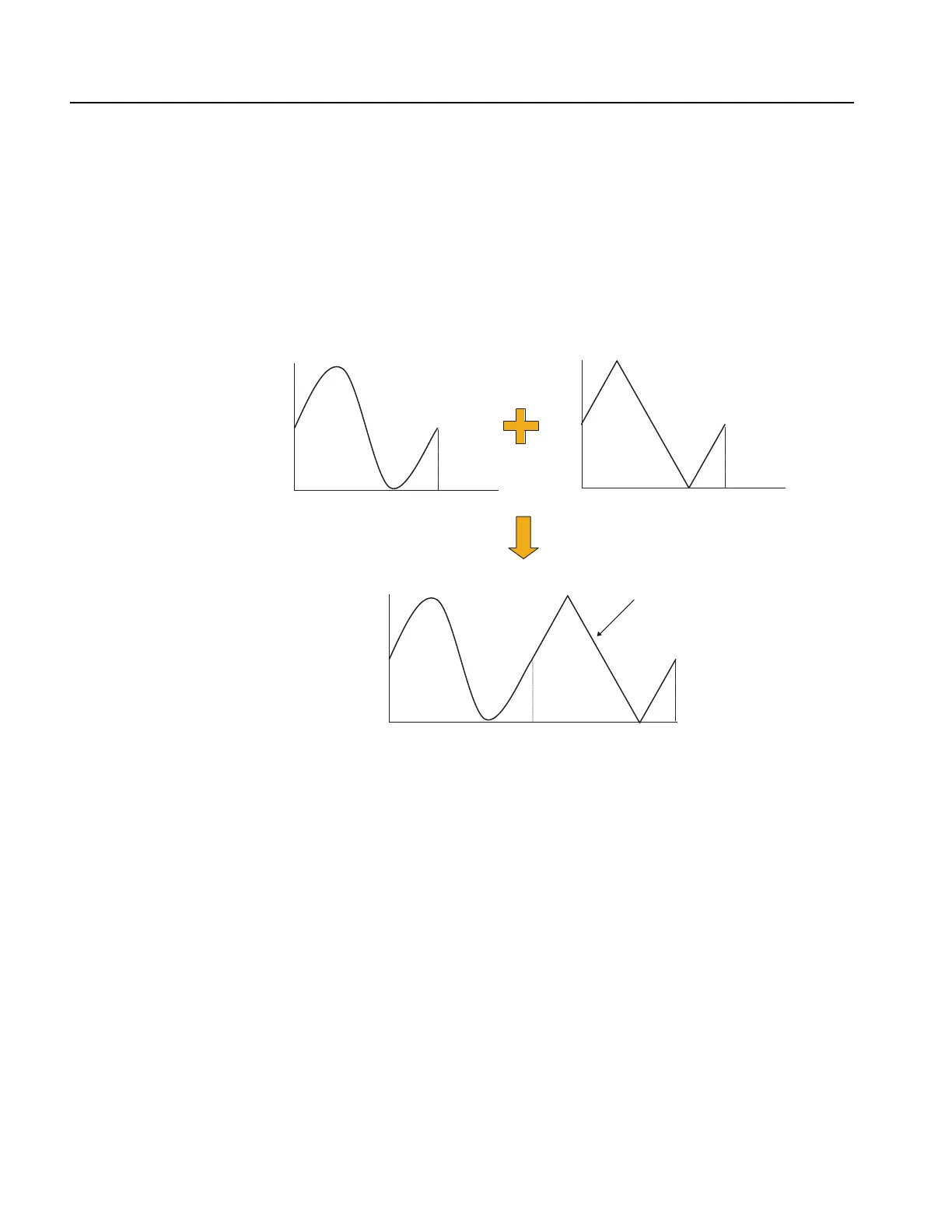

Figure 2-9: Paste at End
Write to... The currently edited waveform is in Edit Memory. If the instrument
power is turned off, the contents of Edit Memory will be lost. To allow this wave-
form to be used the next time the power is turned on, the contents of Edit Memory
must be saved into the user waveform memory or a USB memory.
For more information on saving a user-defined waveform file, refer to Saving a
Waveform File on page 2-29.
Waveform in Edit Memory
Waveform stored in internal or USB memory
Waveform after executing Paste at Beginning
Stored waveform is pasted at the end of the
waveform being edited.
1000
1000
1000
2000
