Line (Line Edit). The Line edits by linearly interpolating from a specified point in
the waveform currently edited to another specified point as shown in Figure 2-5.
Figure 2-5: Line Edit example
Data (Edit by Data Point). The Data edits a specified point in the waveform cur-
rently being edited.
Figure 2-6: Operation – Edit by Data Point
If you enter a number that exceeds the number of points in the current waveform,
the entered value will be automatically changed to the number of points in the cur-
rent waveform.
If you push the Execute bezel button in the Data operation, the instrument will
auto-increment to the next point. For example, you specify a data point X and then
push Execute, the instrument will automatically move from point X to X + 1 in
anticipation of your next input.

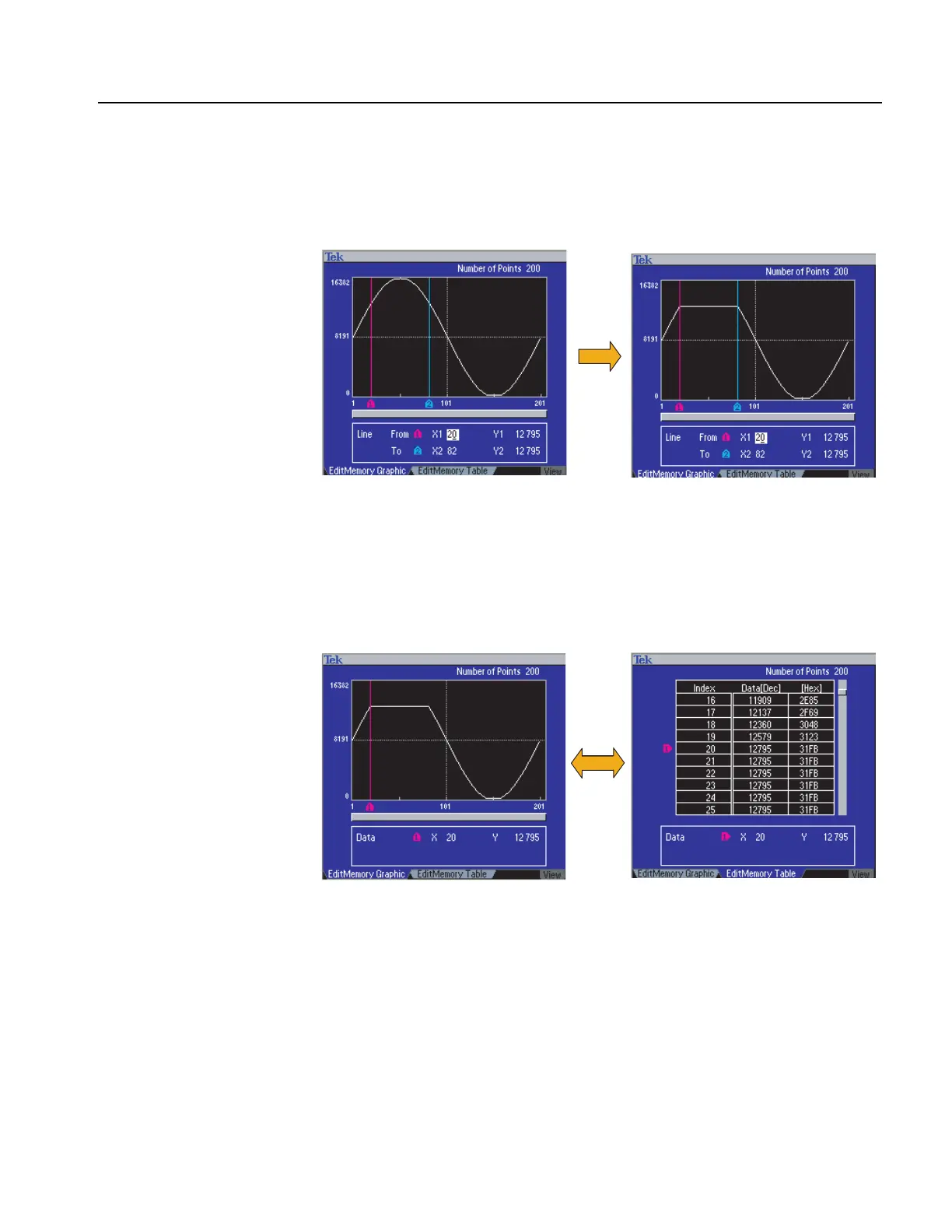

Before executing Line edit
After executing Line edit
Data – Graph display
Data – Table display
