Tektronix AFG3000 Series Reference Manual

Operating Basics
AFG3000 Series Arbitrary/Function Generators Reference Manual 1-19
Rear Panel

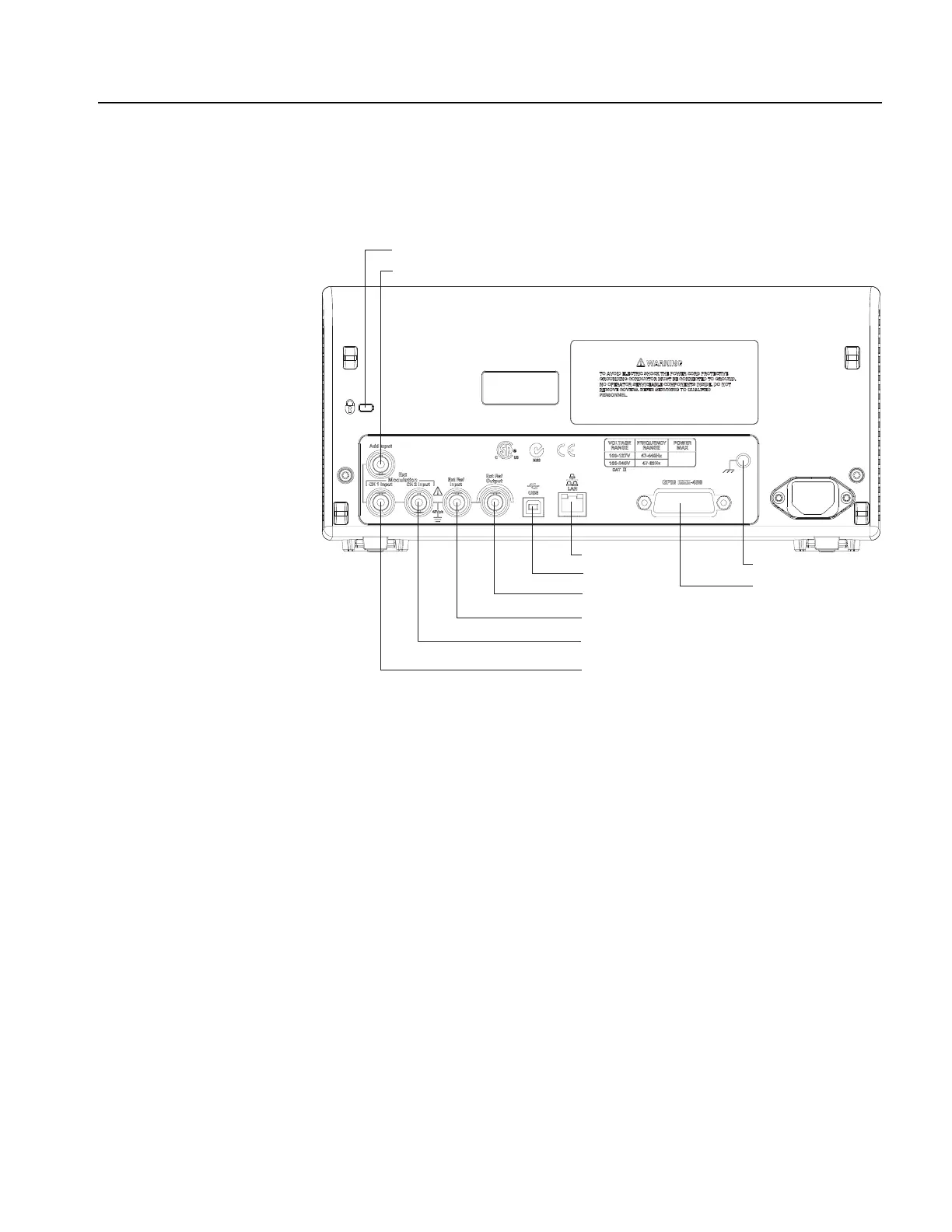

Figure 1-21 shows the locations of the instrument rear panel connectors.
Figure 1-21: Rear panel connectors
EXT REF INPUT. This input is used when synchronizing multiple arbitrary/function
generators or an arbitrary/function generator and another device.
EXT REF OUTPUT. This output is used when synchronizing multiple arbitrary/func-
tion generators or an arbitrary/function generator and another device.
ADD INPUT. (Dual-channel model only) Additional Input connector allows you to
input a signal from some other source and add that signal to CH 1 output.
EXT MODULATION CH 1 INPUT. A signal applied to the External Modulation CH 1
Input connector is used to modulate the CH 1 output signal. The signal input level
applied to this connector will control the modulation depth.
EXT MODULATION CH 2 INPUT. (Dual-channel model only) The External Modula-
tion CH 2 Input connector is used to apply an external modulating signal to the CH
2 output signal. The signal input level applied to this connector will control the
modulation depth.
120
VA
Security slot
ADD INPUT
GPIB
Chassis ground screw
LAN
USB
EXT REF OUT
EXT REF INPUT
EXT MODULATION CH2 INPUT
EXT MODULATION CH1 INPUT
