Operating Basics

AFG3000 Series Arbitrary/Function Generators Reference Manual 1-17

Changing Parameters

Using the Shortcut

Buttons

The shortcut buttons are provided for experienced users. The buttons allow you to

select a setup parameter without using any bezel menu selection. The following

example shows how the Frequency/Period shortcut button works.

You can use the shortcut buttons while viewing any of the display formats. Push a

shortcut button to display the last view type and highlight the selected parameter

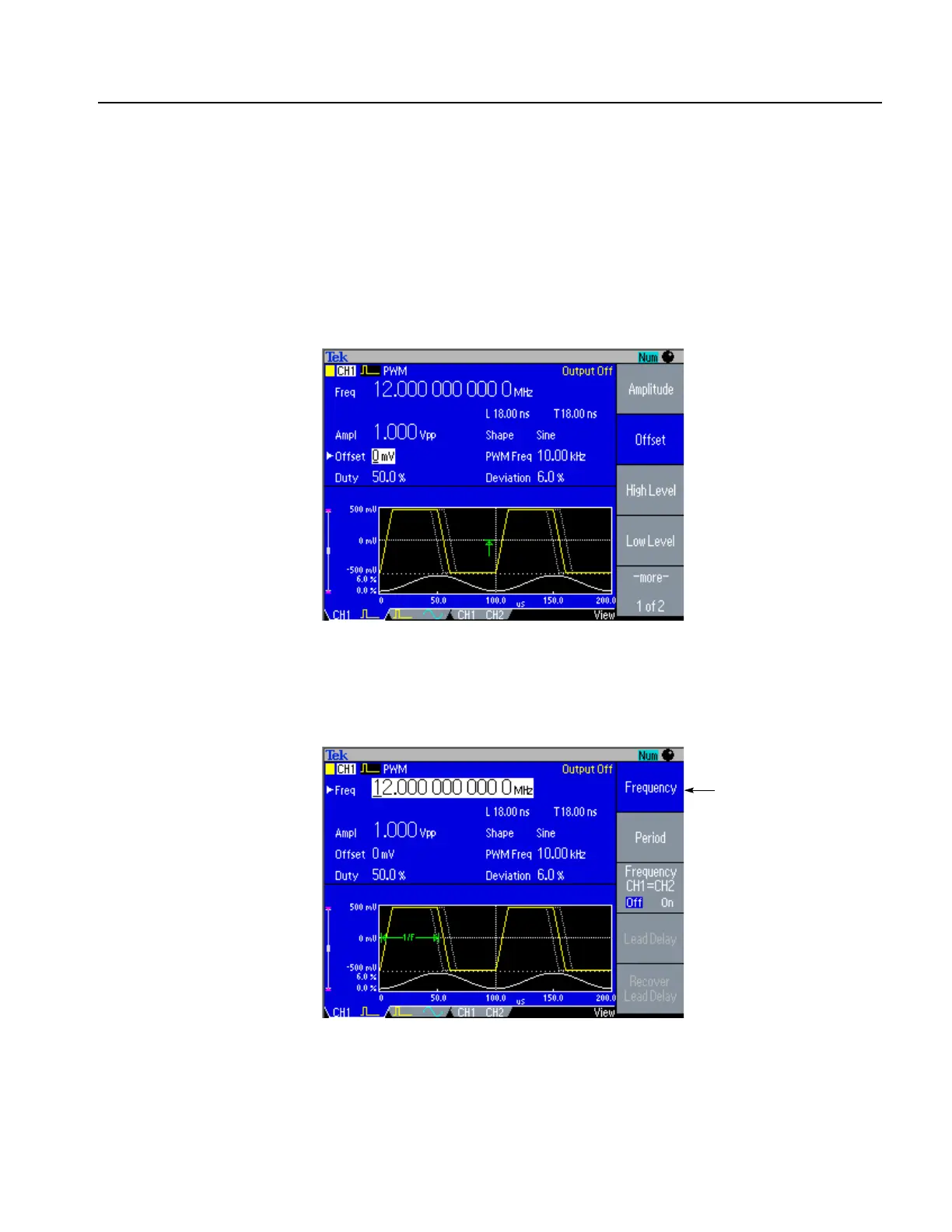

setting. Figure 1-18 is a sample screen of Pulse Width Modulation parameter menu

display.

Figure 1-18: PWM sample screen

From Figure 1-18, pushing the Frequency/Period shortcut button will change the

bezel menu to look like Figure 1-19.

Figure 1-19: PWM parameter menu (Freq is selected)

Frequency is active.
