Operating Basics

1-16 AFG3000 Series Arbitrary/Function Generators Reference Manual

You can also change the value with the front-panel numeric key-pad. Entering any

value from the numeric key-pad will automatically change the bezel menu to Units.

See Figure 1-16.

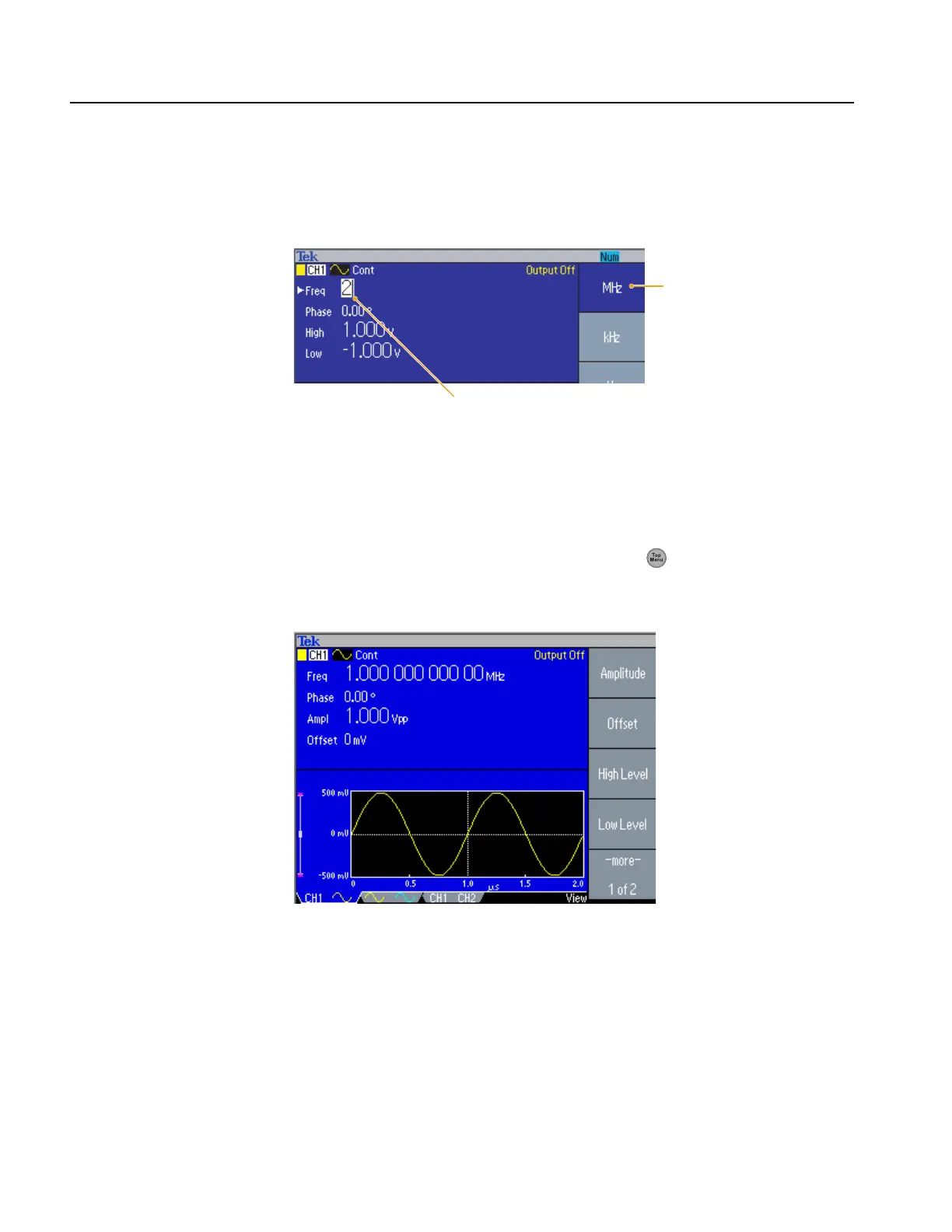

Figure 1-16: Screen display with Frequency active (4)

After entering the frequency value, push the Units bezel button or the front-panel

Enter button to complete the entry.

To change the amplitude value, push the Top Menu button, and then select the

Amplitude/Level Menu bezel button. You can change the values of amplitude,

offset, high level, or low level.

Figure 1-17: Amplitude/Level Menu

The bezel menu is

changed to “Units”.

The value “2” is entered.
