Bezel Menu Display Area
When you push a front panel button, the instrument displays the corresponding
menu on the right side of the screen. The menu shows the options that are available
when you push the unlabeled bezel buttons directly to the right of the screen. (Some
documentation may also refer to the bezel buttons as side-menu buttons or soft
keys.)
The AFG3000 Series Arbitrary/Function Generators use four types of menu button
status. See Figure 1-10.

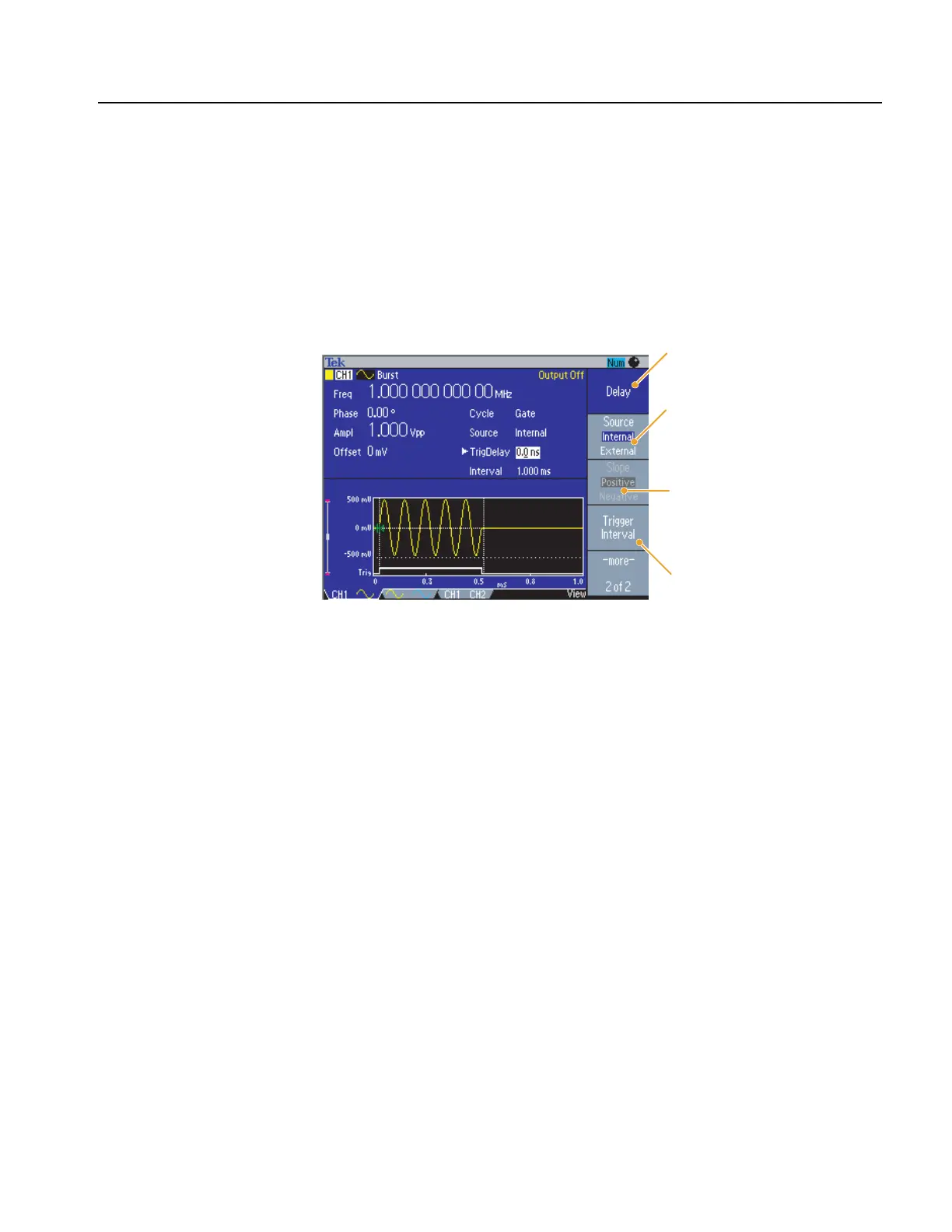

Figure 1-10: Graphical representation of button status
 Focused (active) – Blue background and white type
The bezel menu item is currently selected.
 Non-Focused – Medium gray background and white type, blue box around
type only
There are some toggle button selections within the bezel menus. For example,
Internal and External. You can specify either one but not both of these
parameters.
 Inactive – Medium gray background and light gray type
This selection is currently not available because of the other instrument
settings.
 Normal (default) – Medium gray background and white type
This is the currently unselected state.
Currently selected and active (focused)
Toggle button selection. This shows that
currently selected option (Internal) is
highlighted.
Inactive. This selection is currently not
available.
Normal (default) This shows unselected
state.
