Tektronix CSA7404B User Manual

Creating and Using Math Waveforms
3- 184
CSA7000B Series & TDS7000B Series Instruments User Manual
Resolution 0.04 ms
Duration1ms
Record length 25
Record length 50
Duration2ms
Resolution 0.04 ms
Record length 25
Duration2ms
Resolution 0.08 ms
Duration2ms
Record length 100Resolution 0.02 ms
Adjust Duration via
sample rate
Adjust Duration via
record length
Adjust Resolution
Duration remains
constant

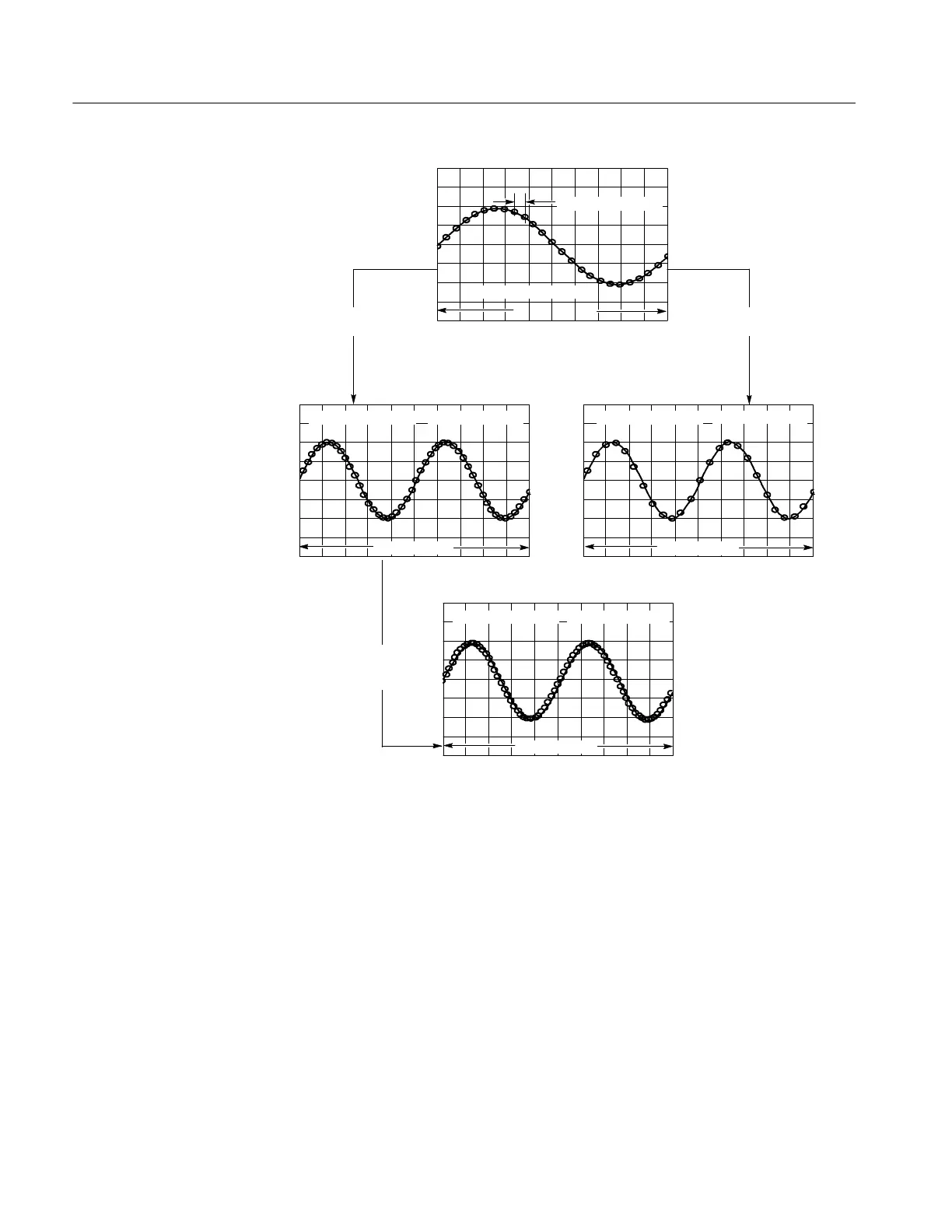

Figure 3- 47: Duration and resolution control effects
Using the gate controls. Gating determines what portion of the acquired
waveform is transformed into the frequency domain. The gate has a position and
a width control.
The gate position is the time in seconds from the trigger location to the center
50% position of the gate interval (see Figure 3--48). The position and width units
are seconds.

Tektronix CSA7404B Specifications

General

Bandwidth	4 GHz
Sample Rate	20 GS/s
Sample Rate (Maximum)	20 GS/s
Channels	4
Vertical Resolution	8 bits
Record Length	100 Mpoints
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Vertical Sensitivity	1 mV/div
Display	color LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms (50 Ω)
Trigger Modes	Edge
Interface	USB, GPIB, Ethernet
