Overview Control elements and resourcesTo use exported waveforms (Cont.)
For further
assistance
9. For more help on exporting waveforms, touch the
Help button in the window to access contextual online
help.
See page 3--263 to learn about accessing online help.

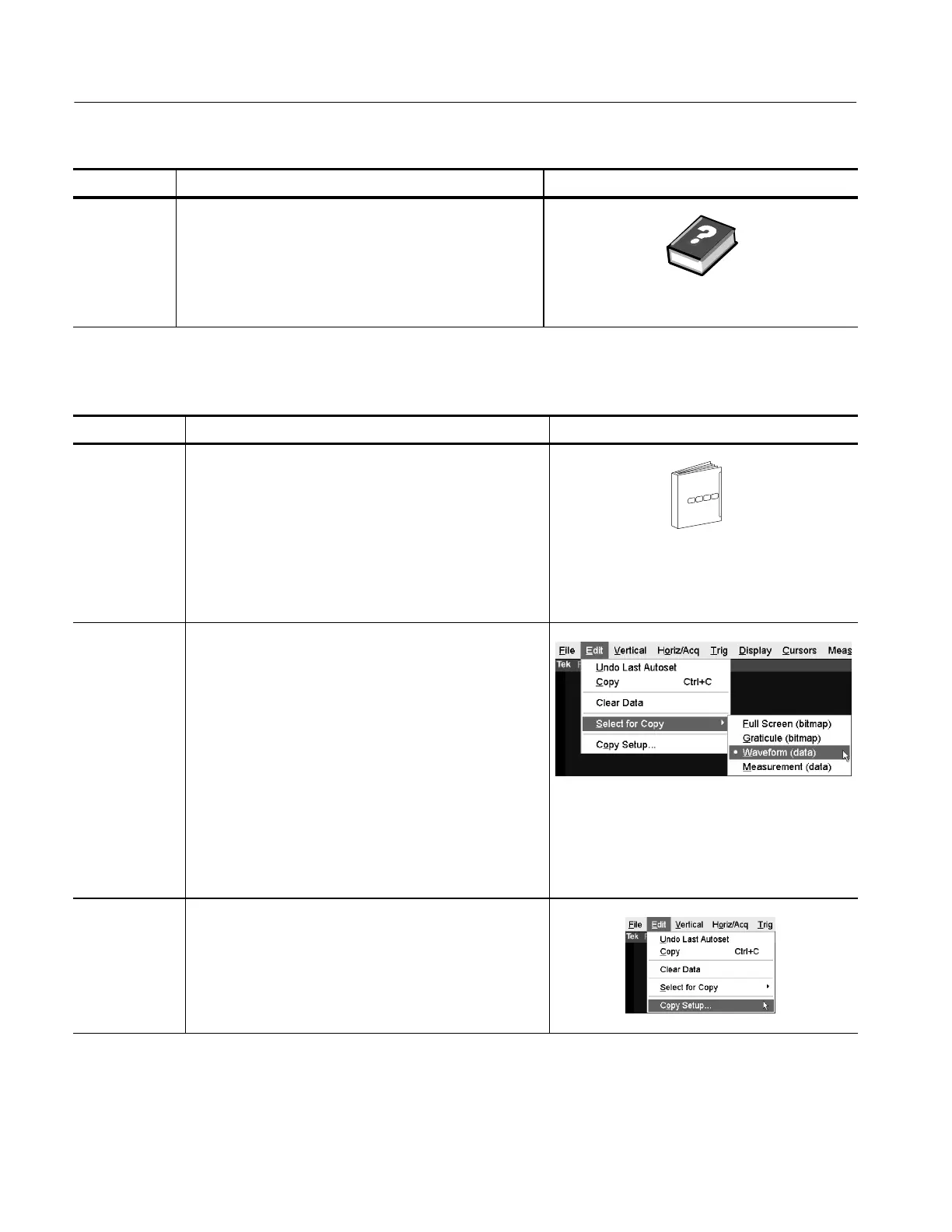

Use the procedure that follows to copy a waveform to the clipboard.
Overview To save a waveform Control elements and resources
Prerequisites 1. Make sure the waveform, image, or measurement to be
copied exists; that is, your source must be a channel, an
active math waveform, an active reference, and so forth.
H See Powering On the Instrument on page 1--9.
H See page 3--29 for acquisition setup.
H See page 3--63 for trigger setup.
Select for copy 2. From the menu bar, select Edit, and then select Select
for Copy.
The menu lists all available waveform, image, and
measurement types available for export:
H Full Screen to export a bitmap of all screen
contents
H Graticul e to export a bitmap of only the graticule
area
H Waveform to export waveform data
H Measurement s to export measurement data
Select setup for
copy
3. From the menu bar, select Edit, and then select Copy
Setup to display the Copy Setup control window.
To Copy Your Waveform
To Next Page
