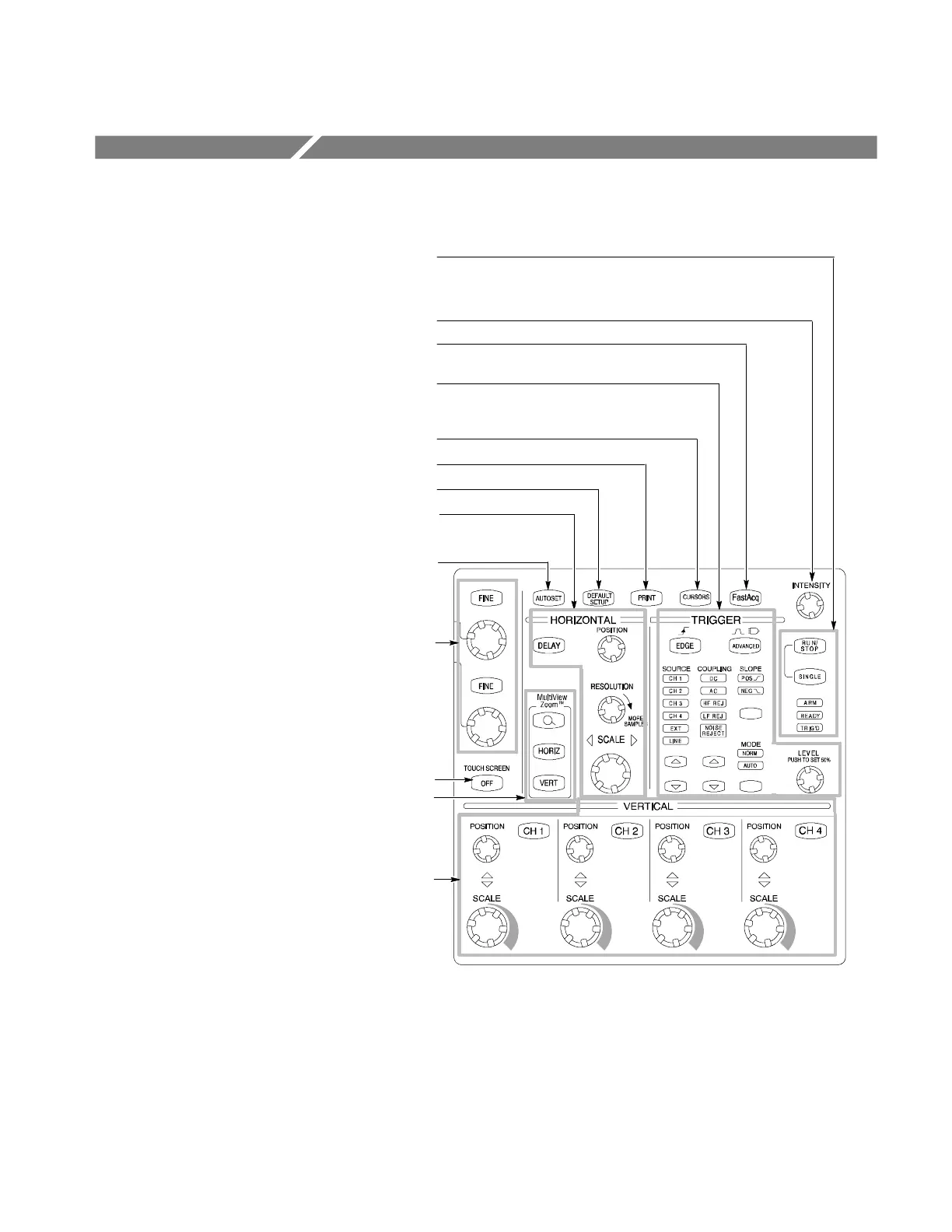

Front- Panel Map -- Quick Access to Most Often Used Features
Push to turn the touch screen on and off. Page 3--123.
Use these buttons to start and stop acquisition or start a single
acquisition sequence. The ARM, READY, and TRIG’D lights
show the acquisition status. Page 3--72.
Push to make a hard copy. Page 3--250.
Push to automatically set up the vertical, horizontal, and trigger
controls based on selected channels. Page 3--15.
Push to return settings to default values. Page 3--16.
Turn channel displays on and off. Vertically scale or position the
waveform. Page 3--8.
Horizontally scale, position, delay, and set record length
(resolution) of selected waveform. Page 3--20.
Turn knob to adjust waveform intensity. Page 3--46.
Push to turn cursors on or off. Page 3--151.
Turn the multipurpose knobs to adjust parameters selected from
the screen interface. Push a Fine button to toggle between
normal and fine adjustment with its multipurpose knob.
Page 3--154.
Push button to turn Fast Acquisition on or off. Page 3--40.
Use these knobs and buttons to set the trigger parameters. Push
ADVANCED to display additional trigger functions. Pages 3--63
and 3--77.
Push MultiView Zoomt to add a magnified graticule to the
display. Push HO RIZ or VERT to select the axis to magnify.
Page 3--125.
