4.9 Display Assembly 4 Replacement Procedures
M2 5x5 white bind screw.
CN1
LCD FL cable/
Wireless LAN antenna
MIC cable
CCD cable
CN5
CN6

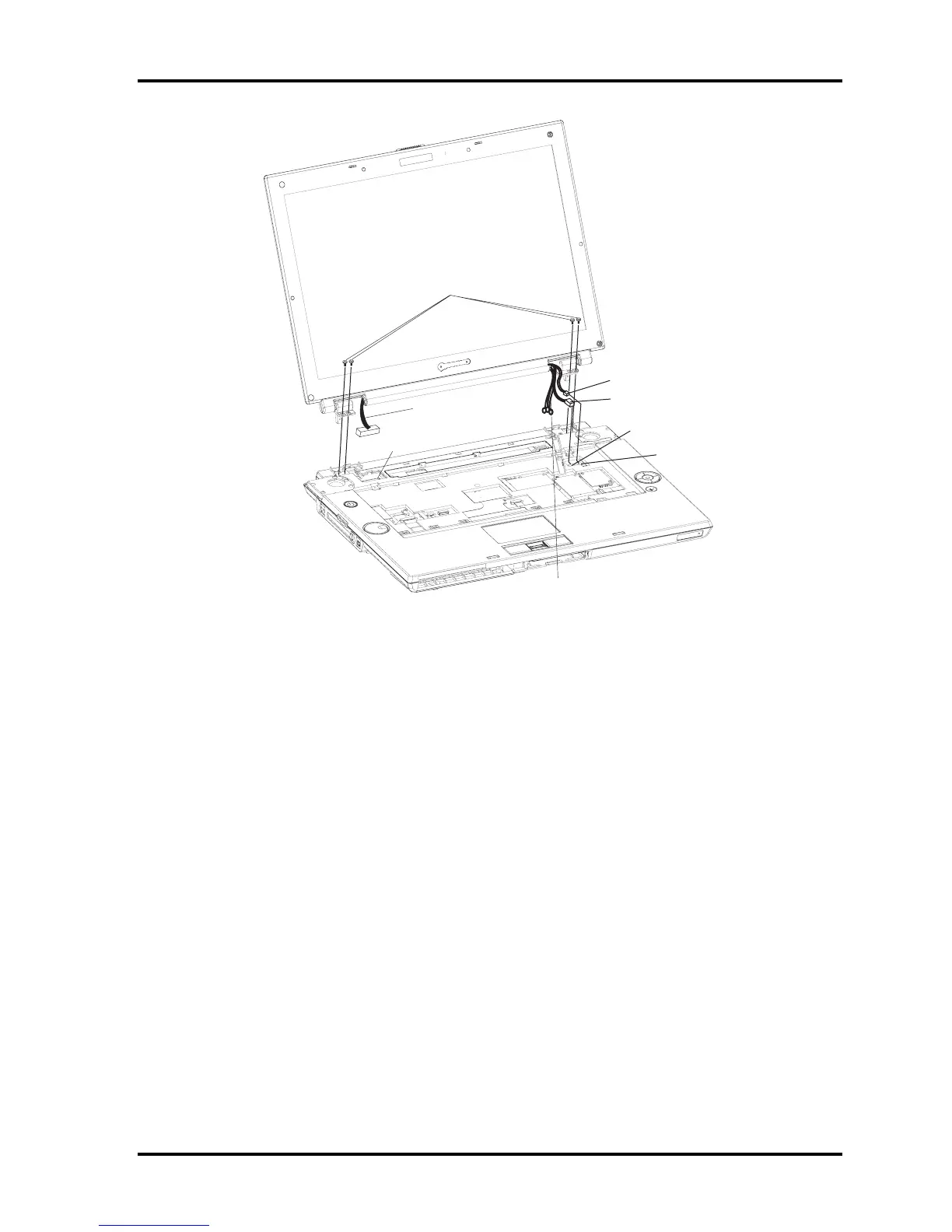

Figure 4-19 Removing the display assembly
Installing the Display Assembly
Install the display assembly according to the following procedures and Figures 4-18, 4-19.
1. Place the display panel in the correct position and push the wireless antenna cable,
MIC cable and CCD cable into the top cover.
2. Connect the LCD/FL cable to CN3, MIC cable to CN5 and CCD cable to CN6 on the
system board.
3. Secure the display assembly with four M2.5x5 white flat head screws.
4. Close the display panel and turn the computer so the rear is facing you and secure two
M2.5x8 black flat head screws.
Qosmio F40/F45 Maintenance Manual 4-39
