4 Replacement Procedures 4.21 CCD Board and MIC
4.21 CCD Board and MIC
Removing the CCD Board and MIC
Remove the FL inverter board according to the following procedures and Figure 4-37.
1. Disconnect the CCD cable from the CCD module connector and remove the CCD
board.
CCD board
MIC
CCD board cable

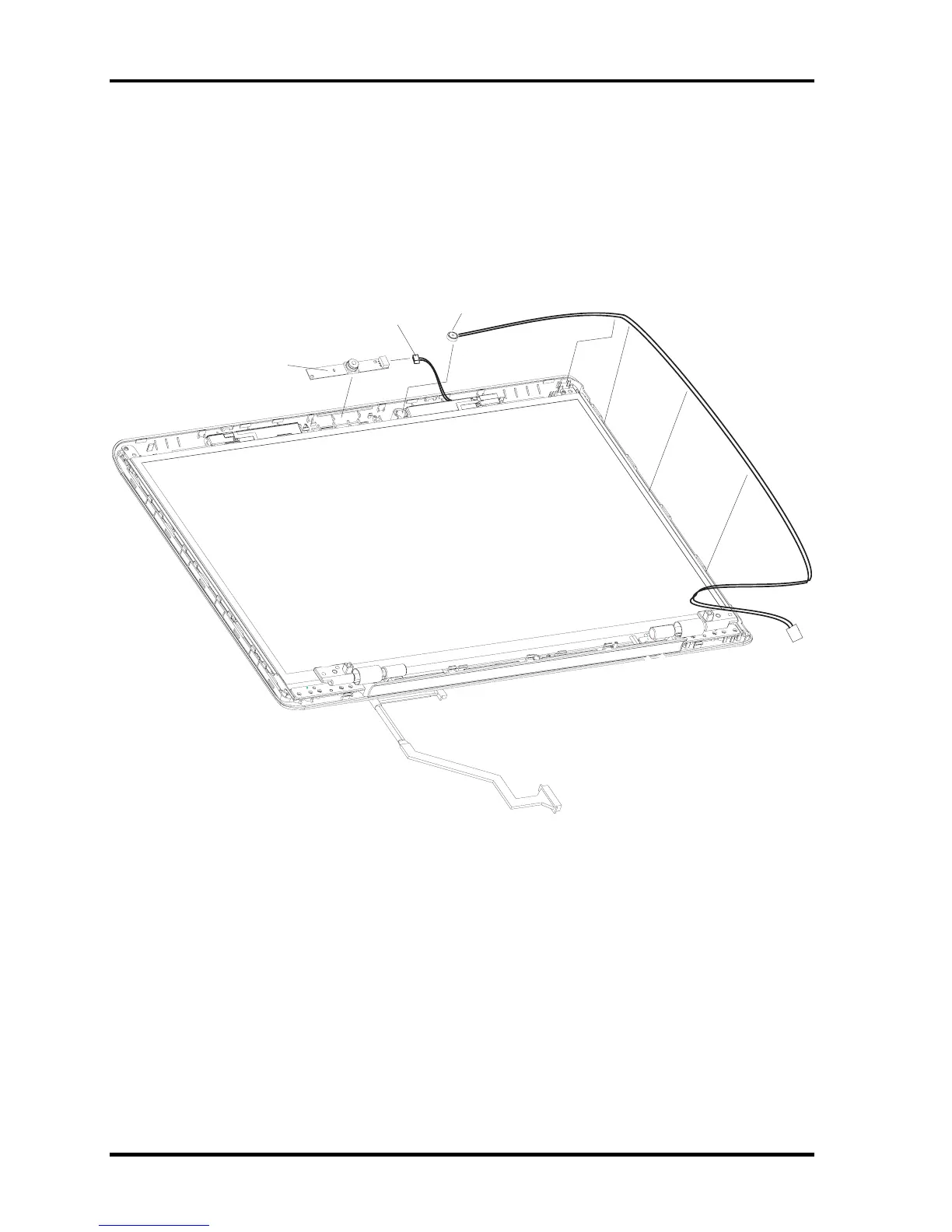

Figure 4-37 Removing the CCD board and MIC
2. Lift the MIC from the display rear cover.
4-66 Qosmio F40/F45 Maintenance Manual
