Broadcom Card 4 Replacement Procedures
4.16 Broadcom Card
Removing the Broadcom Card
Remove the Broadcom card according to the following procedures and Figure 4-31.
CAUTION: Do not touch the connectors on the Broadcom card and in the computer
with your bare hands. Broadcom card can fail if they are contaminated with sweat,
natural oils, etc. from your hands.
1. Remove the two M2x2 black bind screws securing the Broadcom card.
2. Pull the wireless Broadcom card up and out at an angle.
M2x3 black head screw
Broadcom card

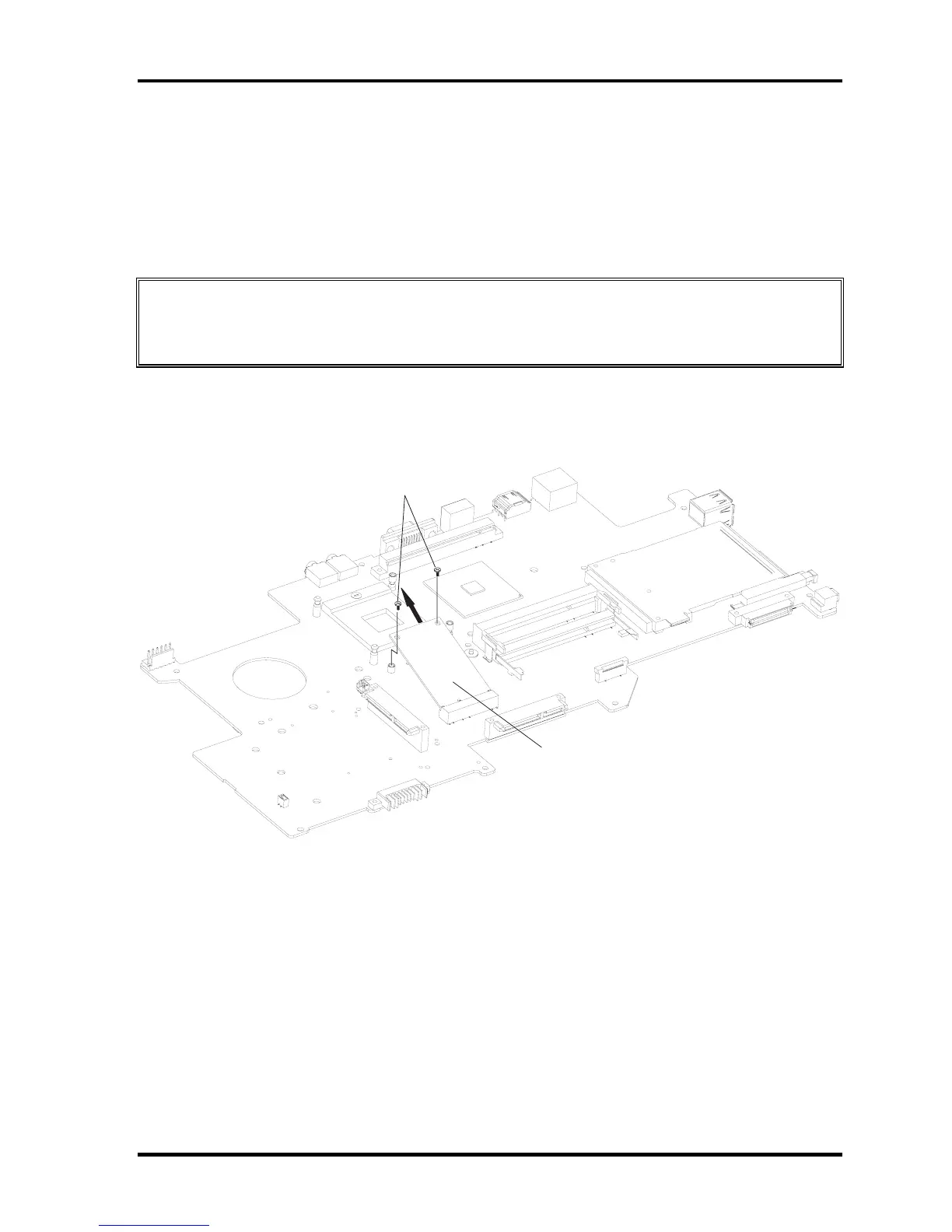

Figure 4-31 Removing the Broadcom card
Qosmio F40/F45 Maintenance Manual 4-55
