4.18 Display Mask 4 Replacement Procedures
4.18 Display Mask
Removing the Display Mask
Remove the display mask according to the following procedures and Figure 4-33.
1. Remove the following 4 seals on the display module in that order:
- Two black seals on the bottom
- Two black seals on the top
2. Remove the following 4 screws on the display module, in that order:
- Two M2.5x5 white flat head screws on the top
- Two M2.5x5 white flat head screws on bottom
3. Release the following 31 latches on the display mask, in that order:
- Thirteen bottom latches
- Five latches on each of the left and right sides
- Eight top latches
M2 5x4 white
flat head screw
.
Seal
M2 5x4 white
flat head screw
.
Seal
Display mask
Latch

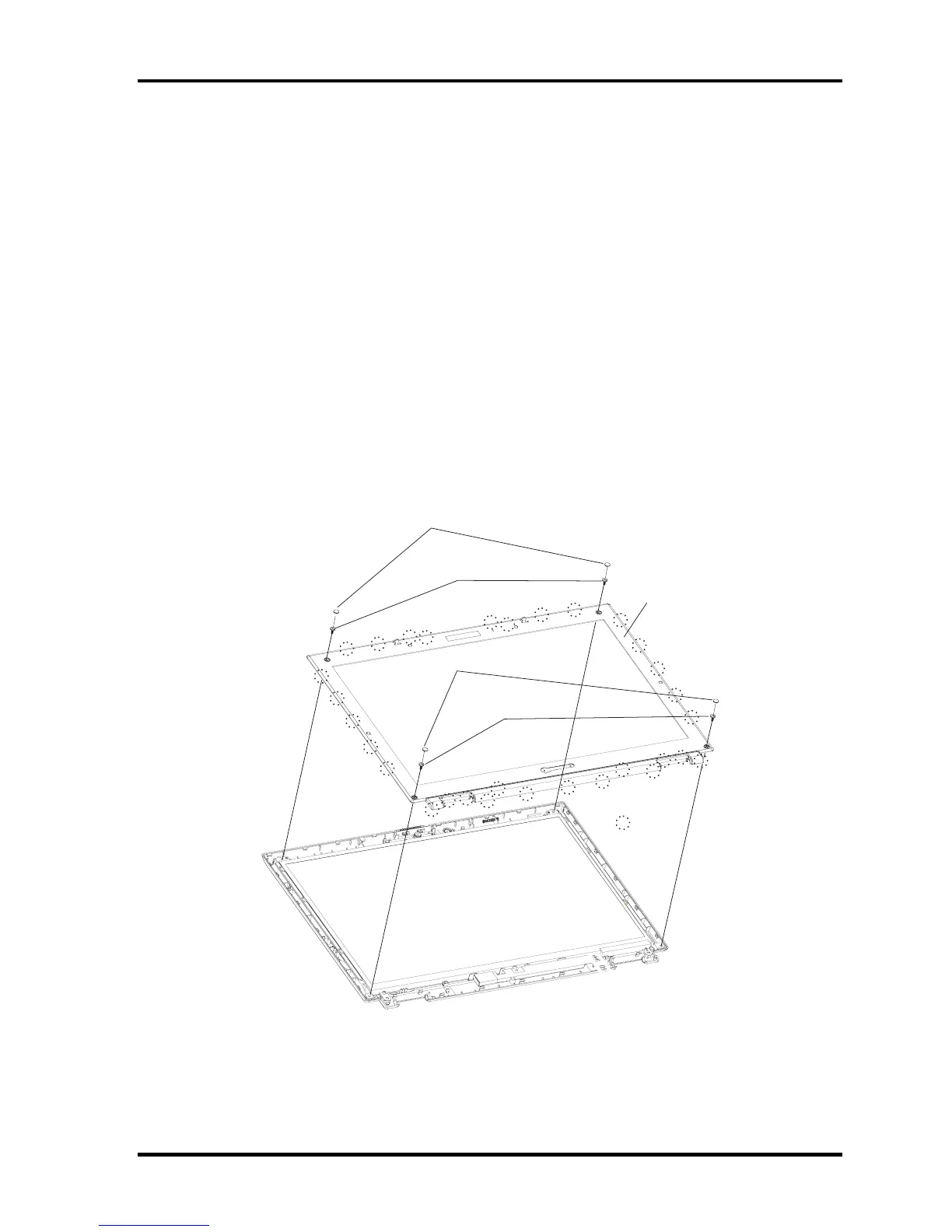

Figure 4-33 Removing the display mask
Qosmio F40/F45 Maintenance Manual 4-59
