2.2 Main Power and Servo Power of TS3000 Controller
2.2.1 Control Panel (TS3000)

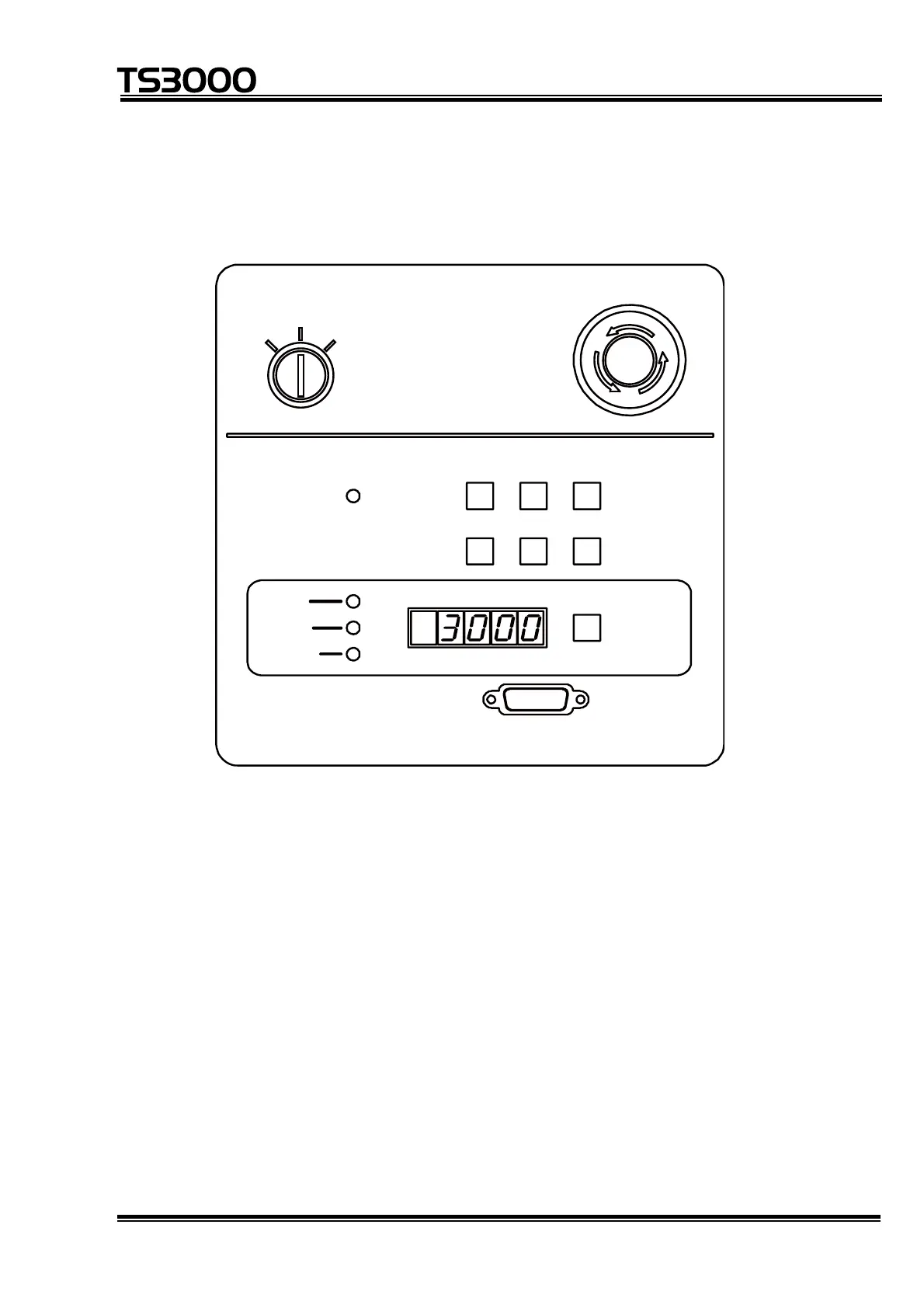

The control panel of TS3000 is shown below.
EMERGENCY
TEACHING
INTERNAL
EXT
SERVO
ON
SERVO
OFF
RUN STOP UF2
UF1
POWER
LINE
USER
ALARM
TP
SELECT
(1) Key switch : Used to select the operation master mode.
(2) SERVO ON switch/LED : Used to turn on the servo power.
(3) SERVO OFF switch/LED : Used to turn off the servo power
(4) RUN switch/LED : Used to start the internal automatic mode
operation.
(5) STOP switch/LED : Used to stop the operation after the active
block has been executed.
(6) SELECT switch/LED : Every time this switch is pressed, content
shown on the display changes.
LINE: No. of program execution steps.
USER: A value set by PLCDATAW1 of the
program.
STE 80720
– 2-2 –
