14.8 Command: Variable Waypoint
14.8 Command: Variable Waypoint

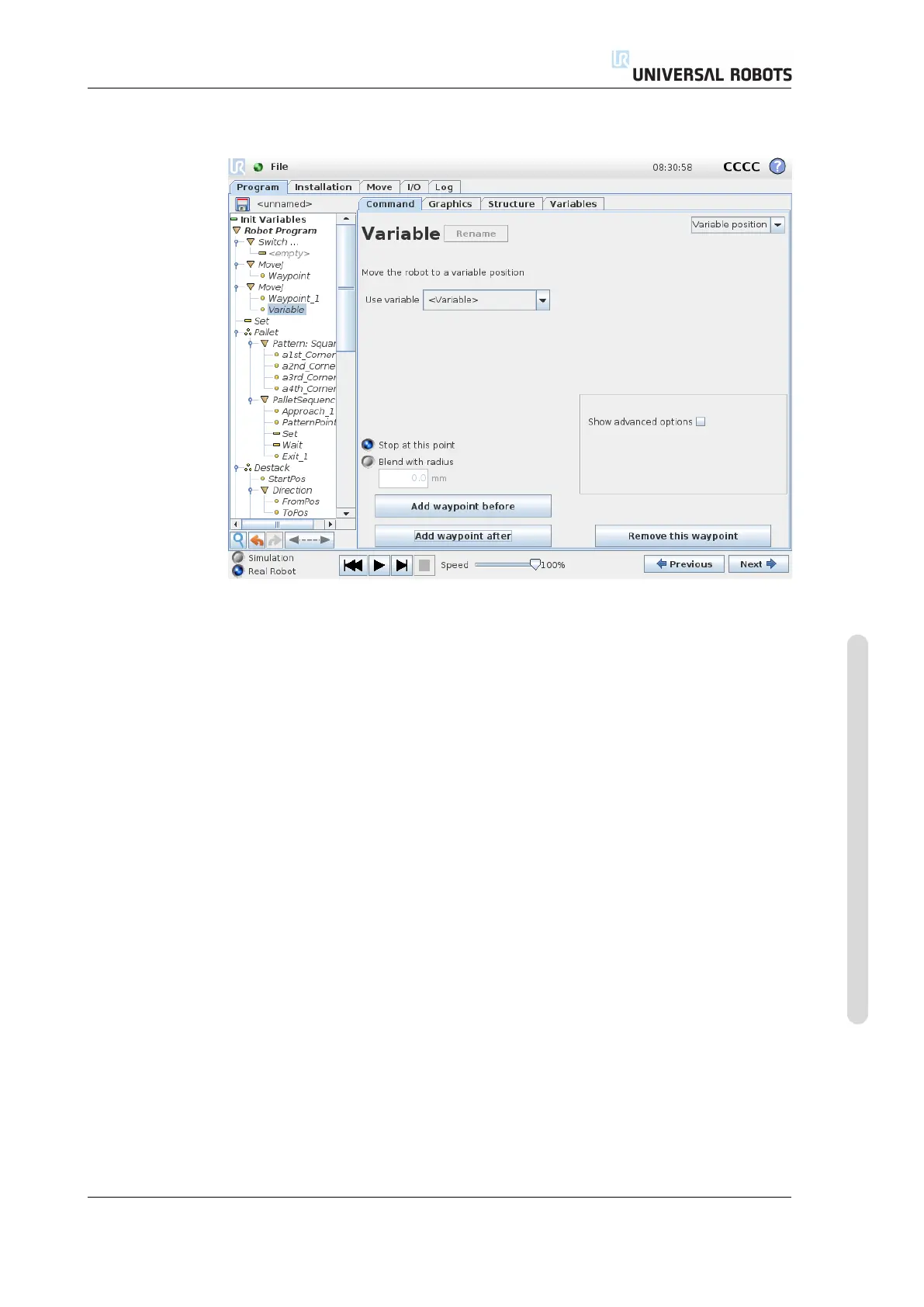

A waypoint with the position given by a variable, in this case calculated_pos.
The variable has to be a pose such as
var=p[0.5,0.0,0.0,3.14,0.0,0.0]. The first three are x,y,z and the last three
are the orientation given as a rotation vector given by the vector rx,ry,rz. The length
of the axis is the angle to be rotated in radians, and the vector itself gives the axis
about which to rotate. The position is always given in relation to a reference frame
or coordinate system, defined by the selected feature. The robot arm always moves
linearly to a variable waypoint. If a blend radius is set on a fixed waypoint and
the waypoints preceding and succeeding it are variable or if the blend radius is set
on a variable waypoint, then the blend radius will not be checked for overlap (see
14.6). If, when running the program, the blend radius overlaps a point, the robot
will ignore it and move to the next one.
For example, to move the robot 20 mm along the z-axis of the tool:
var_1=p[0,0,0.02,0,0,0]
Movel
Waypoint_1 (variable position):
Use variable=var_1, Feature=Tool
Version 3.4.5
