– Fold seat cushion -1- forwards.
– Unscrew bolt -5-.
– Remove left belt end fitting -4-, centre belt end fitting -3- as
well as spacer -2-.
– Unscrew bolt -6-.
– Remove belt end fitting -7-, centre belt buckle -9- with cover
plate -8- and spacer -10-.
Installing
Install in reverse order of removal, observing the following:
Specified torques
Component Specified torque
Bolts for belt end fittings 40 Nm
1.6 Removing and installing belt height ad‐
juster
⇒ “1.6.1 Removing and installing belt height adjuster, Multivan”,
page 127
⇒ “1.6.2 Removing and installing belt height adjuster, Transport‐
er”, page 128
1.6.1 Removing and installing belt height ad‐
juster, Multivan
Special tools and workshop equipment required

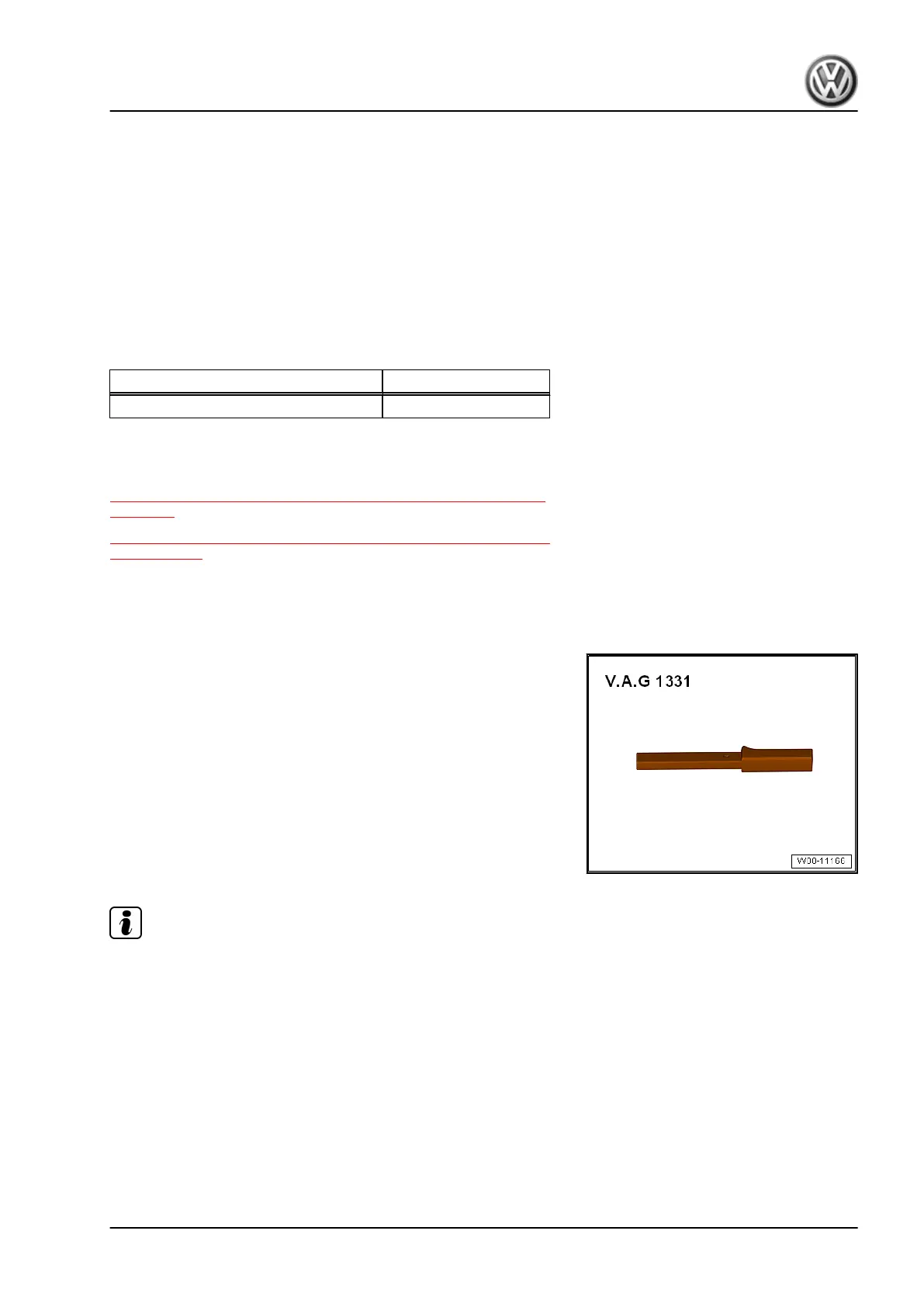

♦ Torque wrench - V.A.G 1331-
Note
The removal and installation procedure is described for the right-
hand side of the vehicle. Removal and installation of the left
vehicle side is similar.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
1. Seat belts 127
