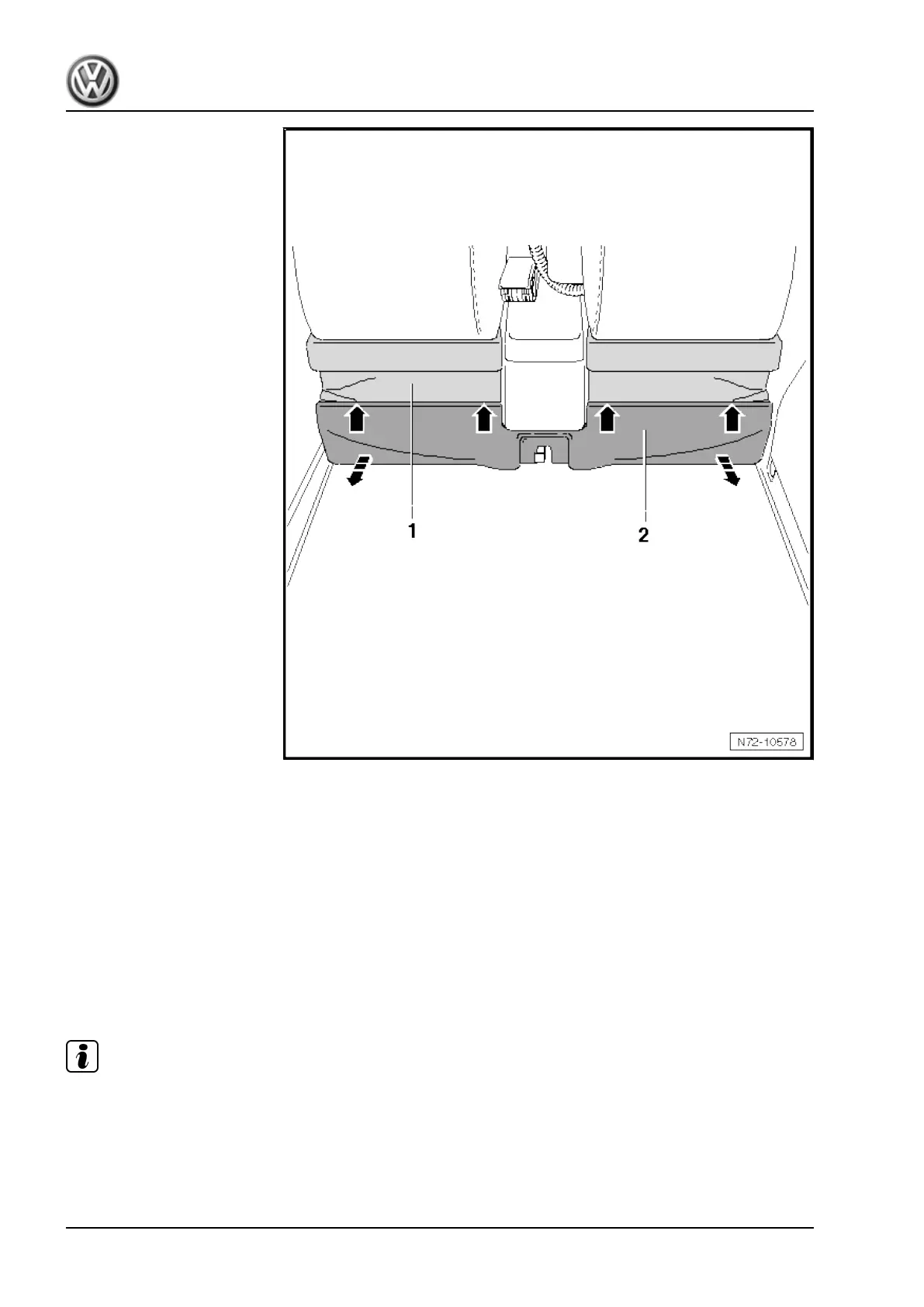

– Detach Velcro fastener -arrow- for upper trim of rear bench
seat -1-.
– Unclip lower trim of rear bench seat -2- from seat frame in
-direction of arrow-.
Installing
Install in reverse order of removal, observing the following:
– Before installing, check retaining clips for damage and renew
as necessary.
4.12 Removing and installing seat adjust‐
ment control element
Note
Removal and installation is described for the seat adjustment
control element on right seat. Removal and installation of seat
adjustment control element on left seat is carried out accordingly.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
418 Rep. gr.72 - Seat frames
