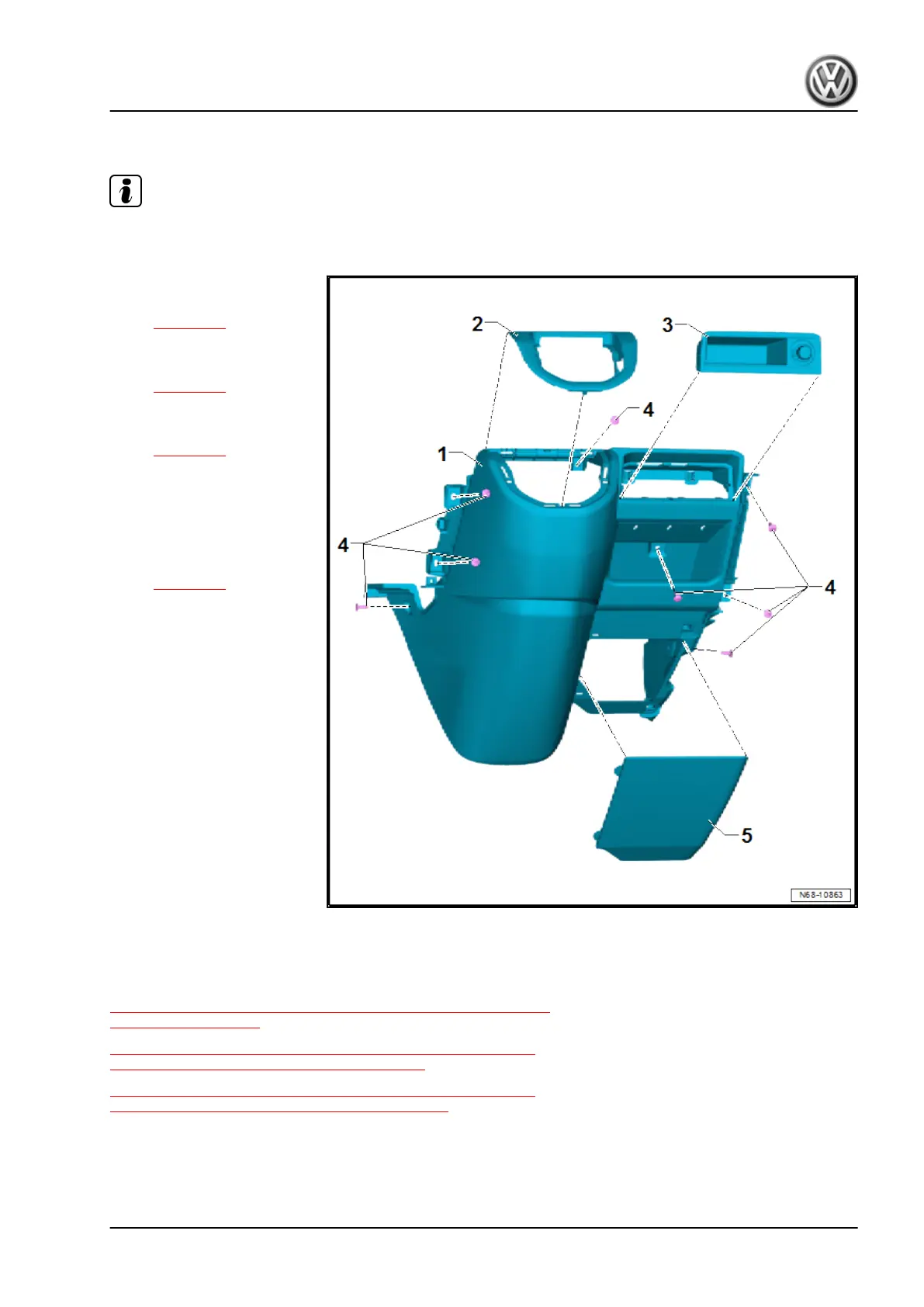

3.1.2 Assembly overview - centre console, Transporter
Note
Minor differences may be encountered during repair work, depending on vehicle model.
1 - Centre console
❑ Removing and installing
⇒ page 63
2 - Upper centre console cover
❑ Removing and installing
⇒ page 59
3 - Storage compartment
❑ Removing and installing
⇒ page 63
4 - Bolts
❑ Qty. 8
❑ 1.5 Nm
5 - Lower centre console cover
❑ Removing and installing
⇒ page 61
3.2 Removing and installing centre console
cover
⇒ “3.2.1 Removing and installing centre console cover, Multivan,
Transporter”, page 59
⇒ “3.2.2 Removing and installing centre console cover, Trans‐
porter, cover on gear selector guide”, page 61
⇒ “3.2.3 Removing and installing centre console cover, Trans‐
porter, lower right centre console cover”, page 61
3.2.1 Removing and installing centre console
cover, Multivan, Transporter
Special tools and workshop equipment required
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
3. Centre console 59
