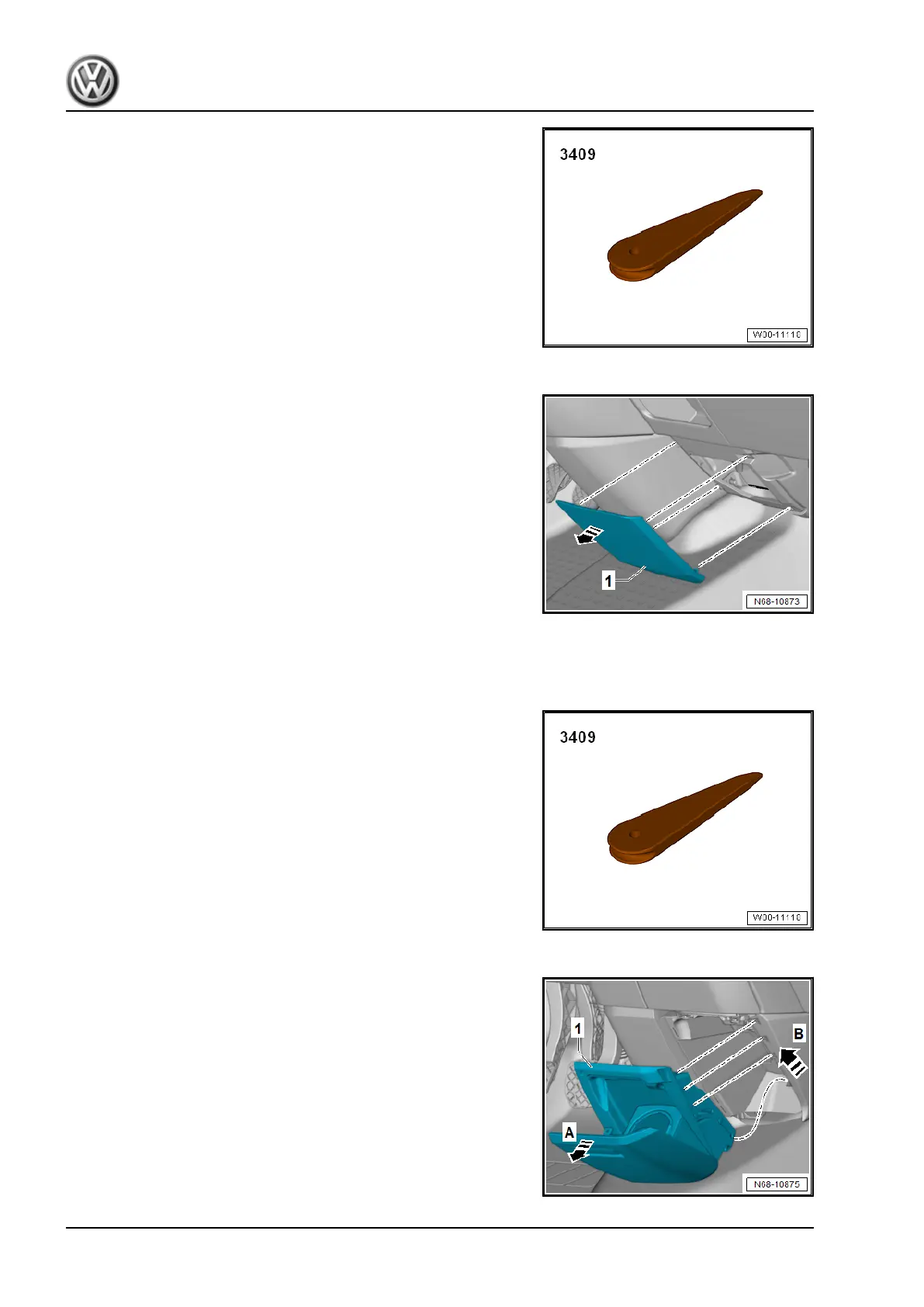

♦ Removal wedge - 3409-
Removing
– Unclip and remove cover -1- in -direction of arrow-.
Installing
Installation is carried out in reverse order.
3.3 Removing and installing centre console
insert
Special tools and workshop equipment required
♦ Removal wedge - 3409-
Removing
– Fold up centre console insert, bottle holder, -1- in direction of
arrow -A-.
– Detach retaining clips on side of centre console insert -1- from
centre console in direction of -arrow A-.
– Unclip and remove centre console insert -1- from centre con‐
sole in direction of -arrow B-.
Installing
Installation is carried out in reverse order.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
62 Rep. gr.68 - Interior equipment
