1.5 Assembly overview - storage compart‐
ment in headliner
⇒ “1.5.1 Assembly overview - storage compartment in headliner,
Multivan with interior monitoring”, page 26
⇒ “1.5.2 Assembly overview - storage compartment in headliner,
vehicles with camping equipment”, page 27
⇒ “1.5.3 Assembly overview - storage compartment in headliner,
Transporter”, page 28

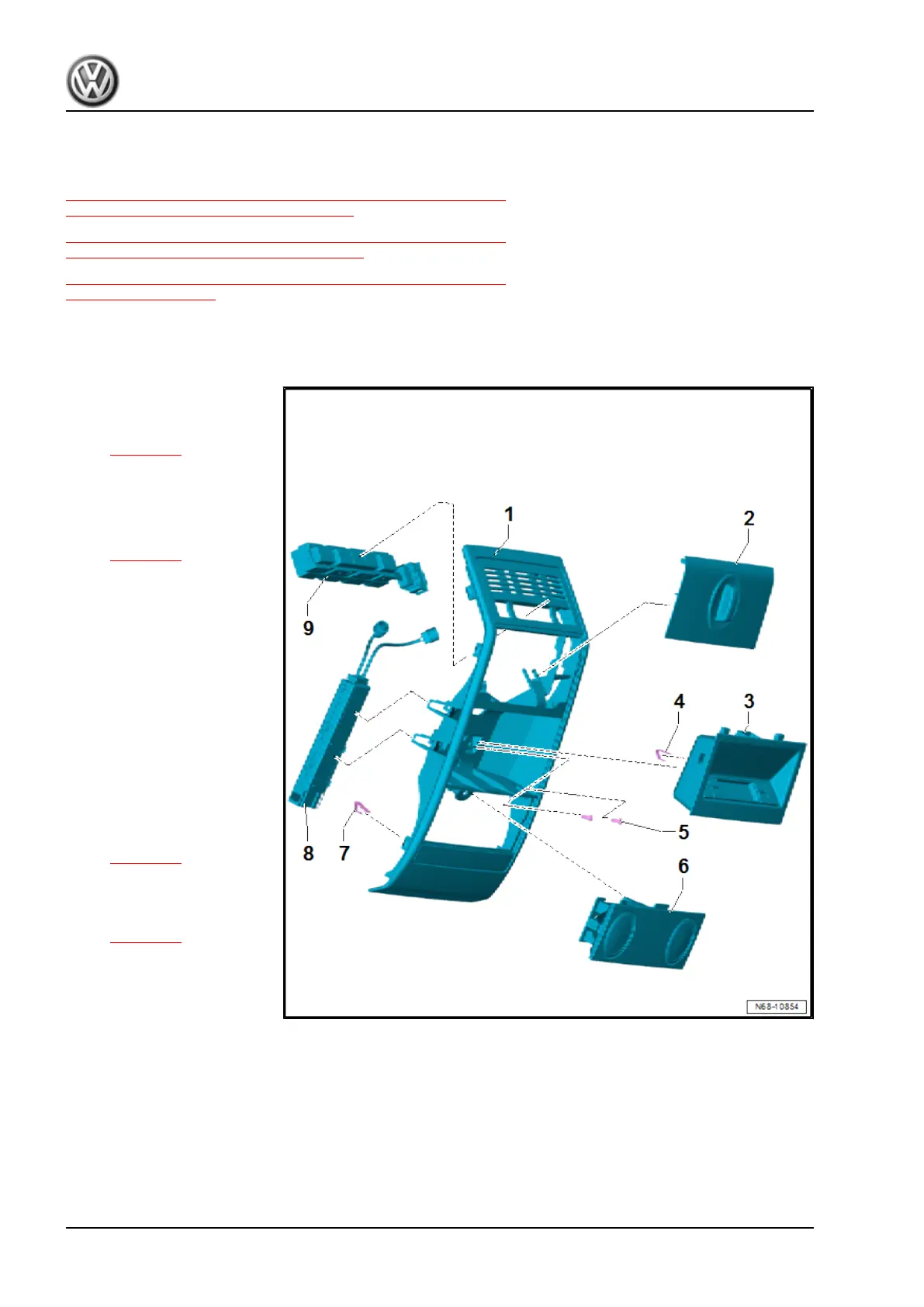

1.5.1 Assembly overview - storage compartment in headliner, Multivan with inte‐
rior monitoring
1 - Frame for storage compart‐
ment in headliner
❑ Removing and installing
⇒ page 36
2 - Switch for sliding/tilting sun‐
roof
3 - Roof display unit - J702-
❑ Removing and installing
⇒ page 36
4 - Retaining clips
❑ Qty. 4
5 - Bolts
❑ Qty. 2
❑ 2 Nm
6 - Front interior light - WX1-
7 - Retaining clip
❑ Qty. 6
8 - Interior monitor send and
receive module 1 - G303- with
tow-away protection control
unit - J529-
❑ Removing and installing
⇒ page 36
9 - Switch for front interior light/
reading light
❑ Removing and installing
⇒ page 36
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
26 Rep. gr.68 - Interior equipment
